MAX-QS

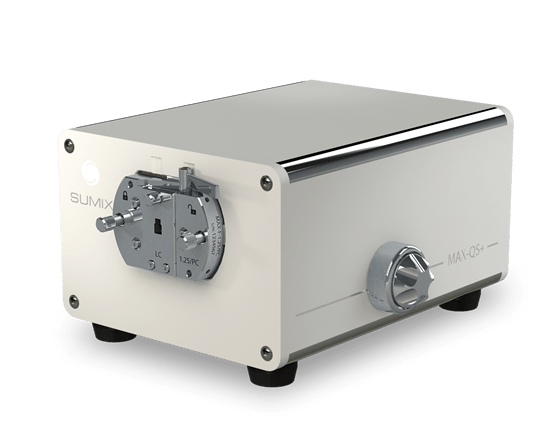

MAX-QS is a white-light and phase-shift interferometer for inspection of single fiber ST, FC, SC, LC, MU, E2000 (PC and APC), small format multi-fiber MT-RJ (PC and APC), SMA and special connectors. MAX-QS features portable design and a resolution of 1.1 micron.

NEW The system is also available with autofocus function (optional). Ask for MAX-QS+ system.

The device connects to a laptop or desktop computer via two USB 3.0 cables – for MAX-series and via USB 3.0 cable and 12V DC power adapter – for MAX+ series.

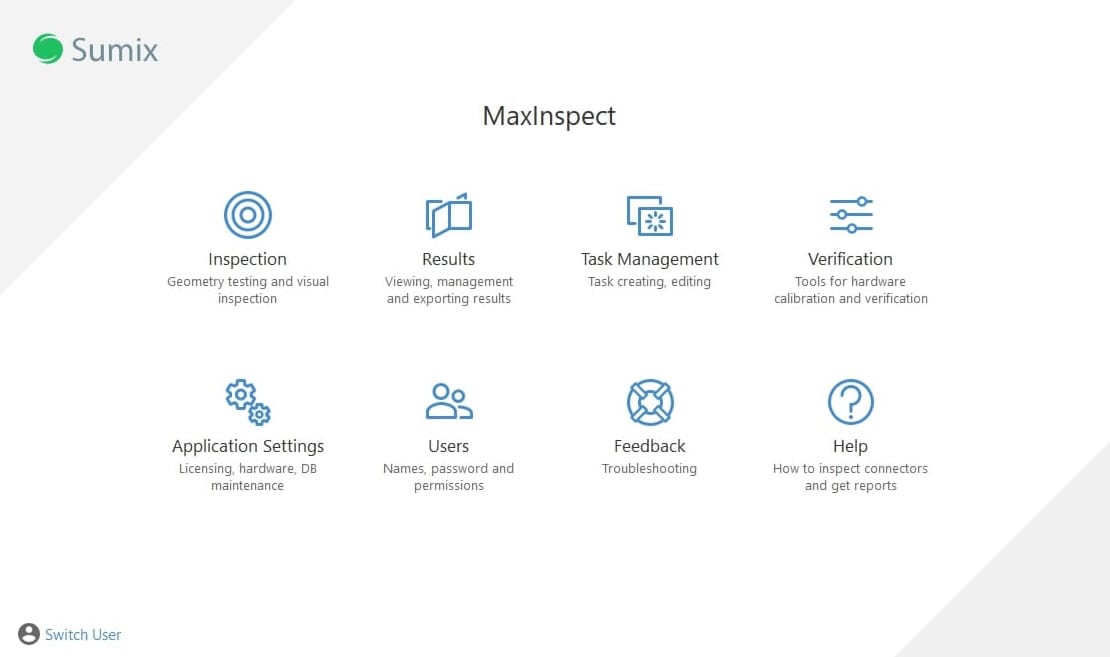

Sumix interferometers are supplied with the industry-leading MaxInspect™ software for interferometric inspection of fiber optic connectors.

Download MAX-QS brochure

Download MAX-QS+ brochure

Features and Benefits

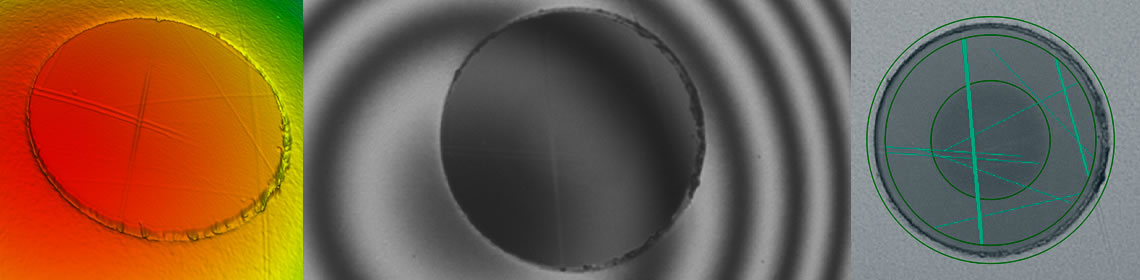

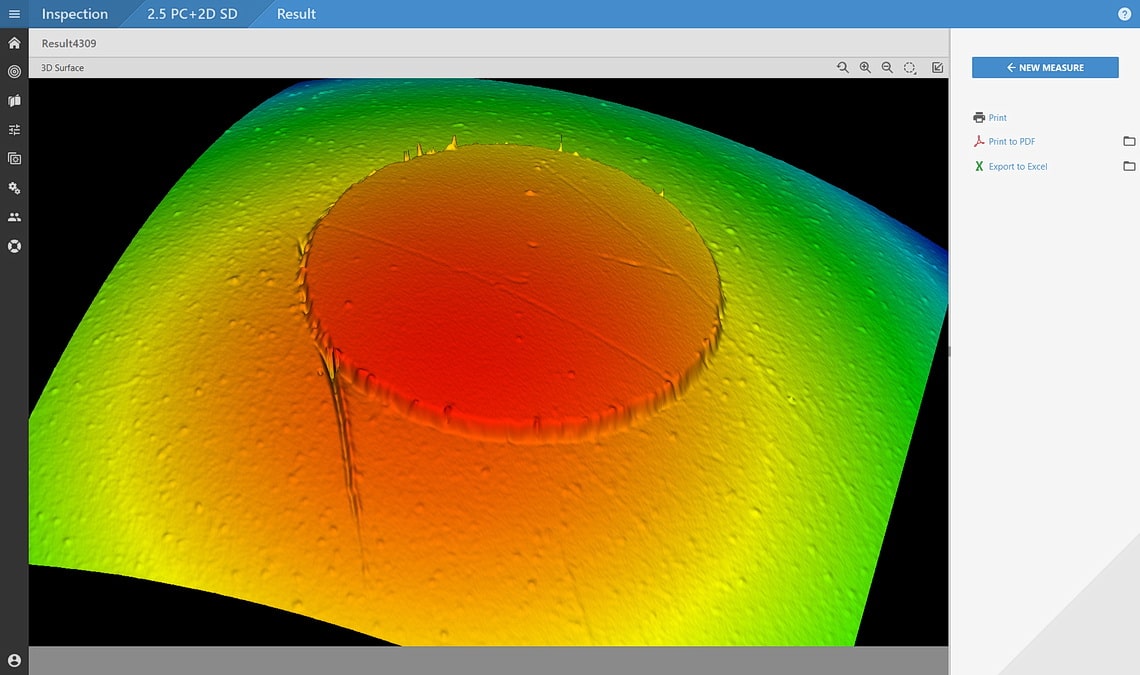

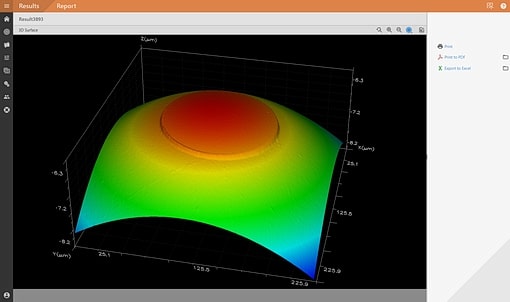

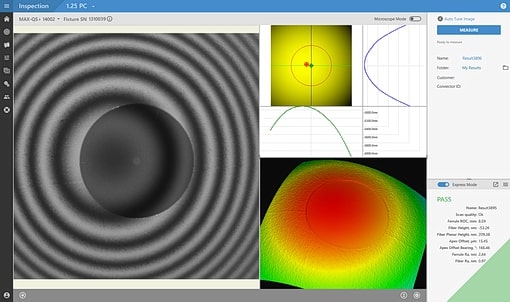

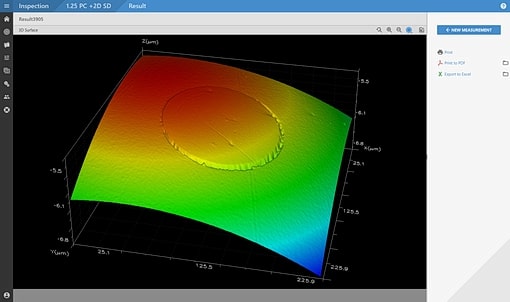

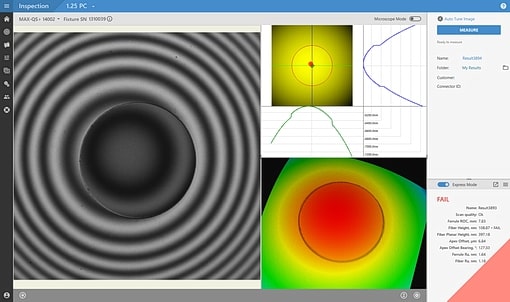

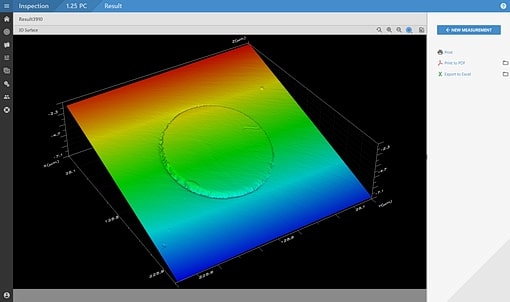

High resolution 2D and 3D surface profiles

Explore surface details as small as 1.1 µm.

New! Autofocus*

Minimize operator’s actions to just one click.
*available with MAX-QS+ modification

Fast measurements

Measure a single fiber connector in 2 seconds or less.

Ergonomic fixture design

Save time with easy ferrule/connector insertion and fixture handling.

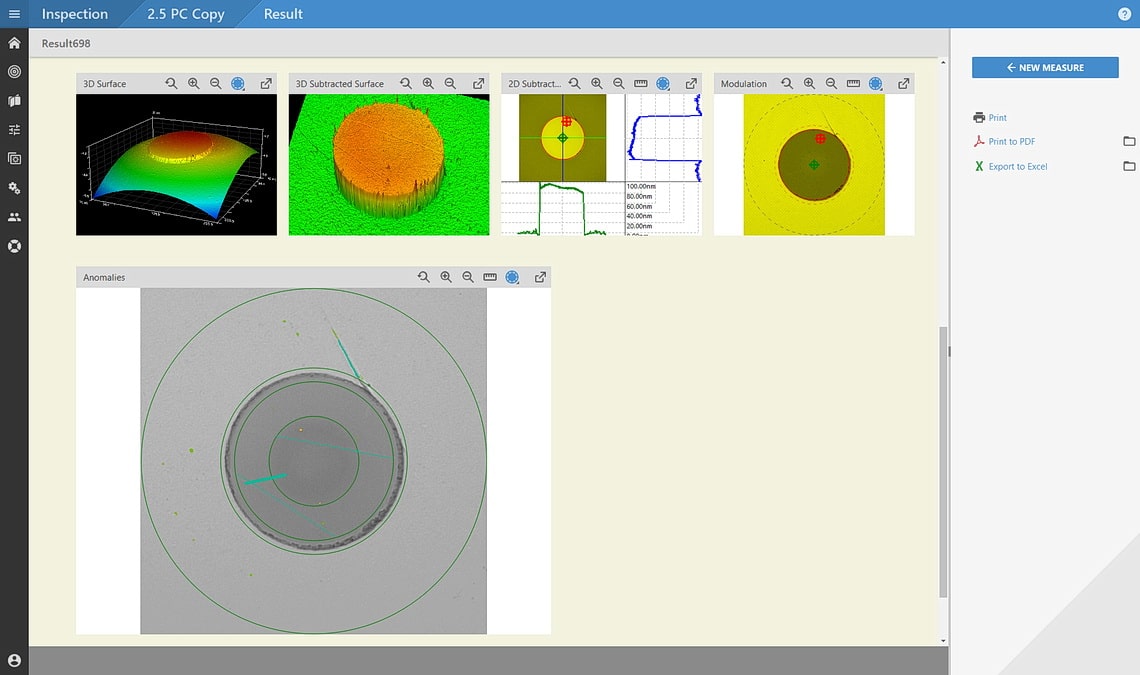

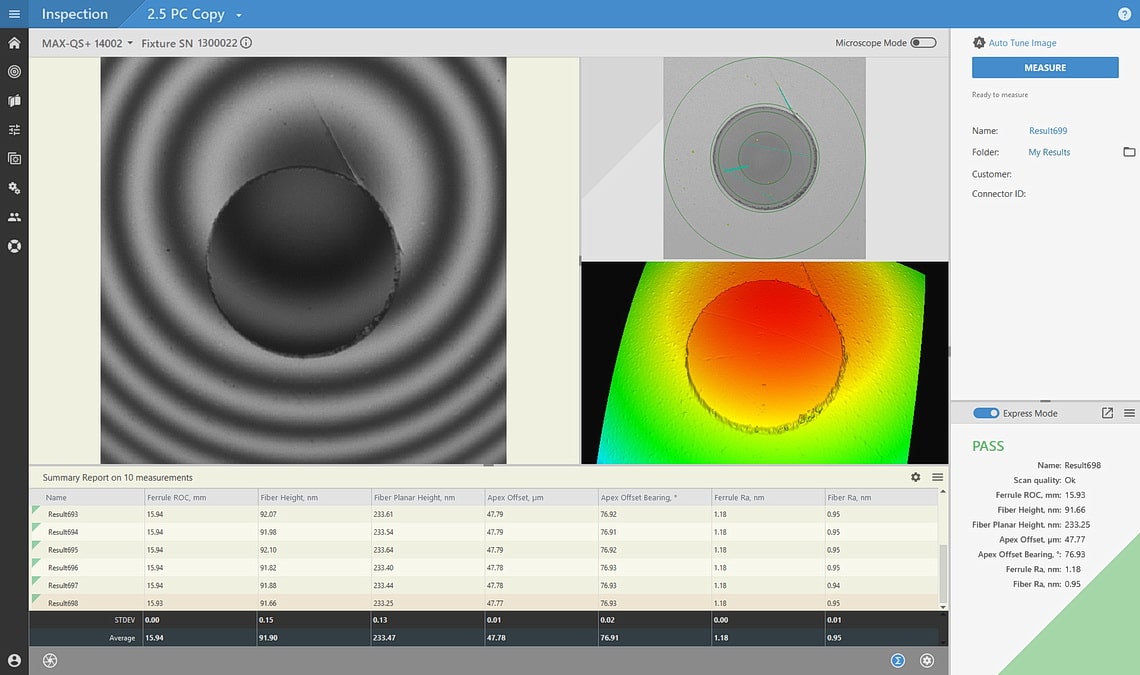

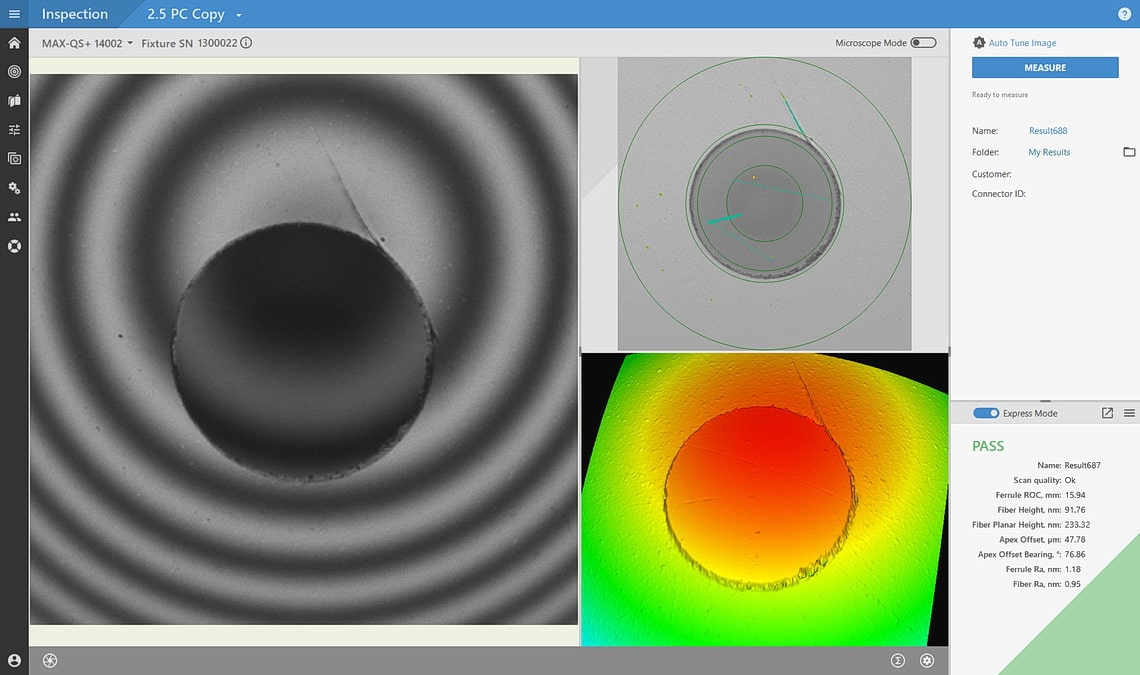

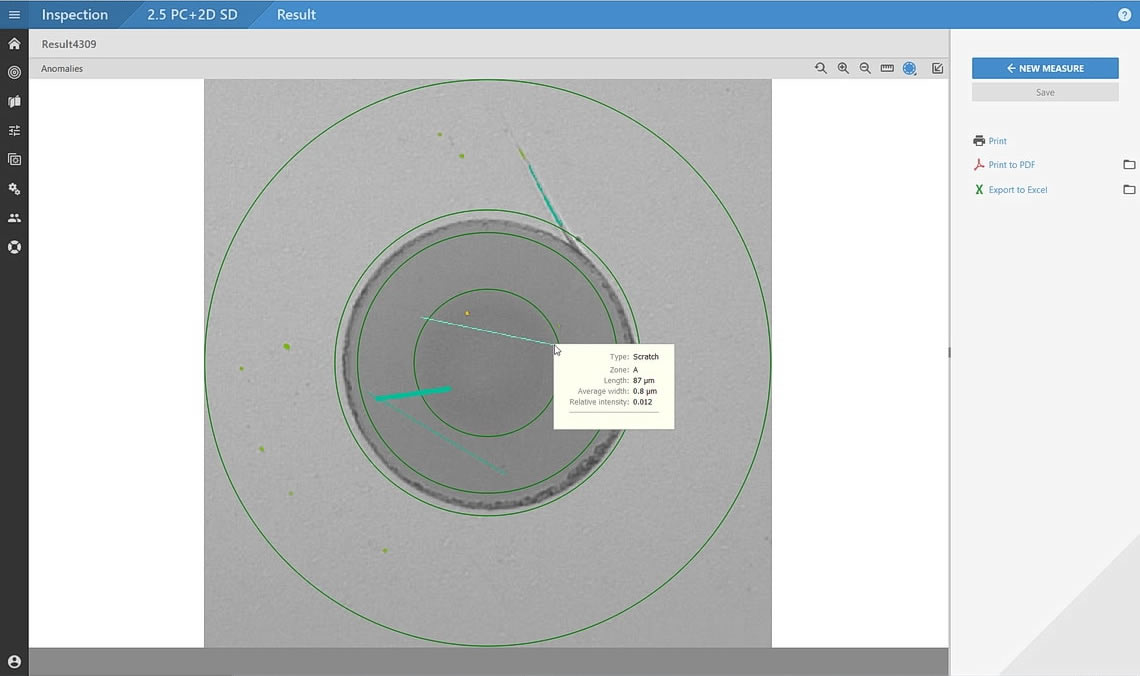

Combined anomalies detection and geometry testing

Speed up inspection and increase work efficiency.

Modern and portable design

Make high quality measurements in the field.

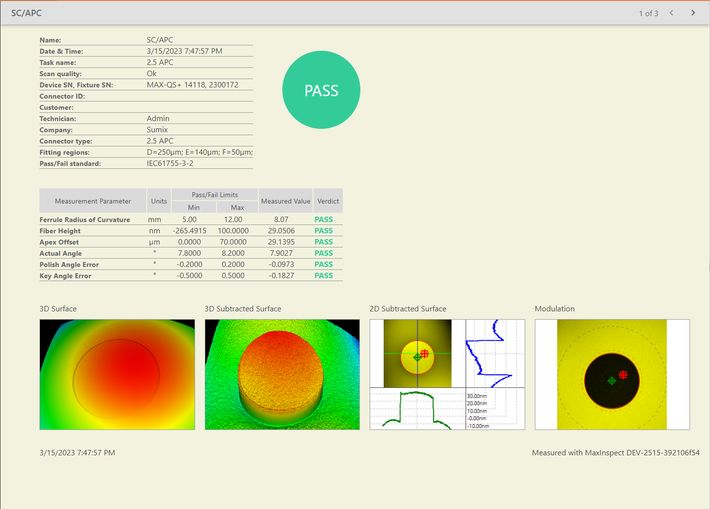

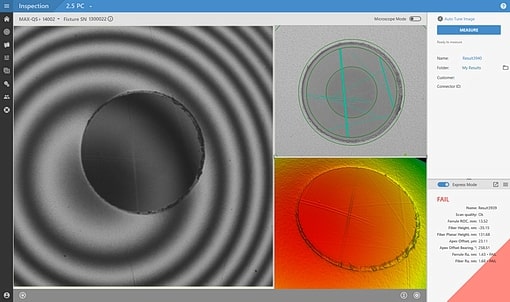

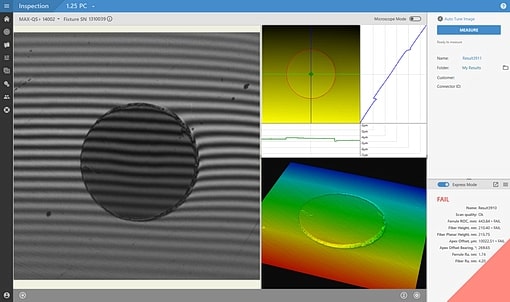

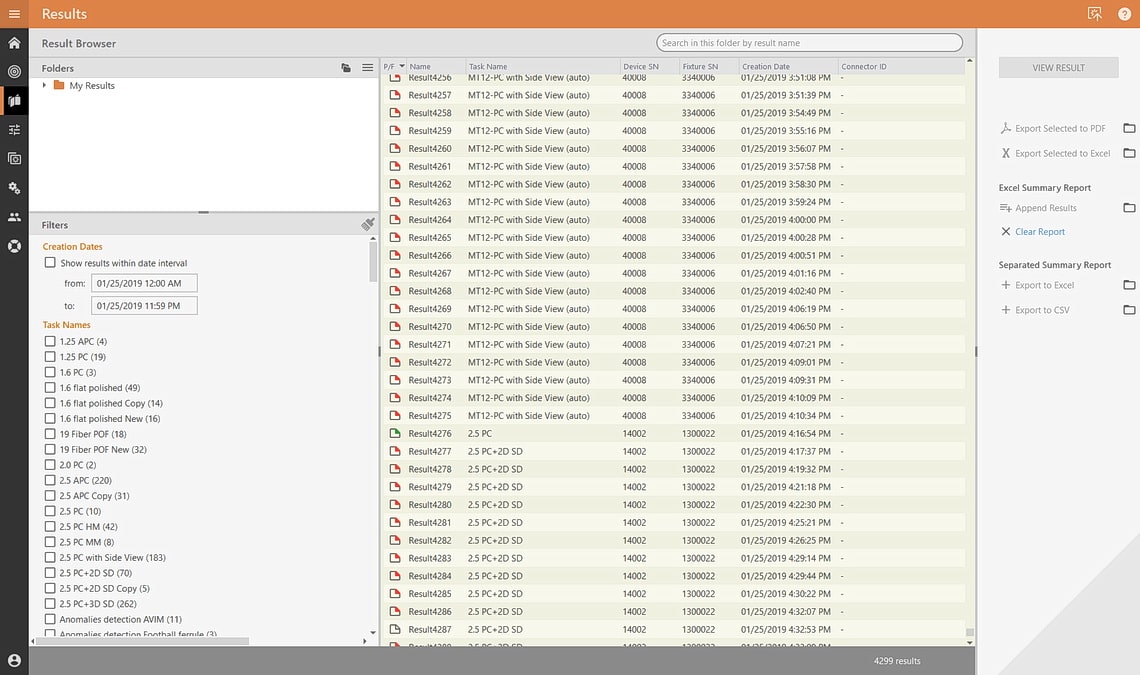

Industry-leading MaxInspect™ automated inspection software

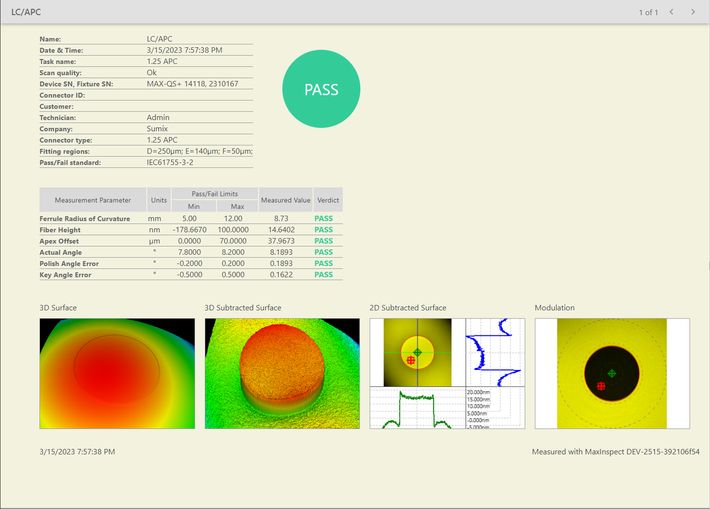

Measure radius of curvature, apex offset, fiber height, core dip, etc.

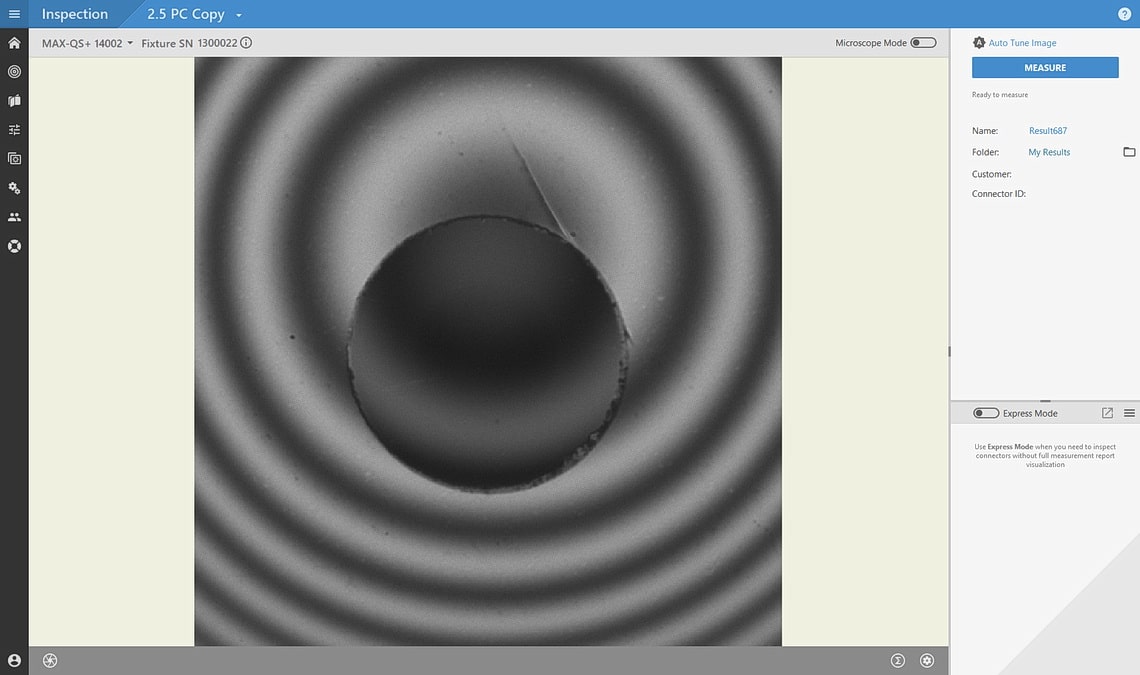

Microscopy mode

Visually inspect connector end face prior to measurement

Compliance to industry standards

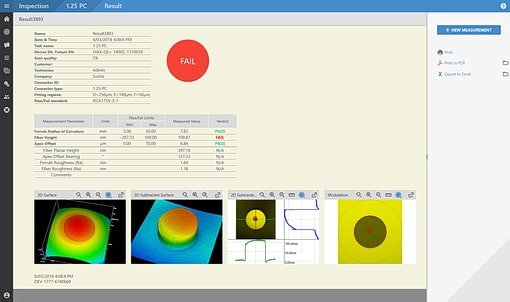

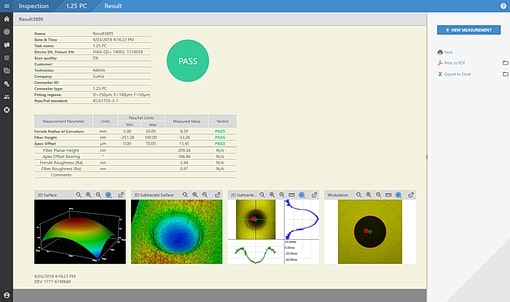

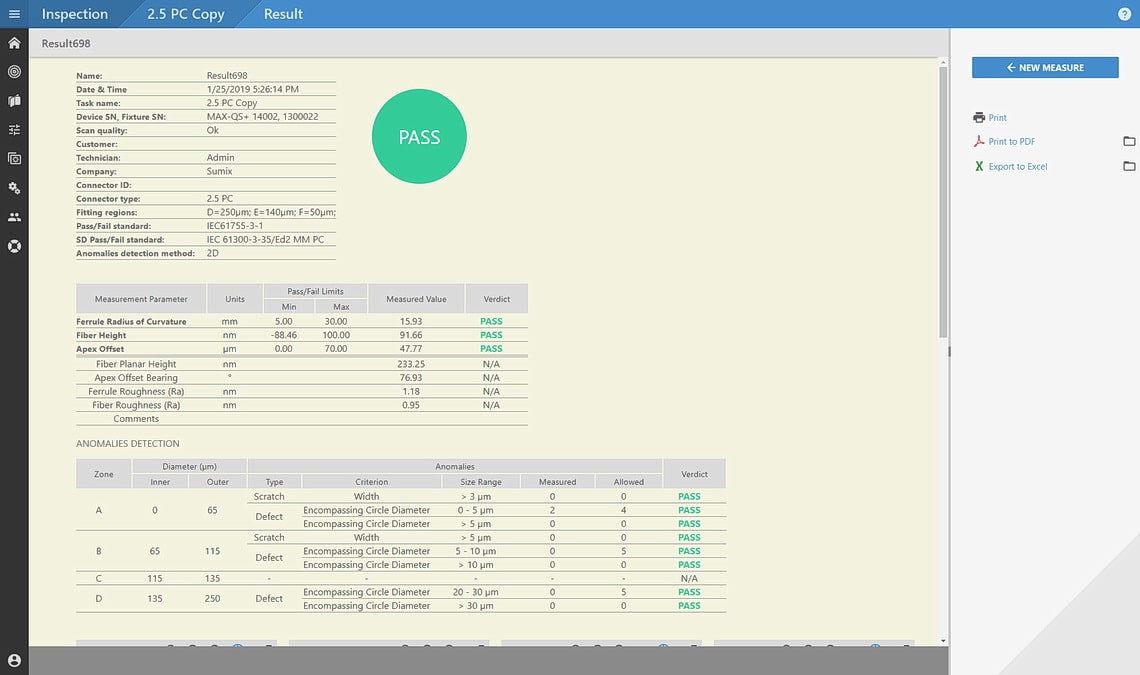

Test per IEC, Telcordia or your own Pass/Fail criteria.

Specification

System

Measurement technique:
non-contact; Michelson interferometry
Lens:
NA = 0.25; reference flatness error < λ/50
Illuminator:
green LED (530 nm)
Field of view:
d = 0.85 mm
Lateral resolution:
1.1 µm
Magnification:
500× (the digital zoom turned off)
Focus:
manual and short range auto - for MAX series;
autofocus - for MAX+ series
Maximum image size:
2590 x 1940 px
Best suitable for connectors/ferrules (PC and APC):
SC, FC, ST, LC, MU, E2000, SMA, MT-RJ

Measurement

Measurement mode:
phase shift and white light
Scanning and calculation time:

Measurement time may vary depending on computer performance and connector end face shape.
2* sec
* 64 MHz, standard single fiber connector.
Repeatability C.F.*:
*Values calculated from 30 consecutive measurements without interaction on connector between measurements (connector fixed).
ROC: 0.1 %
Fiber Height: 0.3 nm
Angles: 0.0001 deg
Apex Offset: 0.02 µm
Repeatability C.R.*:
*Values calculated from 30 consecutive measurements with removing and inserting connector between measurements (connector reloaded).
ROC: 0.16 %
Fiber Height: 0.4 nm
Angles: 0.006 deg
Apex Offset: 0.50 µm

Recommended Environment

Temperature:
+20°C… +24°C
Pressure:
700 – 850 mm mercury
Humidity:
5 – 75%, non-condensing

Dimensions and Weight

Dimensions (H × W × L):
103 × 137 × 183 mm (4.06 × 5.39 × 7.2 inches)
Weight:
3.9 kg (8.6 lbs)

Power

Power consumption:
5 V, 0.9 A maximum, charged from PC via one or two USB 3.0 cables

System Requirements

Recommended:
Windows 10, Windows 7 Service Pack 1
Intel Core i7
4GB RAM or higher
Built-in Intel USB 3.0 controller
Microsoft Excel 2007 or higher

Accessories

Connector Fixtures

MAX-F-1.25/PC base fixture and MAX-F-1.25/APC base fixture with various key adapters

1.25/PC and 1.25/APC base fixtures with key adapters for measuring LC and MU ferrules and connectors with PC and APC end face.

MAX-F-2.5/PC base fixture and MAX-F-2.5/APC base fixture with various key adapters

2.5/PC and 2.5/APC base fixtures with key adapters for measuring SC, FC-R, FC-N, ST ferrules and connectors with PC and APC end face.

MAX-F-1.6/PC

1.6/PC ferrule fixture for measuring 1.6 mm ferrules with PC end face (pin terminus and socket terminus).

MAX-F-2.0/PC

2.0/PC connector fixture for measuring 2.0 mm connectors with PC end face.

SMA
MAX-F-SMA/PC

3.2/SMA connector fixture for measuring SMA 905 and SMA 906 connectors.

1.25/PC-Arinc
MAX-F-1.25/APC-Ar

1.25/APC connector fixture for measuring 1.25 mm ARINC 801 connectors with APC end face (with 30° key).

MAX-F-1.25/APC-LC-D

LC/APC connector fixture for measuring LC Duplex connectors with APC end face.

MAX-F-1.25/PC-LC-D

LC/PC connector fixture for measuring LC Duplex connectors with PC end face.

MAX-F-E2000/PC

E2000/PC connector fixture for measuring E2000 connectors with PC end face.

MAX-F-E2000/APC

E2000/APC connector fixture for measuring E2000 connectors with APC end face.

LC/PC-Duplex
MAX-F-1.25/PC-MU-D

MU/PC connector fixture for measuring MU Duplex connectors with APC end face.

LC/PC-Duplex
MAX-F-1.25/APC-MU-D

MU/APC connector fixture for measuring LC Duplex connectors with PC end face.

MAX-F-MTRJ/PC

MTRJ/PC ferrule fixture for measuring MT-RJ ferrules with PC end face.

MAX-F-MTRJ/APC

MTRJ/APC ferrule fixture for measuring MT-RJ ferrules with APC end face.
