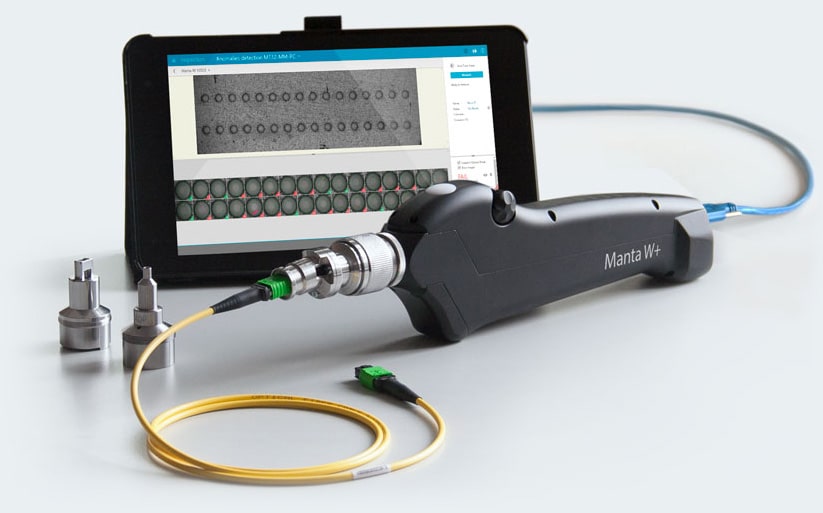

SMX-Manta-W+ Probe

Manta-W+ is a revolutionary handheld microscope primarily designed for testing of MTP/MPO and SMA connections.

The whole MTP/MPO connector is tested in just one scan.

Featuring resolution of a benchtop microscope, the probe gives the possibility to check multi-fiber, SMA and single fiber connectors in the field. Manta-W+ can be used for visual inspection of the connector end face for scratches, defects and contamination, as well as for automatic Pass/Fail testing based on IEC standards.

Features and Benefits

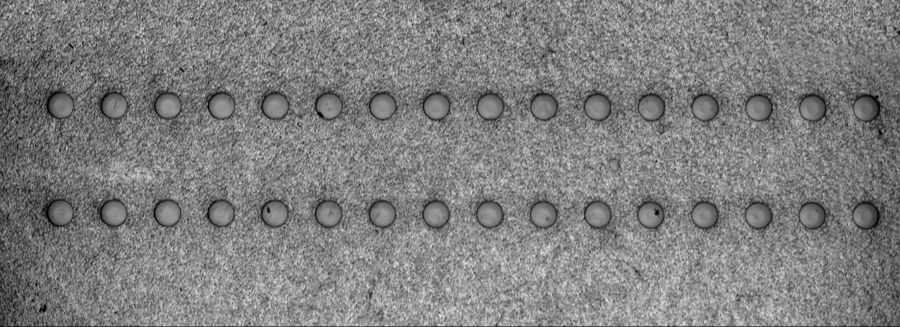

Large field of view (4.1 x 3.0 mm)

Test MTP/MPO connectors with up to 72 fibers in just one scan, inspect entire ferrule surface including guide holes if needed. Check the whole SMA connector endface in one shot.

Compact and ergonomic design

Use the probe as a handheld or a desktop unit.

Autofocusing

Push the button and get results.

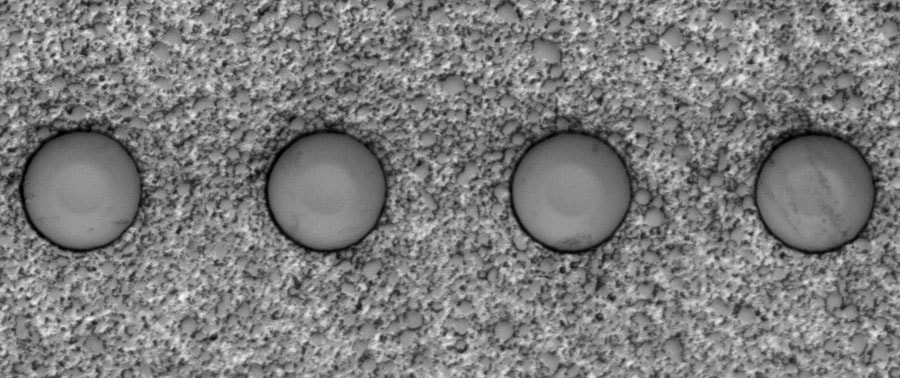

Detailed high-resolution picture

Enjoy high accuracy testing with 1.8 µm resolution and 0.75 µm defect size detection capability perfect for testing both multi-fiber and single fiber connectors.

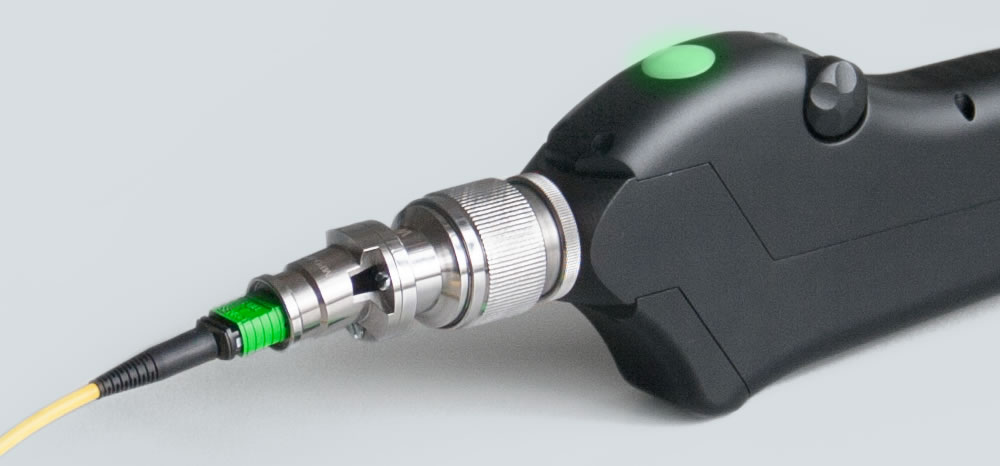

Wide variety of tips

Inspect single fiber, multi-fiber, SMA, OptiTip/OptiTap connectors and other military connectors, both the patch cord and bulkhead side of fiber interconnect.

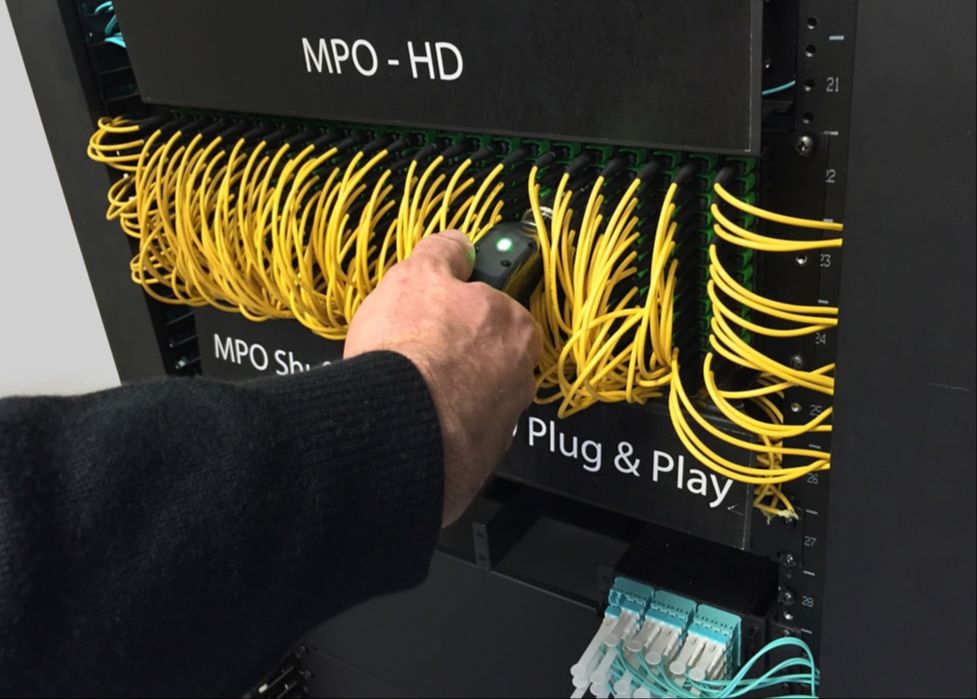

Extended working distance

Get inside patch panels to test MTP/MPO and other connectors.

Pass/Fail LED indicator

See Pass/Fail result without looking at your tablet.

Software

The SMX-Manta-W probe is used with MaxInspect™ software package for visualization, capturing and detection/analysis of connector defects.

Automatic inspection mode

Fast testing procedure saves you time and increases productivity.

Pass/Fail criteria

The software is provided with predefined Acceptance Criteria as standardized by the International Electrotechnical Commission (IEC) for single mode and multi-mode connectors or you can utilize YOUR own Pass/Fail criteria for your specific needs/applications

Detailed analysis of defects

Want to know types, dimensions and other parameters of detected defects? Explore details with MaxInspect™ software.

Detailed inspection report

Store and print your testing results. Mine your data.

Specification

General

Field of view:
4.1 × 3.0 mm
Defect size detection:
0.75 µm
Optical resolution:
1.8 µm
Magnification:
260×
Focus:
auto
Light source:
royal blue LED, 447.5 nm
Camera type:
digital, USB3.0
Sensor type:
monochrome, 4096 × 3000, 1’’ CMOS
Live image:
4096 × 3000, 15 fps full resolution
Power source:
USB 3.0 port of PC
Cable:
USB 3.0, detachable
Dimensions (H × W × L):
70 × 28 × 246 mm (2.76 × 1.1 × 9.69 inches)
Weight:
435 g (0.96 lbs)
Housing material:
aluminum
Barrel material:
stainless steel
Operating temperature:
+5 to +35°C
Compatible with:
desktop PC, laptop, tablet

PC System Requirements

Operating system:
Windows 7 Service Pack 1, Windows 10
For viewing measurement results:
Microsoft™ Excel® 2010 or higher
Recommended configuration
High speed, faster image processing, detection, analysis and reporting
Minimal configuration
Reduced speed, slower image processing and detection/analysis of connector defects
Processor:
Intel Core i5 or higher
Intel Core i3
RAM:
4 GB
2 GB
Video card:
Any with 24 bit True Color
Any with 24 bit True Color
Hardware interface:
Intel integrated USB 3.0 Host Controller.
At least one USB 3.0 port for connection
Intel integrated USB 3.0 Host Controller.
At least one USB 3.0 port for connection
Hard Drive:
300 Mb or more
300 Mb
Performance:
500 Mflops or more
400 Mflops

Tablet system requirements

Operating system:
Windows 10
Recommended configuration
Minimal configuration
Processor:
Intel Core i7
Intel Core i5
RAM:
4 GB
2 GB
Screen resolution:
1280 × 800 px or higher
1024 × 768 px
Display size:
10" or more
8"
Hardware interface:
USB 3.0
USB 3.0

Tips and Accessories



MNT-MPO-PC-F-L

for MTP/MPO connectors
PC polishing
bulkhead side (in adapters)



MNT-MPO-APC-F-L

for MTP/MPO connectors
APC polishing
bulkhead side (in adapters)



MNT-MPO-PC-M-L

for MTP/MPO connectors
PC polishing
patch cord side



MNT-MPO-APC-M-L

for MTP/MPO connectors
APC polishing
patch cord side



MNT-MT-PC-L

for MT ferrules
PC polishing



MNT-MT-APC-L

for MT ferrules
APC polishing

Tips for SMA and single fiber connectors and other accessories  you'll find here

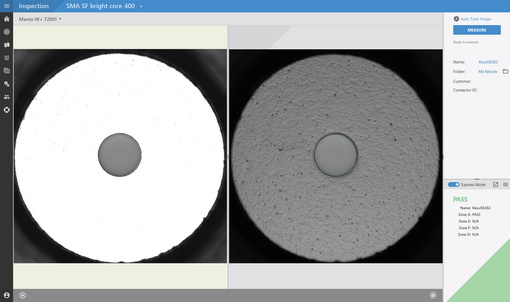

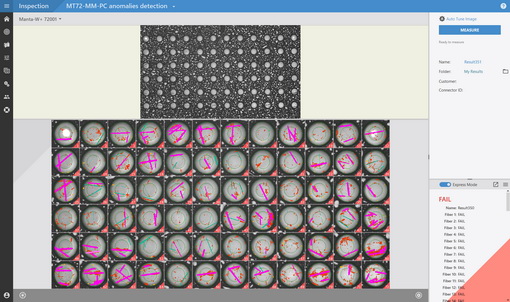

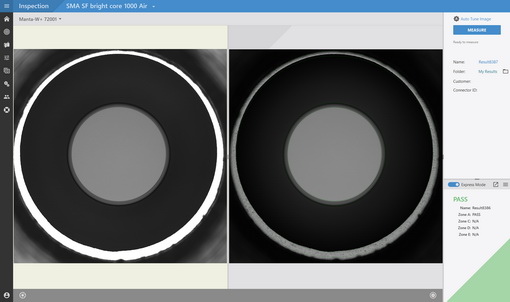

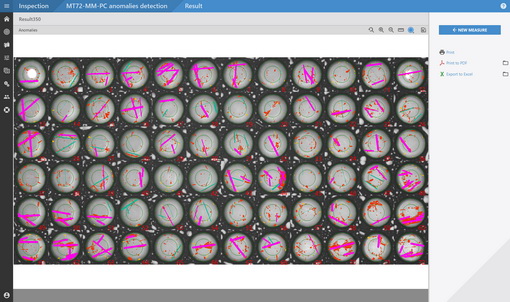

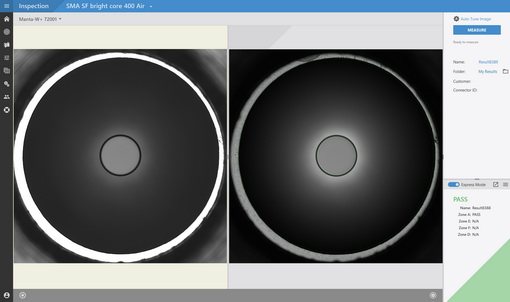

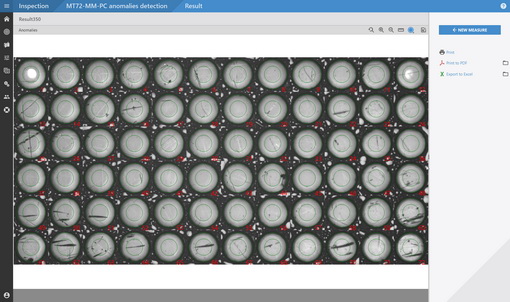

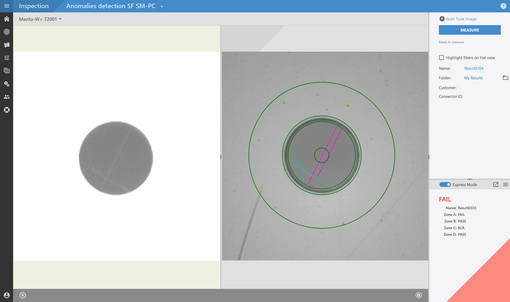

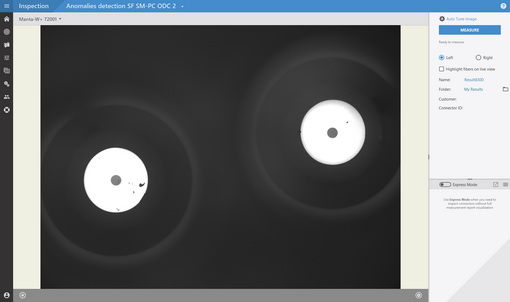

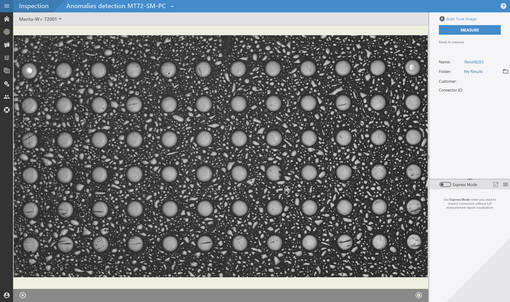

Sample Images
