SMX-Manta+V2 Microscope

Multi-fiber inspection
Single fiber inspection
Autofocus
PASS/FAIL verdict
Scratch detection
High resolution
Industry standards

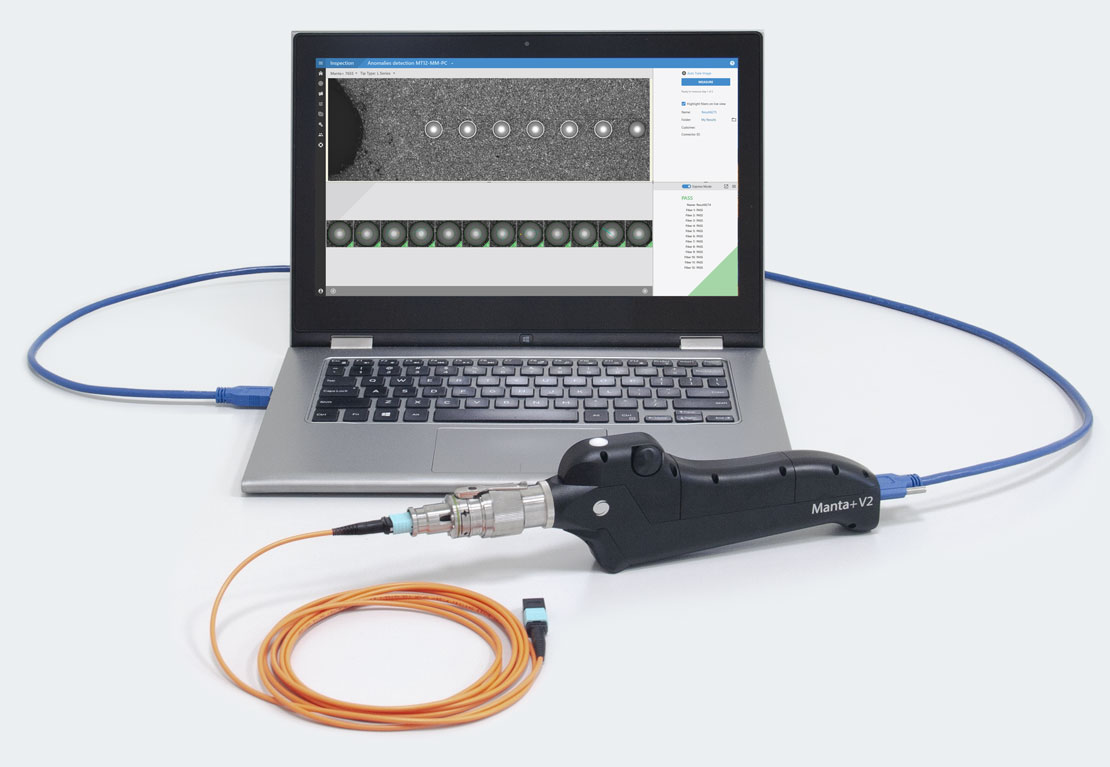

Connects to tablet or laptop

SMX-Manta+V2 is a portable microscope probe designed for inspection of all types of single and multi-fiber optical connectors, patch cords and bulkhead, included but not limited to: MT, MPO, LC, FC, SC, E2000™, PRIZM, QSFP, ARINC, MIL Spec termini, ODC12, High-power SMA, Avim, mini-Avim and more.

The probe can be used for visual inspection of the connector end-face for scratches, defects and contamination and for automatic Pass/ Fail testing. The field of view of Manta+V2 is ideal for large fiber military connectors and enables to inspect multi-fiber connectors in two scans each taking around 2 seconds.

Applicable for field use, lab and manufacturing, the Manta+V2 is an essential tool to verify quality of the produced fiber optic connectors, perform receiving inspection, prevent and troubleshoot network failures.
SMX-Manta+V2 is an upgraded model of SMX-Manta+ with improved reliability and usability.

Download SMX-Manta+V2 brochure

Product Overview

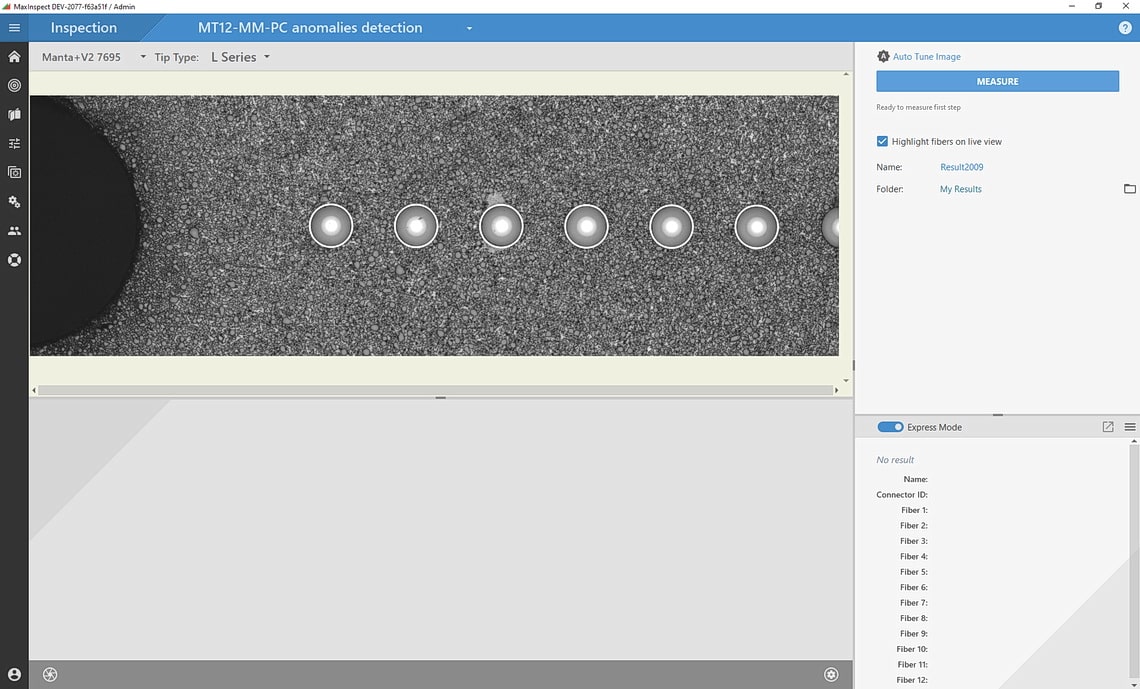

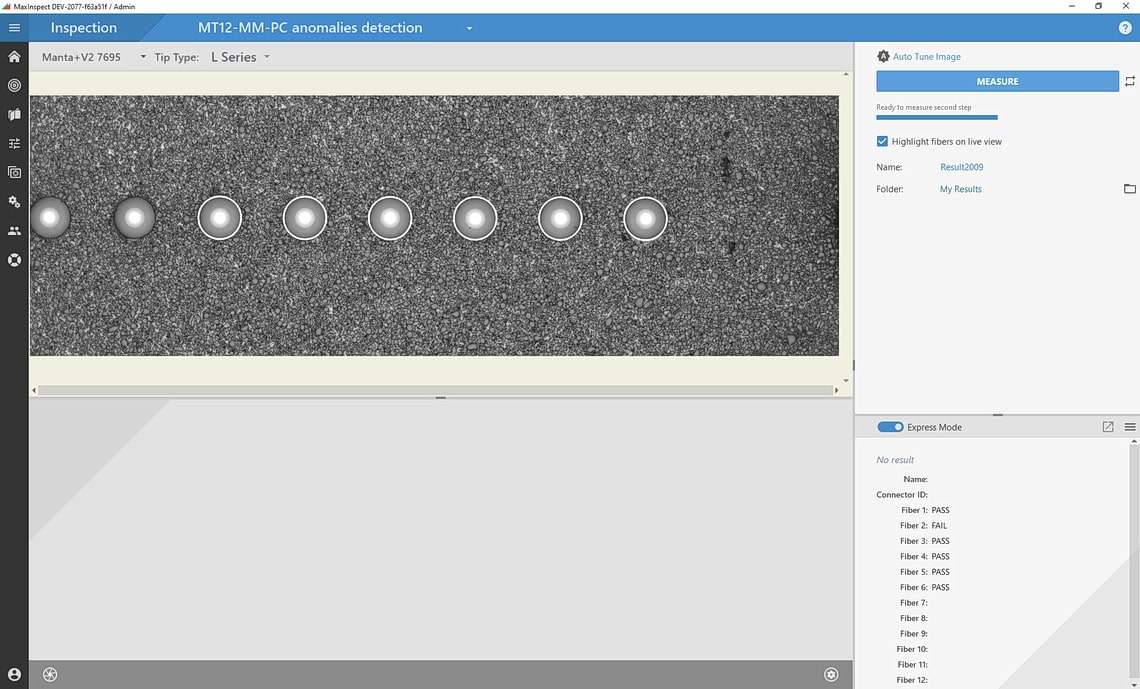

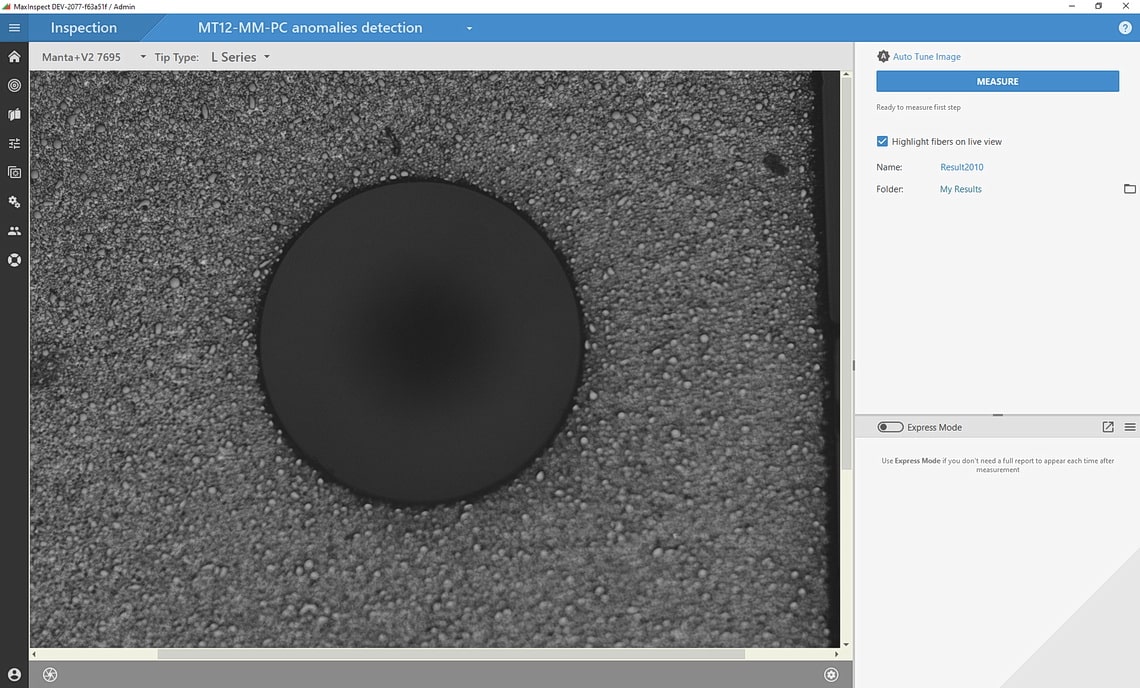

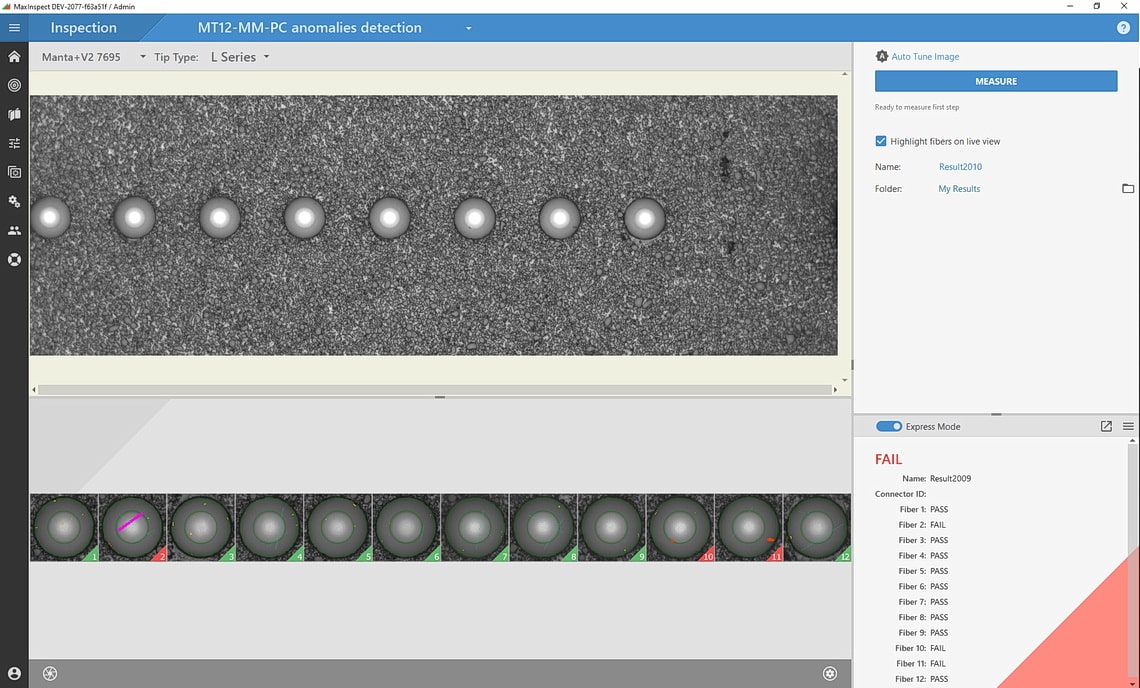

Automatic inspection mode

Fast testing procedure saves you time and increases productivity.

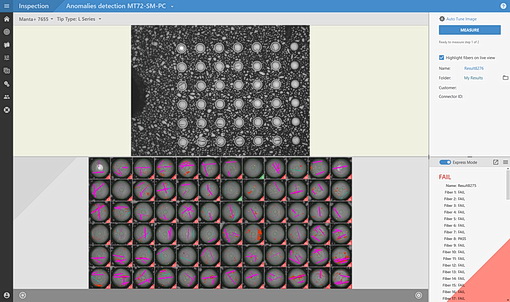

Pass/Fail criteria

The software is provided with predefined Acceptance Criteria as standardized by the International Electrotechnical Commission (IEC) for single mode and multi-mode connectors or you can utilize YOUR own Pass/Fail criteria for your specific needs/applications

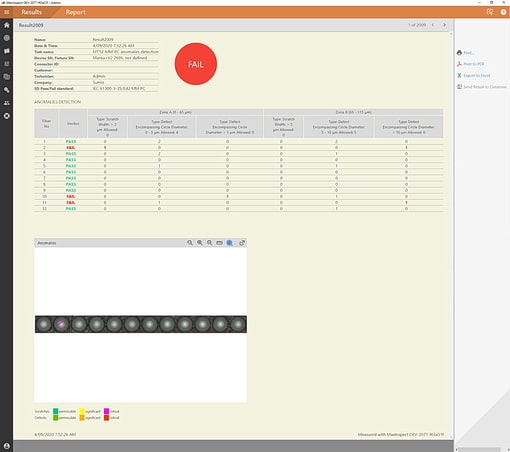

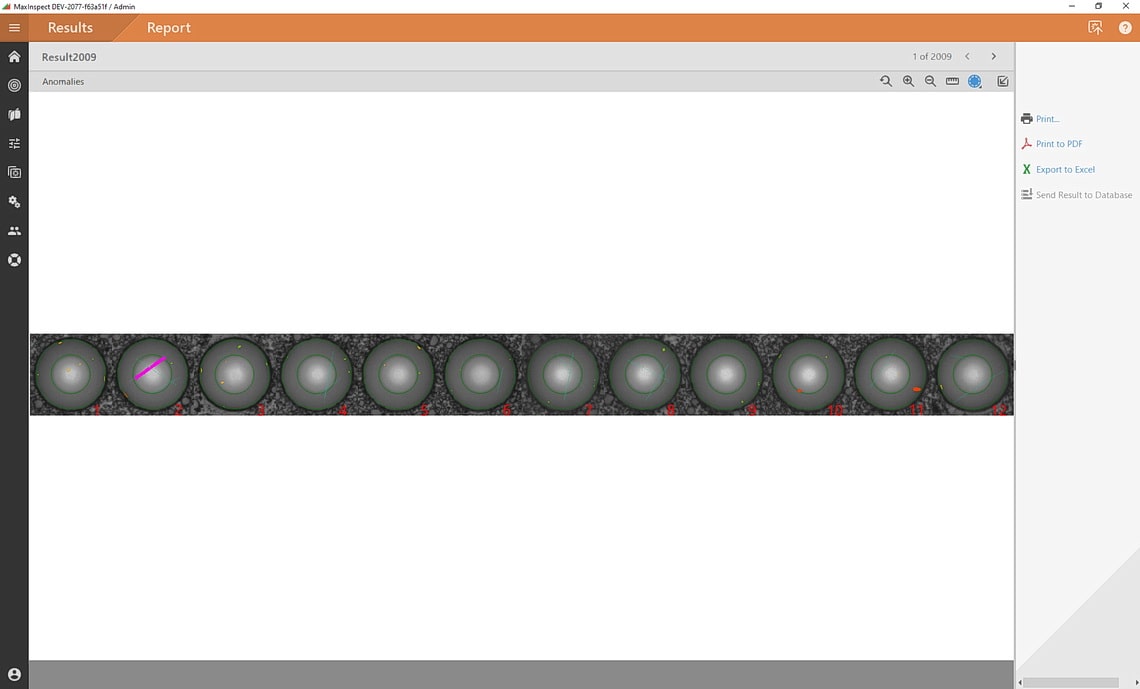

Detailed analysis of defects

Want to know types, dimensions and other parameters of detected defects? Explore details with MaxInspect™ software. Store and print your testing results. Mine your data.

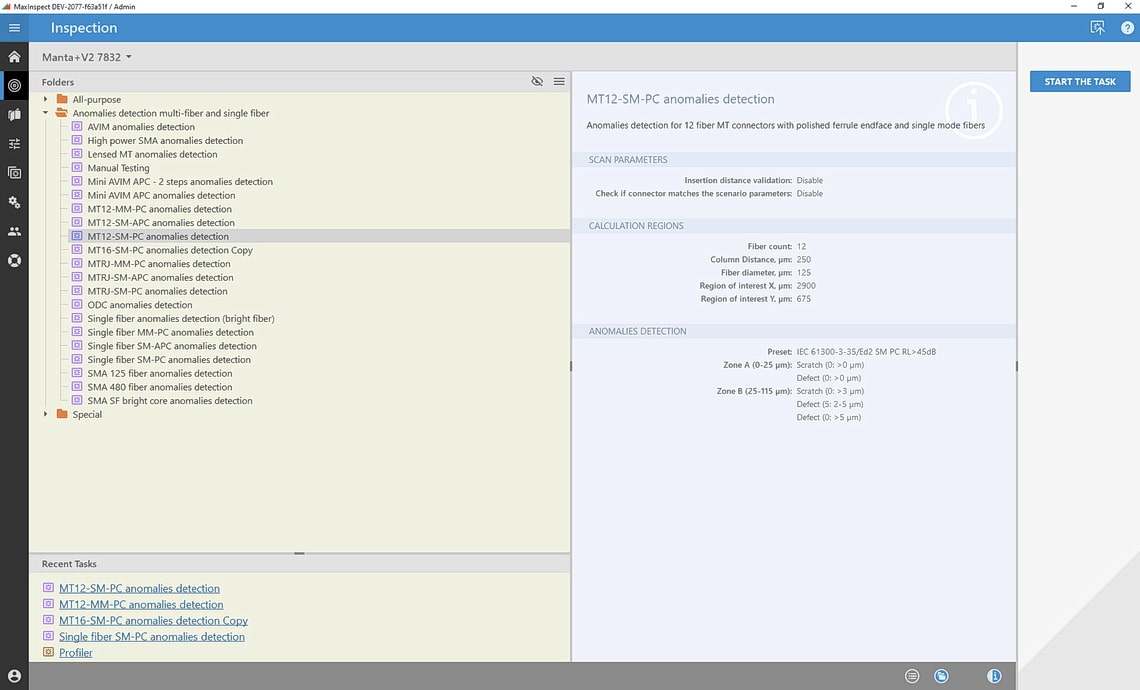

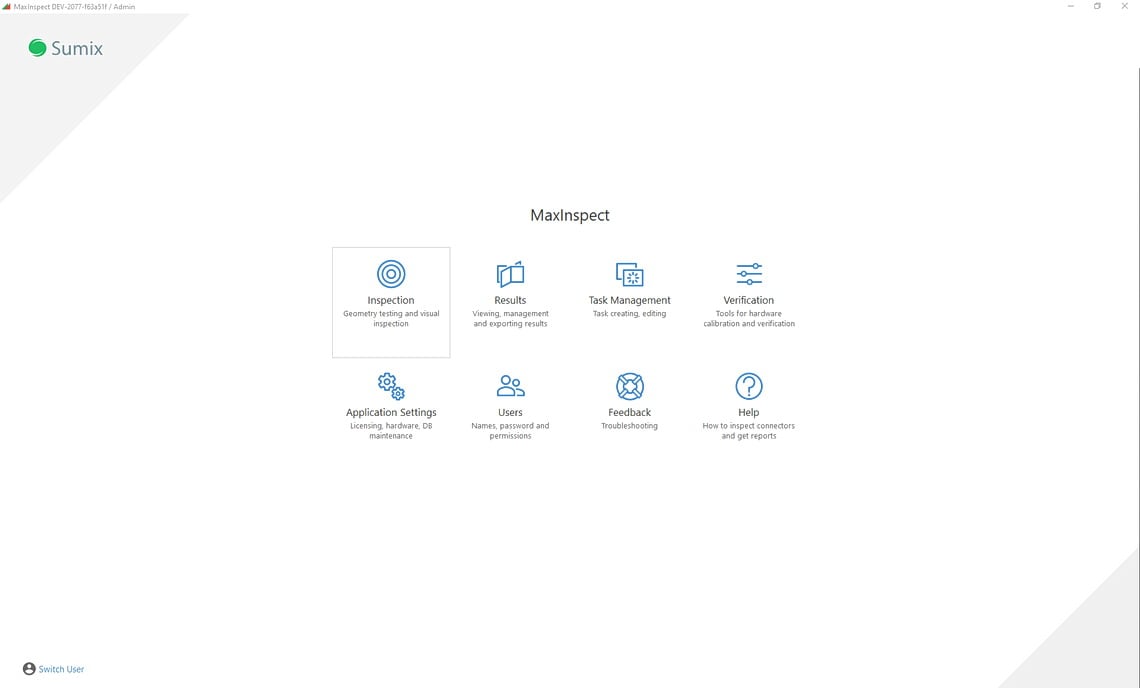

Software

More images you can find here

Features

Large field of view (2.4 × 1.8 mm)

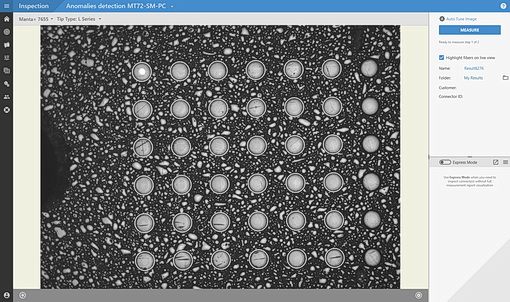

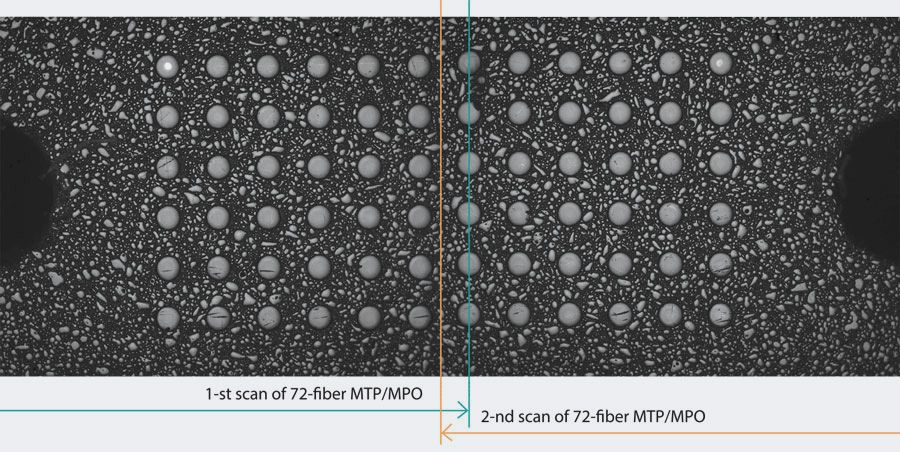

Test MTP®/MPO connectors with up to 72 fibers in just two scans, inspect entire ferrule surface including guide holes if needed. Check the whole SMA connector endface in one shot.

Sumix

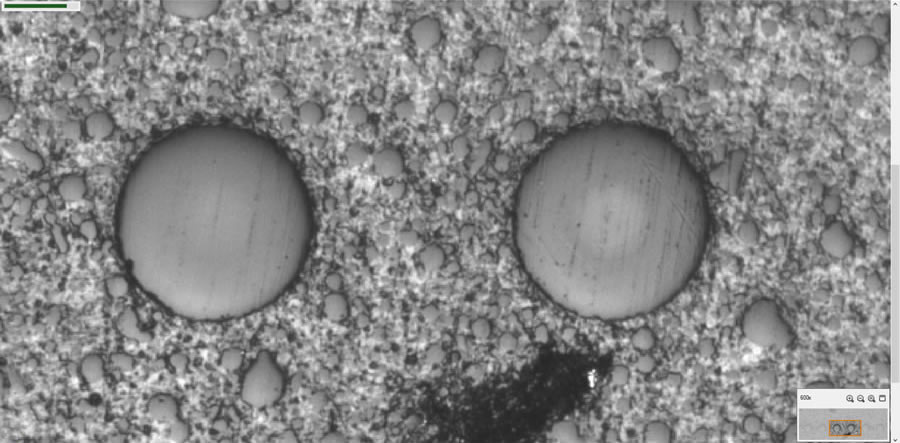

Detailed high-resolution picture

Enjoy high accuracy testing with 0.75 μm defect size detection capability perfect for testing both multi-fiber and single fiber connectors.

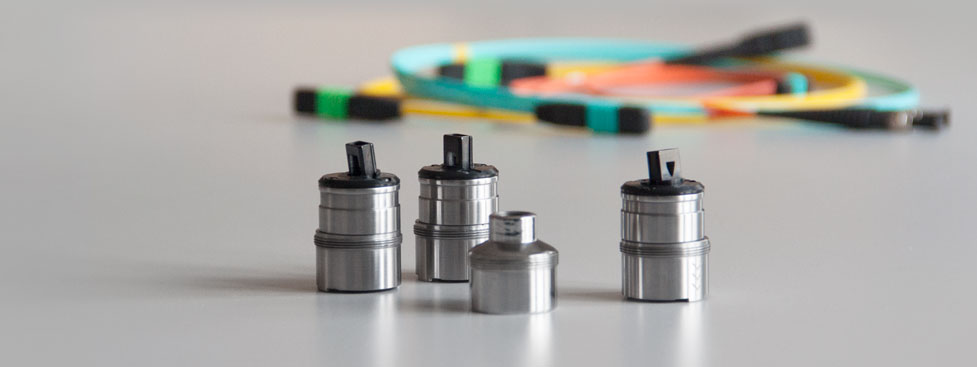

Wide variety of tips

Inspect single-fiber, multi-fiber, SMA and other military connectors, both the patch cord and bulkhead side of fiber interconnect.

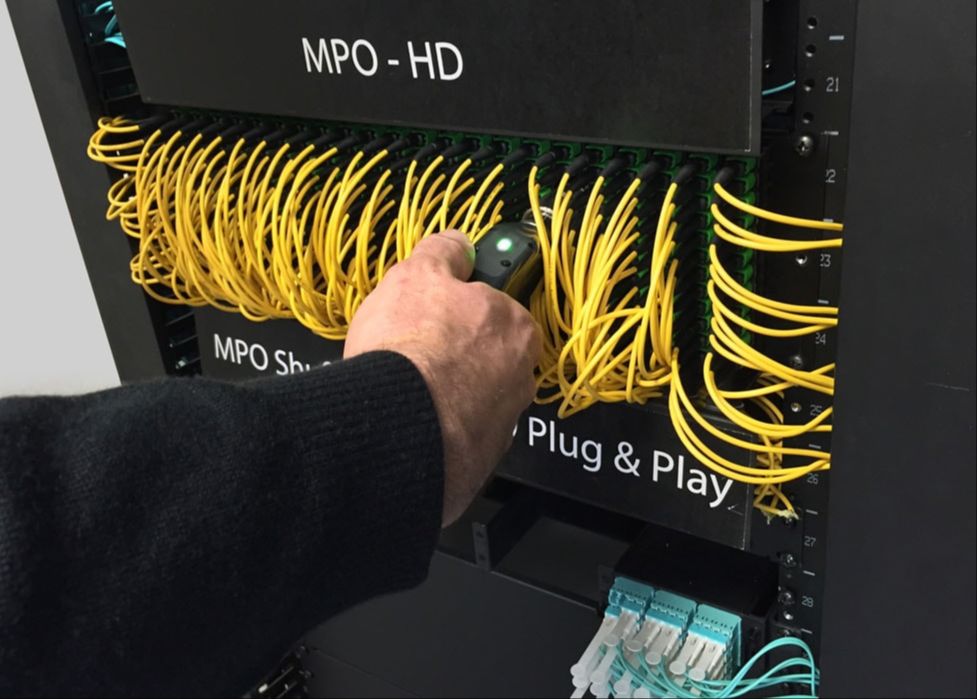

Extended working distance

Get inside patch panels to test MTP®/MPO and other connectors.

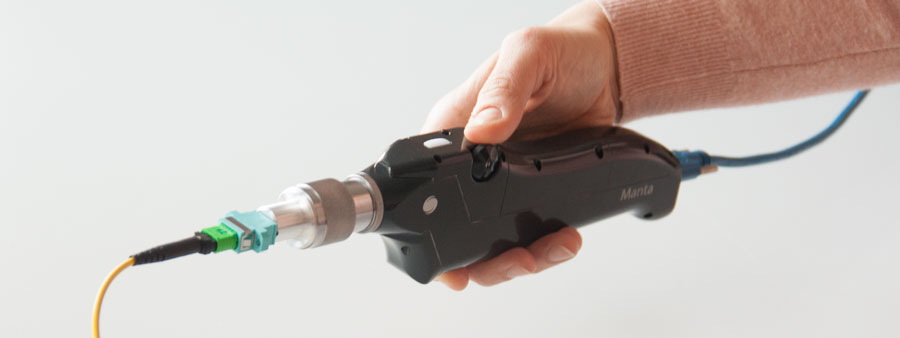

Compact and ergonomic design

Use the probe as a handheld or a desktop unit. Learn more

Kit Contents

SMX-Manta+V2 system includes:

Tips and other accessories should be ordered separately.
Order optical connector cleaners together with a microscope.

Specification

General

Field of view:
2.4 × 1.8 mm
Defect size detection:
0.75 µm
Optical resolution:
1.8 µm
Magnification:
290×
Focus:
autofocus
Measurement time:
The indicated values do not include autofocusing time.
6.5 sec for MT12,
6.9 sec for MT16,
9.7 sec for MT24
(includes the time of manual shifting to the second part of fibers).
Light source:
royal blue LED, 447.5 nm
Camera type:
digital, USB3.0
Sensor type:
monochrome, 2592 × 1944, 1/2.5’’ CMOS
Live image:
800 × 800, 50 fps; 2592 × 1944, 14 fps full resolution
Power source:
USB 2.0/3.0 port of PC
Cable:
USB 3.0, detachable
Dimensions (H × W × L):
75 × 28 × 233 mm (2.95 × 1.1 × 9.17 inches)
Weight:
475 g (1.05 lbs)
Housing material:
aluminum alloy
Barrel material:
stainless steel
Operating temperature:
+5 to +35°C
Compatible with:
desktop PC, laptop, tablet

PC System Requirements

Operating system:
Windows 10
For viewing measurement results:
Microsoft™ Excel® 2010 or higher
Recommended configuration
Minimal configuration
Processor:
Intel Core i5 or higher
Intel Core i3
RAM:
4 GB
2 GB
Video card:
Any with 24 bit True Color
Any with 24 bit True Color
Hardware interface:
Intel integrated USB 3.0 Host Controller.
At least one USB 3.0 port for connection
Any USB 2.0 Host Controller.
At least one USB 2.0 port for connection
Hard Drive:
1 Gb or more
1 Gb
Performance:
500 Mflops or more
400 Mflops

Tablet system requirements

Operating system:
Windows 10
Recommended configuration
Minimal configuration
Processor:
Intel Core i7
Intel Core i5
RAM:
4 GB
2 GB
Screen resolution:
1280 × 800 px or higher
1024 × 768 px
Display size:
10" or more
8"
Hardware interface:
USB 3.0
USB 2.0

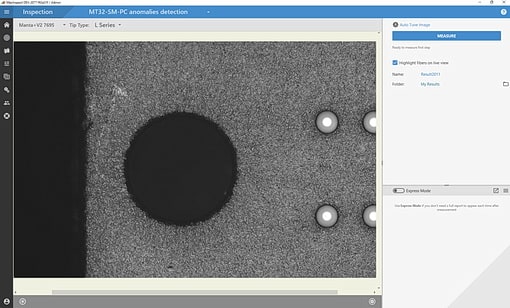

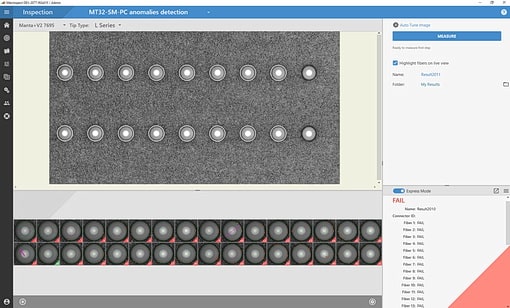

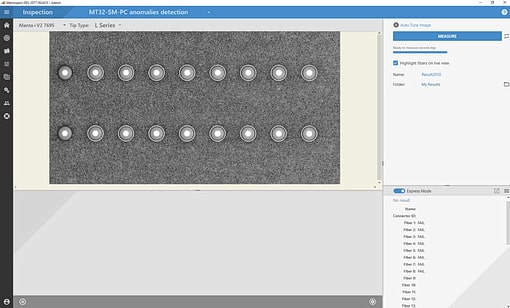

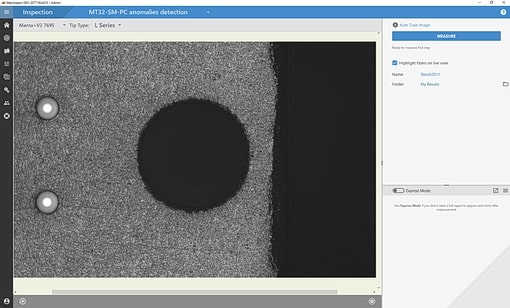

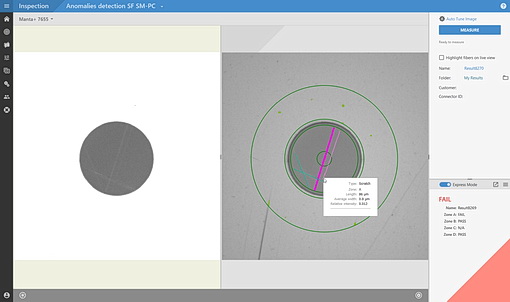

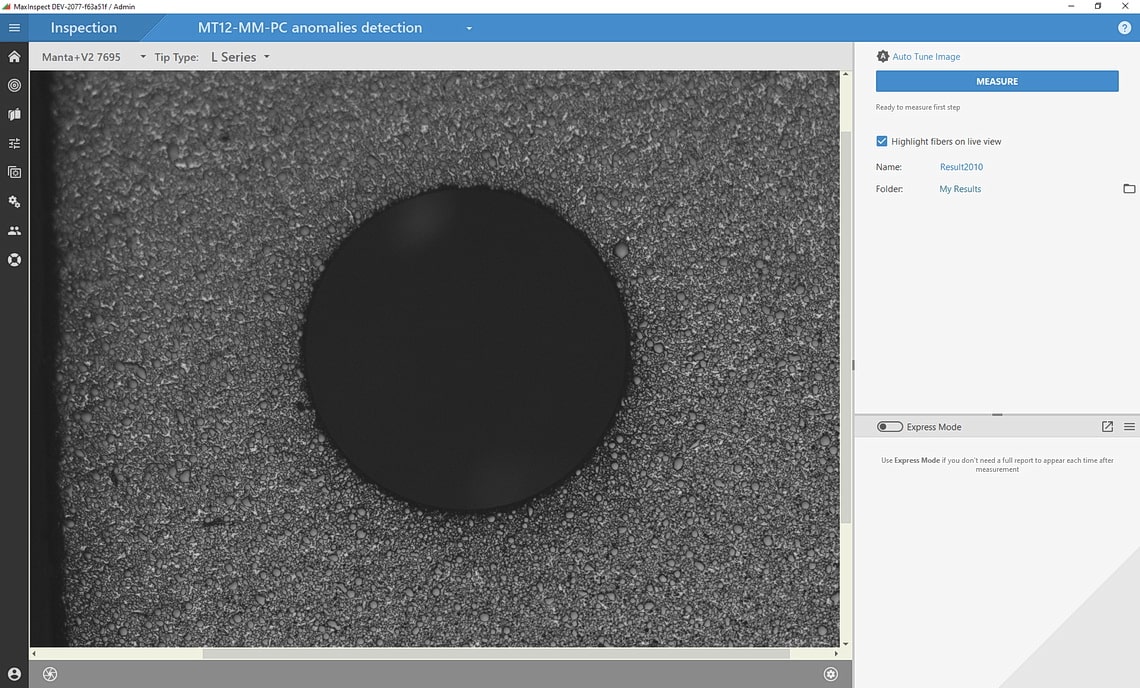

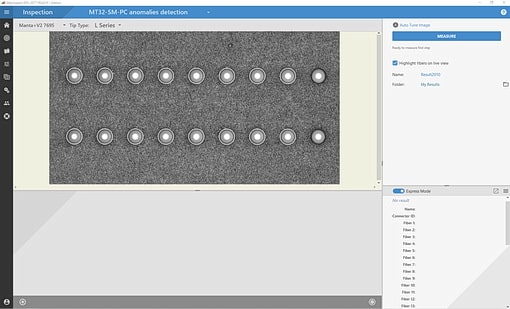

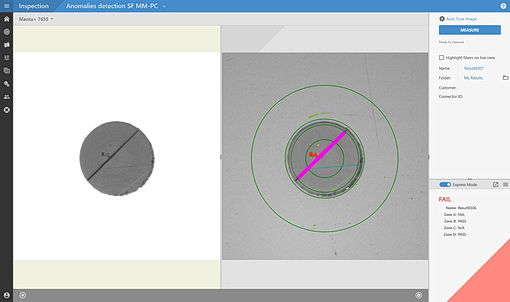

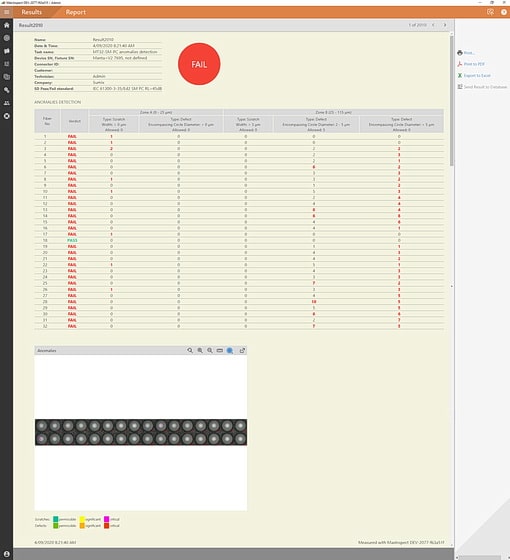

Sample Images
