NTT-AT’s connector cleaners have been designed in collaboration with the technicians that work on communication construction sites every day.
Sumix offers a full lineup of NTT AT’s cleaners compatible with every type of optical connector.
Optical connector endface is easily contaminated, and when contaminants adhere to the optical fiber core, there is a high chance of transmission quality deterioration. This is why it is essential to clean fiber endface before making a connection. Optical connector cleaners from NTT Advanced Technology Corporation use fiber developed specifically for optical connectors, so even the smallest contaminants not visible to the naked eye are removed.
NTT-AT’s connector cleaners have been designed in collaboration with the technicians that work on communication construction sites every day.
Sumix offers a full lineup of NTT AT’s cleaners compatible with every type of optical connector.
Microfibers remove the smallest contaminants without damaging fiber core.
Use the cleaning tools that are environment-friendly and safe for health of your technicians.
Designed in collaboration with on-site technicians, the cleaners are easy to use whether it be in the engineering lab, on the production line, or in the field.
Avoid reattachment of dust to the ferrule after cleaning.
Take advantage of the improvements you will receive in optical construction working efficiency and in communication services reliability.
Save costs with buying replacement consumables.

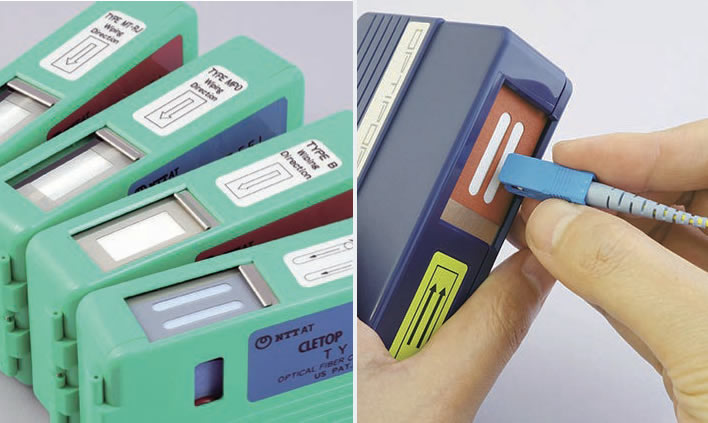

Designed so that all operators can consistently achieve high quality cleaning without alcohol or other solvents. Palm-sized and lightweight. Cleaning tape is replaceable and cost effective.
One simple push action cleans optical connector ferrule end face. In addition to optical port adaptors, attaching the cap allows you to easily clean plugs as well.
Efficiently cleans the endface of plug-in optical connectors and various kinds of in-adapter ferrules. Stick sections allow you to adapt the cleaner length for your convenience.

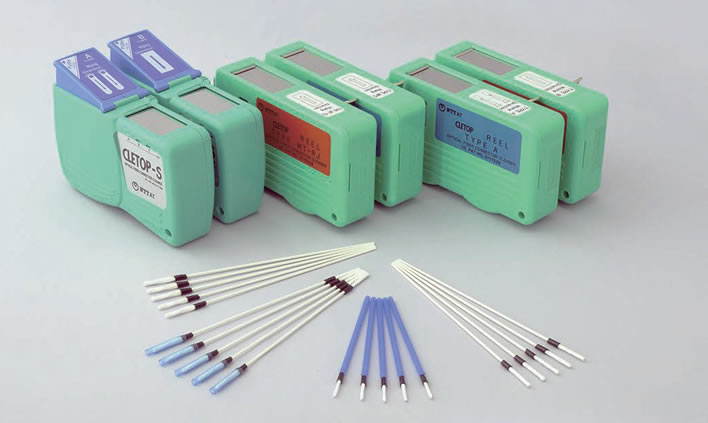

CLETOP – a reel-type cleaner with replaceable cleaning tape for over 400 wipes and with a lever to open a new cleaning section.
Type A – for 2.5mm ferrules;
Type B - for 1.25 mm ferrules and multi-fiber connectors without pins;
Type MT-RJ – for MTRJ connectors with pins;
Type MPO – for MPO connectors with pins.
CLETOP-S - a reel-type cleaner with replaceable cleaning tape for over 400 wipes and a click system to open a new cleaning section. The tape can be replaced very easily by a "drop-in" cartridge.
Type A – for 2.5mm ferrules;
Type B - for 1.25 mm ferrules and multi-fiber connectors without pins.

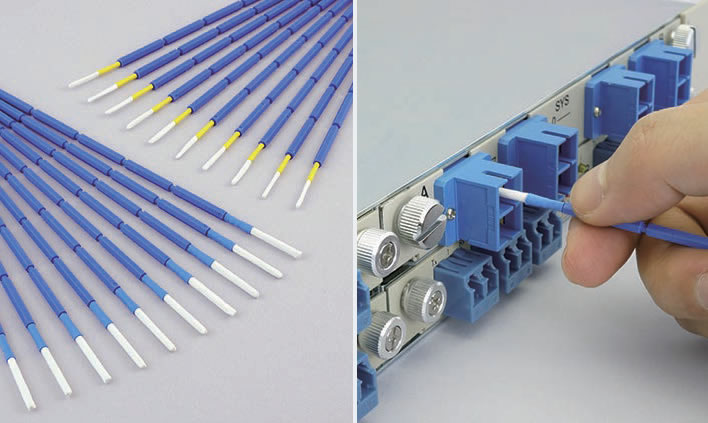

CLETOP Stick Type – a lineup of four types for cleaning in-adapter ferrules: 2.5 mm, 1.25 mm, 2.0 mm and double-ended stick for 2.0 and 2.5 mm.

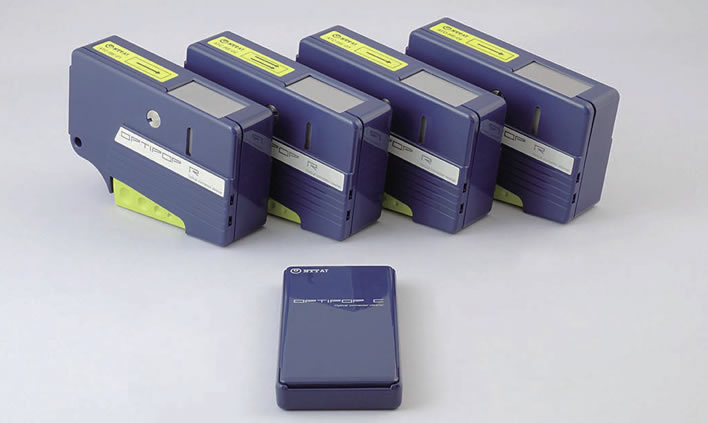

OPTIPOP R – cassette cleaner with replaceable reels and a dustproof shutter allowing you to open a new cleaning section with a single hand, one-action lever.
OPTIPOP R1 – one-slot type;
OPTIPOP R2 – two-slot type;
OPTIPOP R3 – for MPO with pins;
OPTIPOP R4 – for MTRJ with pins.
OPTIPOP P - a pipe-type tool for cleaning lateral surface of the ferrule.

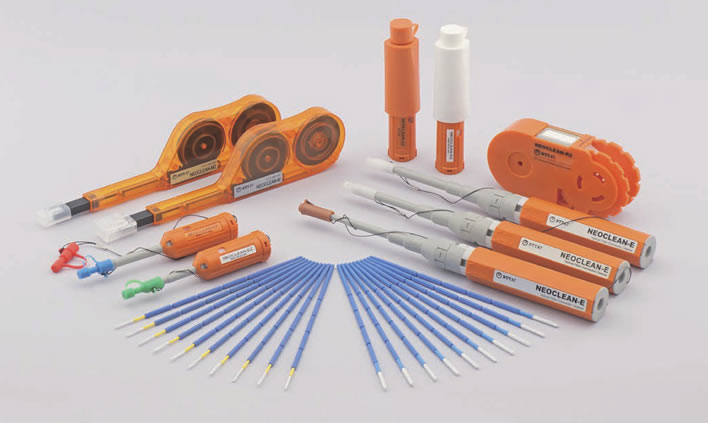

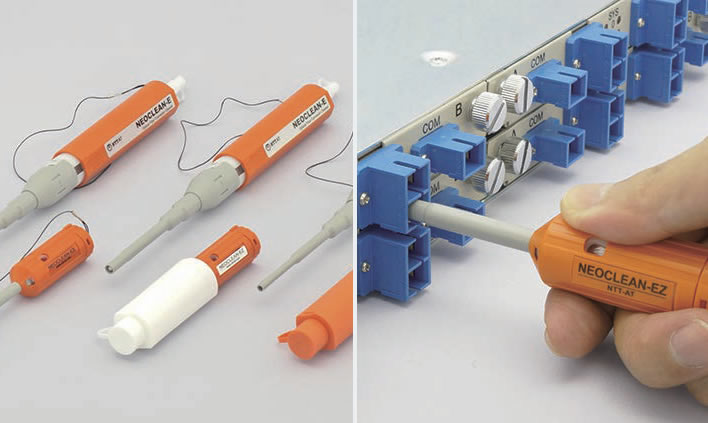

NEOCLEAN-E, EZ series, and NEOCLEAN-M are innovative high performance pen-type cleaners that are compatible both for plugs and adaptors and provide one-push operation with no special skills required.
NEOCLEAN®-M, M2 – pen-type cleaner for MTP®/MPO connectors
NEOCLEAN®-E – Pen-type cleaner for single fiber connectors
NEOCLEAN-EZ - MINI Pen type Cleaner for single-fiber connectors (for cleaning in the narrow spaces and deeply recessed optical ports)
NEOCLEAN® Reel Type – a simplified cassette cleaner for single-fiber and multi-fiber (no pin) connectors.
NEOCLEAN®-S – Stick Type cleaner for 1.25 and 2.5 mm ferrules in adapters.
| Object | Plug/Adaptor | ||||||
| Cleaner Type | Pen Type | ||||||
| Product | NEOCLEAN-E | NEOCLEAN-EZ | |||||
|---|---|---|---|---|---|---|---|
| E1 | E2 | E3 | EZ1 | EZ2 | EZ3 | EZ1 Plus | |
| Model# | ATC-NE-E1 | ATC-NE-E2 | ATC-NE-E3 | ATC-NE-EZ1 | ATC-NE-EZ2 | ATC-NE-EZ3 | ATC-NE-EZ1P |
| Compatible Connectors | MU, LC | SC,SC2, FC, FAS, FA | SC, FC, ST, E2000, PC/APC | MU, LC | SC, SC2, FC, FAS, FA | SC, FC, ST, E2000, SMPTE304M* | ODC ,LC, MU, Ø1.25mm Ferrule Connector |
| Size (mm) | L:240 | L:230 | L:230 | L:104 with attachment: 113, extended: 167 |
L:109 with cap: 121 |
L:107 with cap: 113 |
|
| Usages | over 750 times | over 400 times | |||||
| Consumables Type | Replaceable Cartridge | Disposable Type | |||||
| Consumables Product | Cartridge (3 units/set) | ||||||
| Object | Plug/Adaptor | |
|---|---|---|
| Cleaner Type | Pen Type | |
| Product | NEOCLEAN-M | NEOCLEAN-M2 |
| Model# | ATC-NE-M1 | ATC-NE-M2 |
| Compatible Connectors | MPO, MTP®（ Pins yes/no） | MPO-16, MTP®-16（ Pins yes/no） |
| Size (mm) | L:197 × W:15 × H:51 | |
| Usages | over 600 times | |
| Consumables | Disposable Type | |
| Object | Plug | |||||
| Cleaner Type | Click Type Cassette | |||||
| Product | OPTIPOP | OPTIPOP-5 | ||||
|---|---|---|---|---|---|---|
| R1 | R2 | R3 | R4 | A Type | B Type | |
| Model# | ATC-RE-01 | ATC-RE-02 | ATC-RE-03 | ATC-RE-04 | 14110501 | 14110601 |
| Compatible Connectors | Single core, Multi-core (no pin) |
Single core | MT, MPO (with pin) |
MT-RJ (with pin) |
Single core (ideal for Ø2.5mm) |
Single core, Multi-core (no pin) |
| Size (mm) | W:124 × D:35 × H:83 | W:125 × D:35 × H:85 | ||||
| Usages | over 400 times | over 400 times | ||||
| Type | Replaceable Cartridge (6 reels/set) | Replaceable Cartridge (6 reels/set) | ||||
| Product | OPTIPOP RS | Blue tape / White tape | ||||
| Model# | ATC-RS-01 | 14110700 / 14110710 | ||||
| Object | Plug | |||||
| Cleaner Type | Lever Type Cassette | Card Type | Simple Type | |||
| Product | CLETOP | OPTIPOP C Discontinued |
NEOCLEAN-R2 | |||
|---|---|---|---|---|---|---|
| A Type | B Type | MT-RJ Type | MPO Type | |||
| Model# | 14100501 | 14100601 | 14100101 | 14100201 | ATC-CA-01 1 | ATC-NE-R2 |
| Compatible Connectors | Single core (ideal for Ø2.5mm) |
Single core, Multi-core (no pin) |
MT-RJ (with pin) |
MT, MPO (with pin) | Sigle core | Single core, Multi-core (no pin) |
| Size (mm) | W:124 × D:35 × H:83 | W:120 × D:16 × H:57 | W:115 × D:25 × H:55 | |||
| Usages | over 400 times | 12x/sheet:10sheets | over 400 times | |||
| Type | Replaceable Cartridge (6 reels/set) |
Replaceacle Cartridge (100sheets/set) | Disposable Type | |||
| Product | OPTIPOP RS | OPTIPOP CS | ||||
| Model# | ATC-RS-01 | ATC-CS-0 | ||||
| Object | Adaptors | |||||
| Cleaner Type | Stick Type | |||||
| Product | NEOCLEAN-S | CLETOP Stick | ||||
|---|---|---|---|---|---|---|
| S125 | S250 | 1.25mm Type | 2.5mm Type | 2.0mm Type | 2.0/2.5mm Double ended | |
| Model# | ATC-NC-125 | ATC-ST-02N | 14100401 | 14100400 | 14100402 | 14100403 |
| Compatible Connectors | Ø1.25mm | Ø2.5mm | Ø1.25mm | Ø2.5mm | Connectors for high vision cameras | |
| Length (mm) | Max. 153 - Min. 45 | 101 | 147 | 147 | 151 | |
| Packing Specifications | 200 sticks/set | 200 sticks/set | 200 sticks/set | 100 sticks/set | ||
More information can be found at https://www.ntt-at.com/product/optical_cleaner/
CLETOP, OPTIPOP and NEOCLEAN are trademarks of NTT Advanced Technology Corporation.
E2000 is a trademark of Diamond SA.
MTP is a registered trademark of US Conec Ltd.
CS is a registered trademark of Senko Advanced Components Inc.
