Сontamination and improper fiber crossing are key issues disrupting network performance. Sumix offers
polarity verification tools
that complement a microscopic or interferometric system to deliver three essential tests:
End-to-end polarity validation —
type A (Straight), B (Crossed), C (Cross pairs) or custom.
Continuity confirmation to quickly check if there are no damaged fibers.
Endface inspection for contamination, scratches, and defects that can impact signal transmission.
For a detailed video tutorial on how to operate MPO and SN-MT Verifiers, visit the Support page.

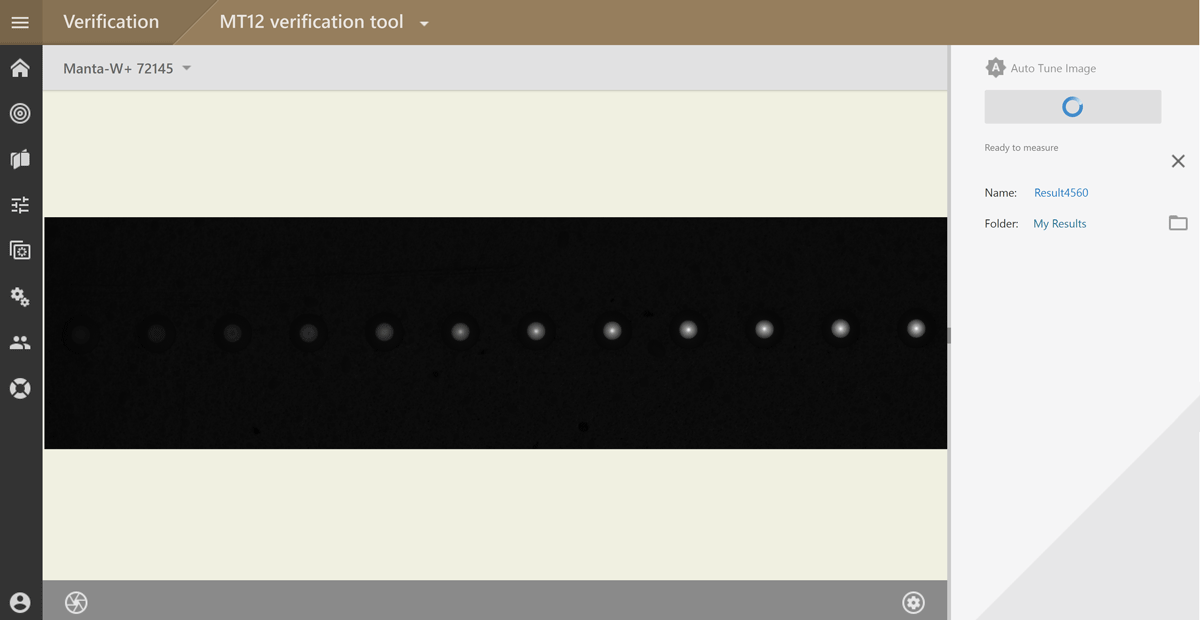

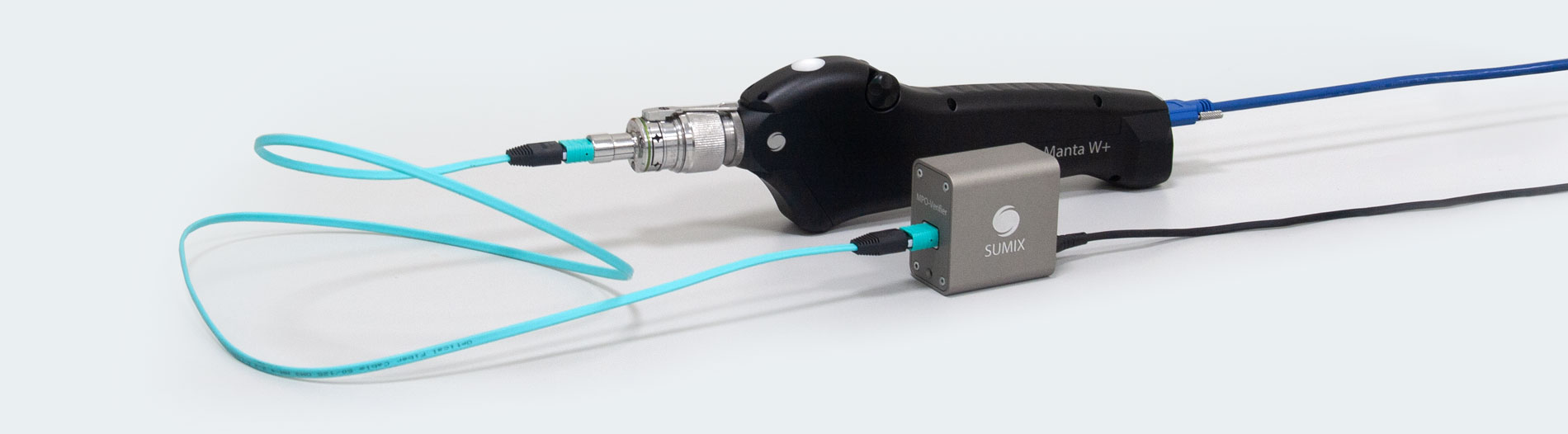

MPO-Verifier and SN-MT Verifier are LED light modules that illuminate optical fibers in a determined sequence. The software analyzes the pattern on each cable end to determine polarity type and fiber positions.

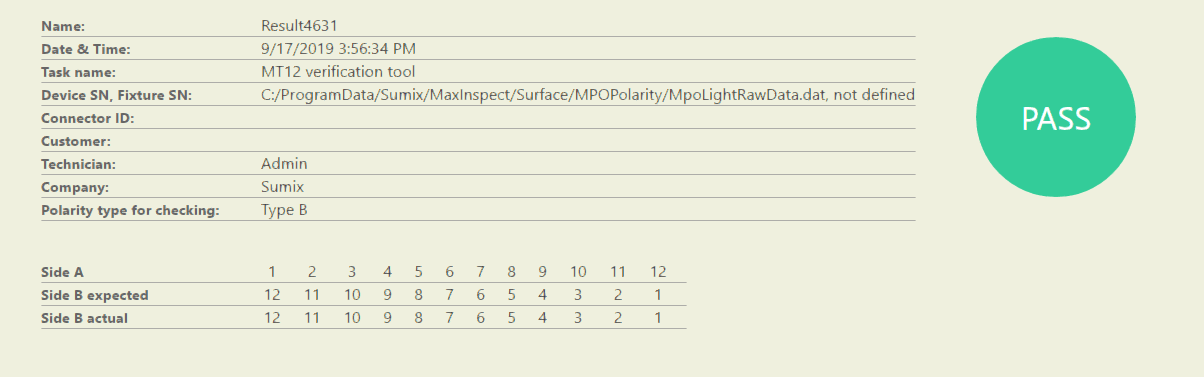

One report for polarity and anomalies to speed up and streamline your inspection process.
Adjust the software to custom fiber wiring or absent fibers. Get an automatic verification of the proper fiber order at the output.
The pins and guide holes of your connectors remain intact. No cleaning before insertion is required.
No need to purchase and maintain expensive master patch cords. This leads to greater efficiency, flexibility, and overall cost savings.
| MPO-Verifier | SN-MT Verifier | |
|---|---|---|
| Cables supported: | MPO connector and MT* ferrule, 12/24/48-fiber and 16/32-fiber configurations, both male and female types, MM and SM * through an adapter |
SN-MT connector, 8- and 16-fiber configurations |
| Dimensions: | W32 mm × L53 mm × H53 mm | |
| Weight: | 136 g | 133 g |
| Powered: | From PC or laptop through USB Type-C | |
| Light source: | LED | |
| Applicable for: | short fiber links | |
| Compatible devices | Manta-HM, Manta-W+, MAX-Quantum, MAX-QM+ | |
