for inspection of:
handheld robotic interferometer designed for maintenance inspection of multi-termini fiber optic connectors (MIL-DTL-38999 style and similar) installed inside an aircraft or marine vessel.
for single and multi-fiber connectors, including MT16/32
with anomalies detection
for single and multi-fiber connectors, including MT16/32
Sumix interferometers are designed for inspection of fiber optic ferrules, patch cords, pigtails and bare fiber in the process of polishing and assembly. They enable you to check polishing quality, test connector end face geometry per IEC, Telcordia or your own custom standards and generate reports to supply with your patch cords.
Sumix Interferometers are modern and reliable fiber optic test equipment, featuring USB 3.0 connection technology, high-resolution and high-contrast optics, smart ergonomic fixtures, modern and intuitive software.
Download Sumix interferometers brochure
Discontinued models:
MAX-QM-B+ for single and multi-fiber connectors. Available for current customers only.
Replaced by MAX-Quantum and MAX-QM+.
SMX series interferometers (SMX-8QM-B, SMX-7QS, SMX-7QS-T, SMX-8QM). Obsolete, replaced by MAX and WIZ models shown above.
|
WIZ-QS-110 |
MAX-QS+ |
MAX-QM+ |
MAX-Quantum |

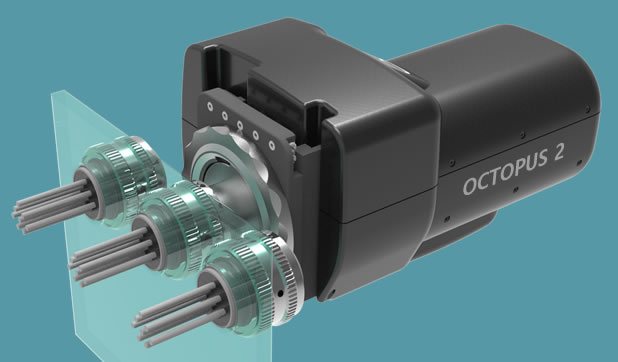

OCTOPUS 2 |
|
|---|---|---|---|---|---|
| Optimal for connectors: | Single fiber | Single fiber and MT-RJ |
Single and multi-fiber |
Single and multi-fiber |
MIL-DTL-38999 style |
| List of connectors supported | |||||
| ST, FC, SC (PC, UPC and APC) | |||||
| MU, LC (PC, UPC and APC) | |||||
| E2000™ (PC, UPC and APC) | |||||
| MIL-ST (M83522/16, MIL-C-83522) | |||||
| MIL-DTL-38999 | |||||
| M29504/14 (MIL-PRF-29504/14) | |||||
| SMA 905 | |||||
| Duplex SC, LC | |||||
| MT-RJ (PC and APC) | |||||
| MT12 - MT72 (PC and APC) | |||||
| MT16, MT32 (PC and APC) | |||||
| MTP®/MPO (PC and APC) | |||||
| MTP®/MPO (12-72 fiber and 16-32 fiber; PC and APC) with testing guide hole parallelism | |||||
| Cleaved bare fiber | |||||
| Cleaved ribbon | |||||
| Lateral resolution: | 2.5 µm | 1.1 µm | 2.2 µm | 1.47 µm | 3.2 µm |
| Measurement time *: | 1.3 sec | 2 sec (PC) | 3 sec (MT12) 1 sec (single fiber) |
7 sec (MT12), 1.4 sec (single fiber) |
1 min on average for a 6-termini connector |
| Field of view: | 1.2 × 0.9 mm | 1.1 × 0.9 mm | 5.6 × 3.5 mm | 6.0 × 4.4 mm | D = 1.6 mm |
| Measurement mode: | phase shift and white light | phase shift and white light | phase shift and white light | phase shift and white light | white light |
| Anomalies detection: | no | yes | no | yes | yes |
| Microscopy Mode: | no | yes | no | yes | hybrid |
| Autofocus: | yes | yes | yes | yes | yes |
| Weight: | 3.9 kg (8.6 lbs) |
3.9 kg (8.6 lbs) |
3.8 kg (8.4 lbs) |
4.8 kg (10.6 lbs) | 1,3 kg (2,86 lbs) |
| Dimensions (H×W×L): | 93 × 137 × 183 mm (3.66 × 5.4 × 7.2 in) |
103 × 137 × 183 mm (4.06 × 5.39 × 7.2 inches) |
103 × 137 × 183 mm (4.06 × 5.39 × 7.2 inches) |
181 × 213 × 117 mm (7.13 in × 8.39 in × 4.61 inches) | 97 × 110 × 176 mm (3.8 × 4.3 × 7.0 inches) |
| Can be combined with polarity check: |
|||||
| Price: | |||||
* Measurement time may vary depending on computer performance and connector end face shape.
E2000 is a trademark of Diamond SA.
MTP is a registered trademark of US Conec Ltd.
CS is a registered trademark of Senko Advanced Components Inc.

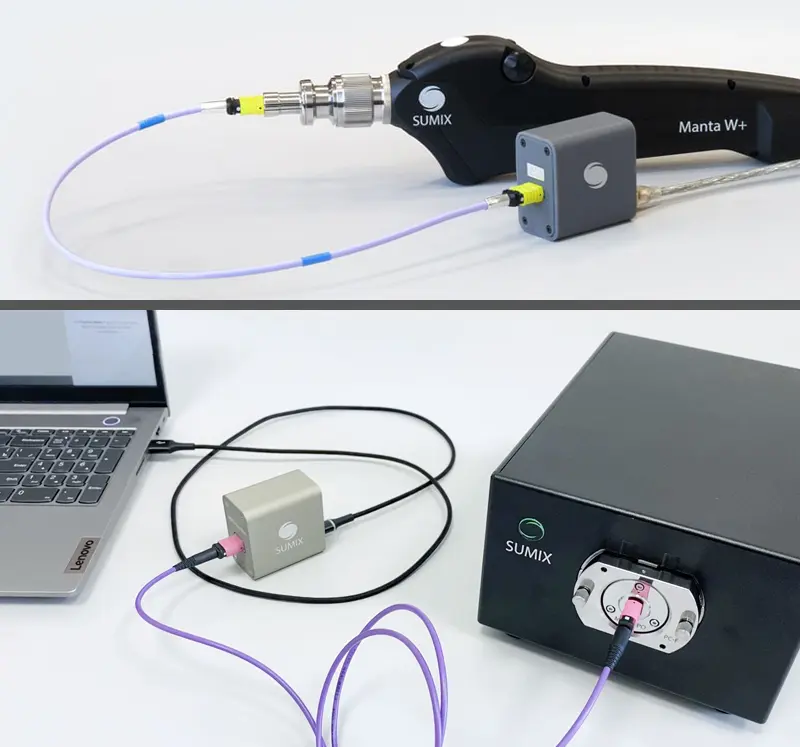

MPO-Verifier illumination module combined with MAX-Quantum is a single solution for end-to-end polarity validation, continuity confirmation and endface inspection of MPO cables.
