MAX-QM-B+ Interferometer DISCONTINUED

Multi-fiber connectors
Single fiber connectors
Autofocus
PASS/FAIL verdict
Scratch detection
Fast measurement
Industry standards
Connects to tablet or laptop

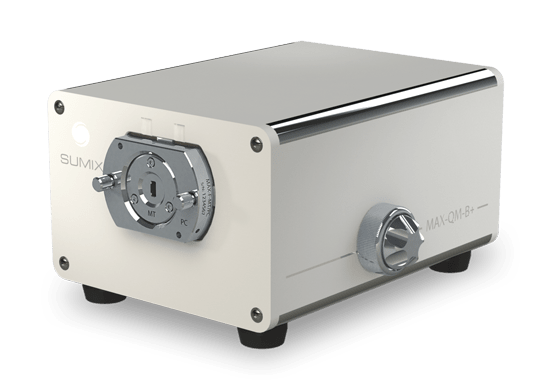

MAX-QM-B+ is a white-light and phase-shift interferometer for inspection of single and multi-fiber connectors of ST, FC, SC, LC, MU, MTP®/MPO, E2000™ (PC and APC) types as well as MT, MT-RJ (PC and APC) ferrules in a single scan. The interferometer features a wide field of view, portable design, autofocus, high testing speed and resolution of 1.4 micron.

The device connects to a laptop or desktop computer via USB 3.0 cable and 12V DC power adapter.

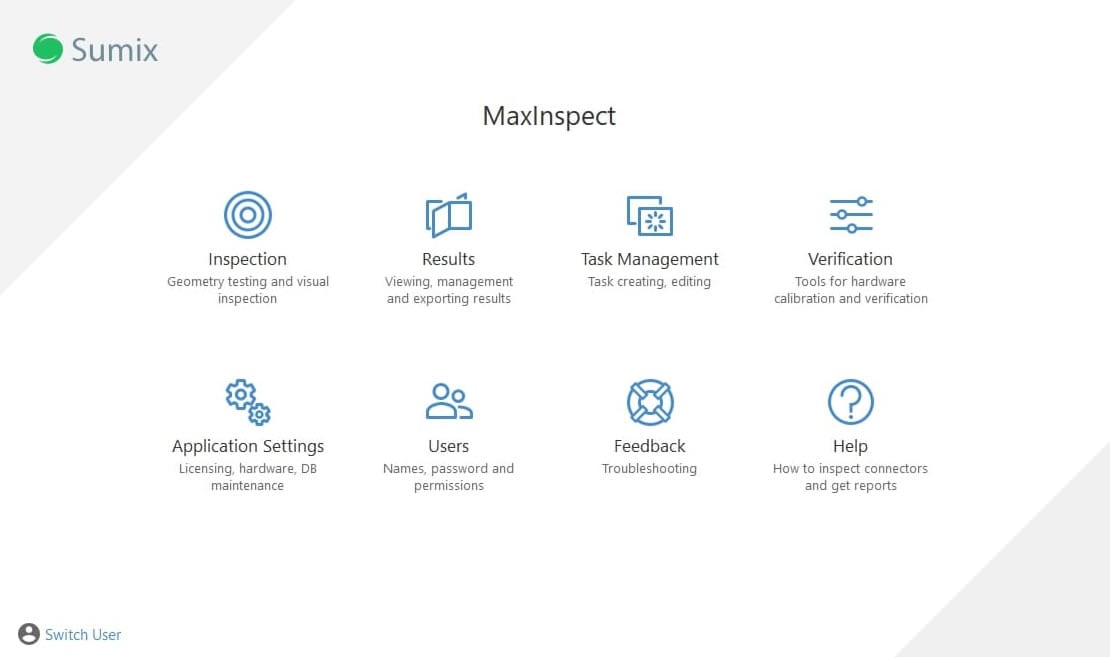

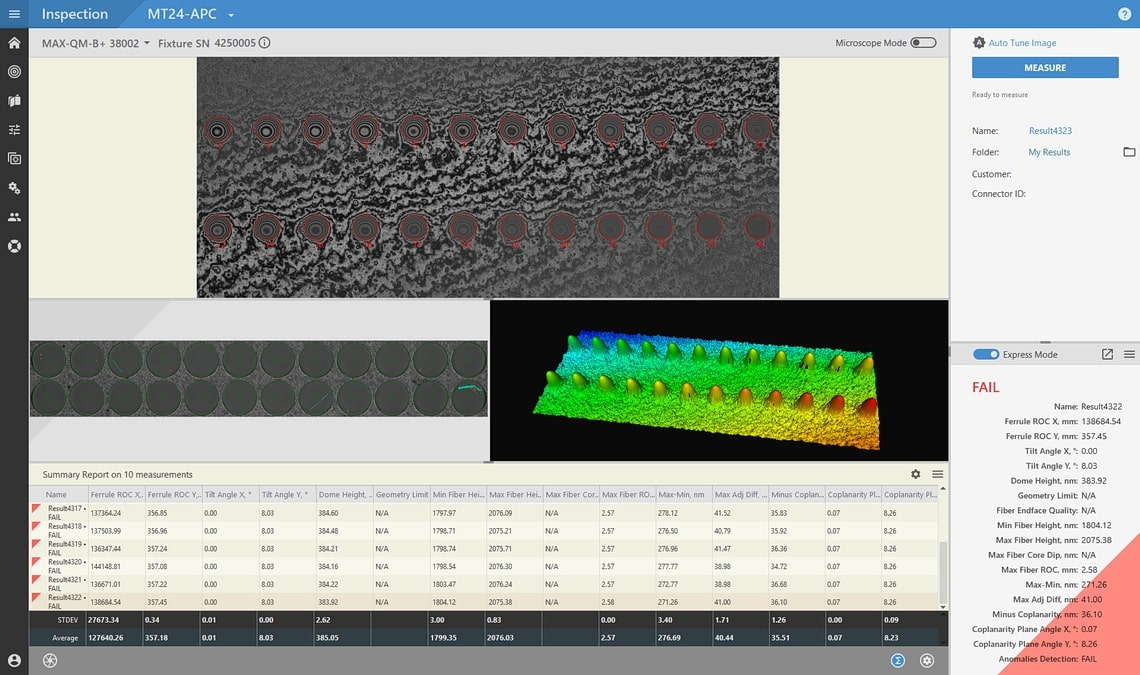

MAX-QM-B+ is supplied with the industry-leading MaxInspect™ software for interferometric inspection of fiber optic connectors.

Download MAX+ Series brochure

Software

More images you can find here

Features

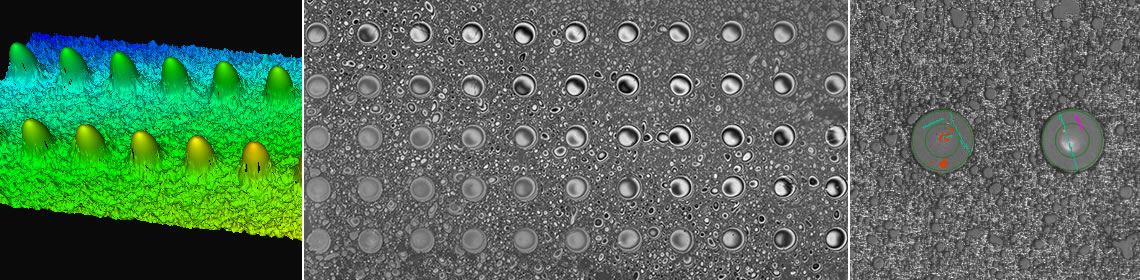

High resolution 2D and 3D surface profiles

Explore surface details as small as 1.4 μm.

Autofocus

Minimize operator’s actions to just one click.

Combined anomalies detection and geometry testing

Speed up inspection and increase work efficiency.

Fast measurements

Measure single fiber connector in less than a second and multi-fiber connector as quickly as 5 seconds.

Microscopy mode

Visually inspect connector end face prior to measurement.

Ergonomic fixture design

Save time with easy ferrule/connector insertion and fixture handling.

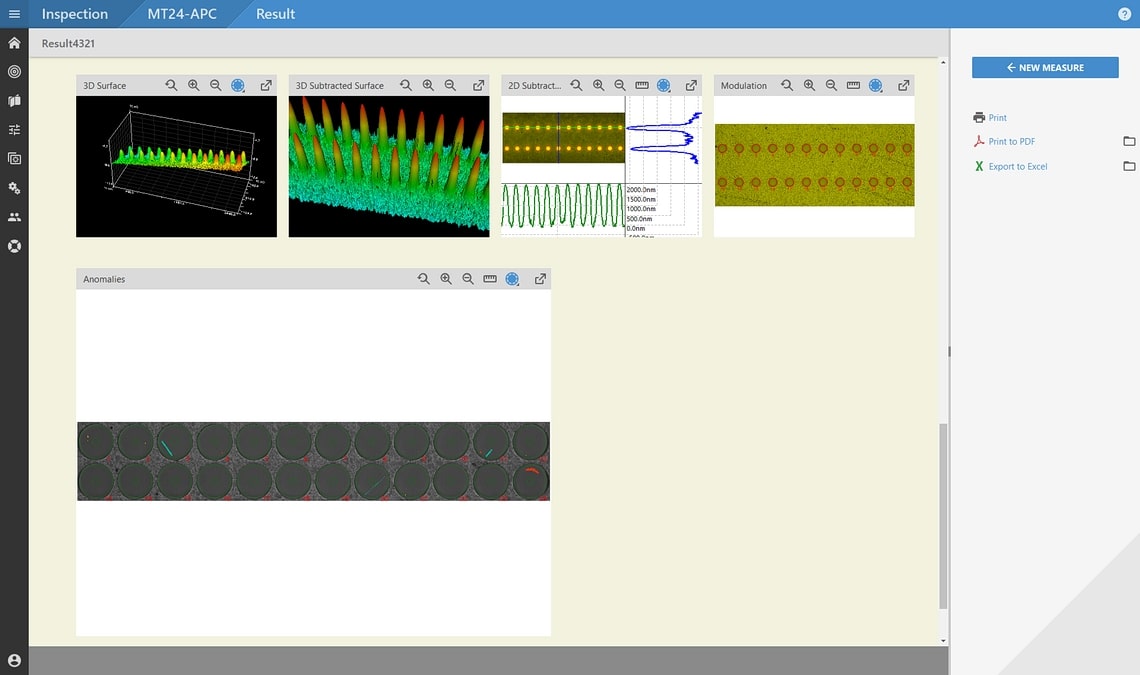

Industry-leading MaxInspect™ automated inspection software

Measure radius of curvature, apex offset, fiber height, core dip, etc.

Data-base connectivity

Store measurement data from all local sites in one place and easily integrate Sumix equipment into your manufacturing systems. Learn more

Compliance to industry standards

Test per IEC, Telcordia or your own Pass/Fail criteria.

Specification

System

Measurement technique:
non-contact; Michelson interferometry
Lens:
NA = 0.24; flatness error < λ/50
Illuminator:
green LED (530 nm)
Field of view:
3.5 × 2.5 mm
Lateral resolution:
1.4 µm
Magnification:
200× (the digital zoom turned off)
Focus:
auto and manual
Maximum image size:
2590 x 1940 px
Best suitable for connectors/ferrules (PC and APC):
SC, FC, ST, LC, MU, E2000™, MTP®/MPO, MT-RJ, MT, SMA
Microscopy Mode:
Yes

Measurement

Measurement mode:
phase shift and white light
Scanning and calculation time*:

Measurement time may vary depending on computer performance and connector end face shape.
<1* sec (single fiber)
5** sec (MT12)
* 64 MHz, standard connector
** 64 MHz, MT12 connector with small X, Y angles
Measurement Range:
ROC (mm): 1 to flat
Apex offset (μm): 0 to 2000
Fiber height* (μm): more than 1000**
Angles measurements - full range (degrees): 0 to 28***
* Difference from the highest and lowest points of the scanned object.
**<100 µm available by default. >100 µm - for special connectors/tasks (software adjustment required).
*** Regular fixtures - 0, 8, 9 degrees. Customized fixtures - 0 -28 degrees.
Repeatability C.F.*:
* Values were calculated from 30 consecutive measurements without interaction on connector between measurements (connector fixed) and represent one sigma value.
ROC: 0.9 % (MT12); 0.04 % (SC/PC)
Fiber Height: 0.8 nm (MT12); 0.1 nm (SC/PC)
Angles: 0.005 deg (MT12); 0.0002 deg (SC/PC)
Apex Offset: 0.04 µm (SC/PC)
Repeatability C.R.*:
* Values were calculated from 30 consecutive measurements with removing and inserting connector between measurements (connector reloaded) and represent one sigma value.
ROC: 1.2 % (MT12); 0.05 % (SC/PC)
Fiber Height: 1.1 nm (MT12); 0.4 nm (SC/PC)
Angles: 0.01 deg (MT12); 0.006 deg (SC/PC)
Apex Offset: 1.0 µm (SC/PC)

Recommended Environment

Temperature:
+20°... +24°C
Pressure:
700 – 850 mm mercury
Humidity:
5 – 75%, non-condensing

Dimensions and Weight

Dimensions (H × W × L):
103 × 137 × 183 mm (4.06 × 5.39 × 7.2 inches)
Weight:
3.8 kg (8.4 lbs)

Power

Power supply:
external, USB 3.0 cable, 12 V DC power adapter

System Requirements

Recommended:
Windows 11, Windows 10
Intel Core i7
4GB RAM or higher
Built-in Intel USB 3.0 controller
Microsoft Excel 2010 or higher

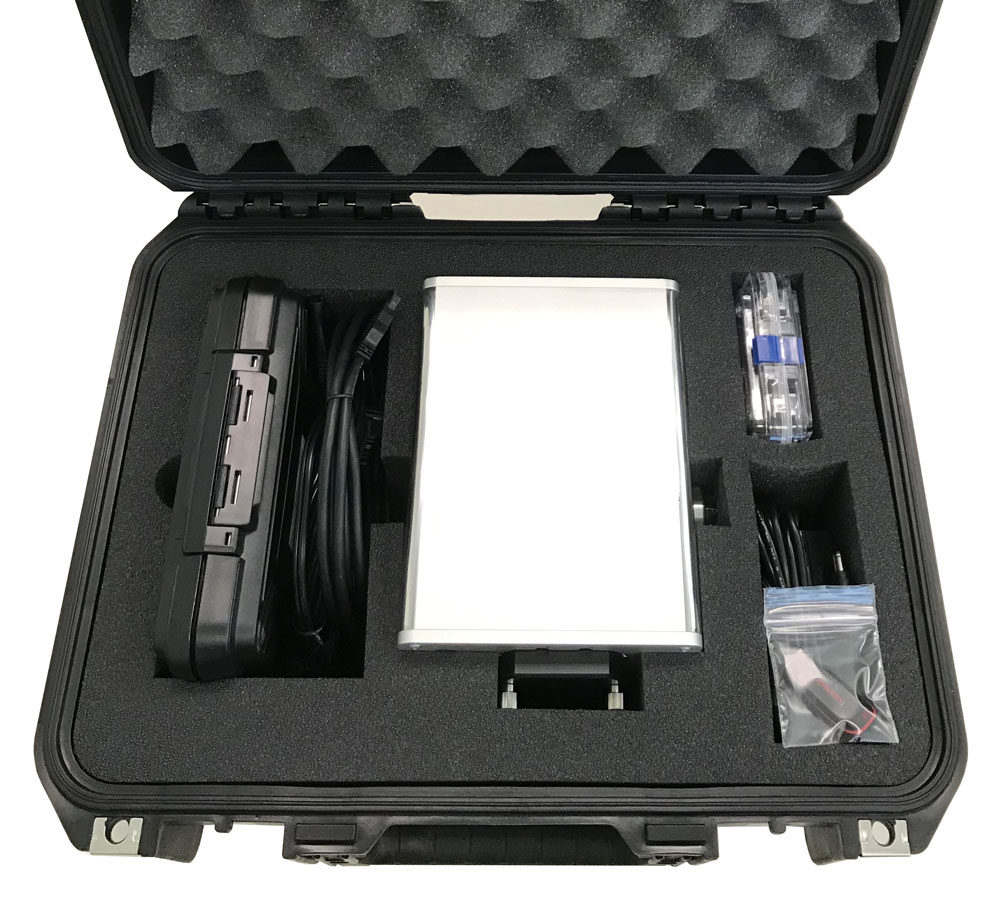

MAX-QM-B+ interferometric system includes:

  • MAX-QM-B+ interferometer
  • Optical flat standard for device verification
  • USB 3.0 cable
  • AC adapter
  • Allen key
  • Case
  • MaxInspect™ software license

Fixtures and other accessories should be ordered separately.

Kit

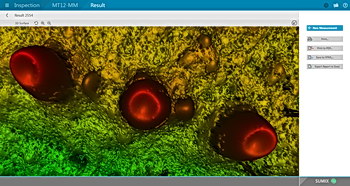

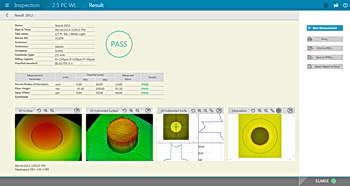

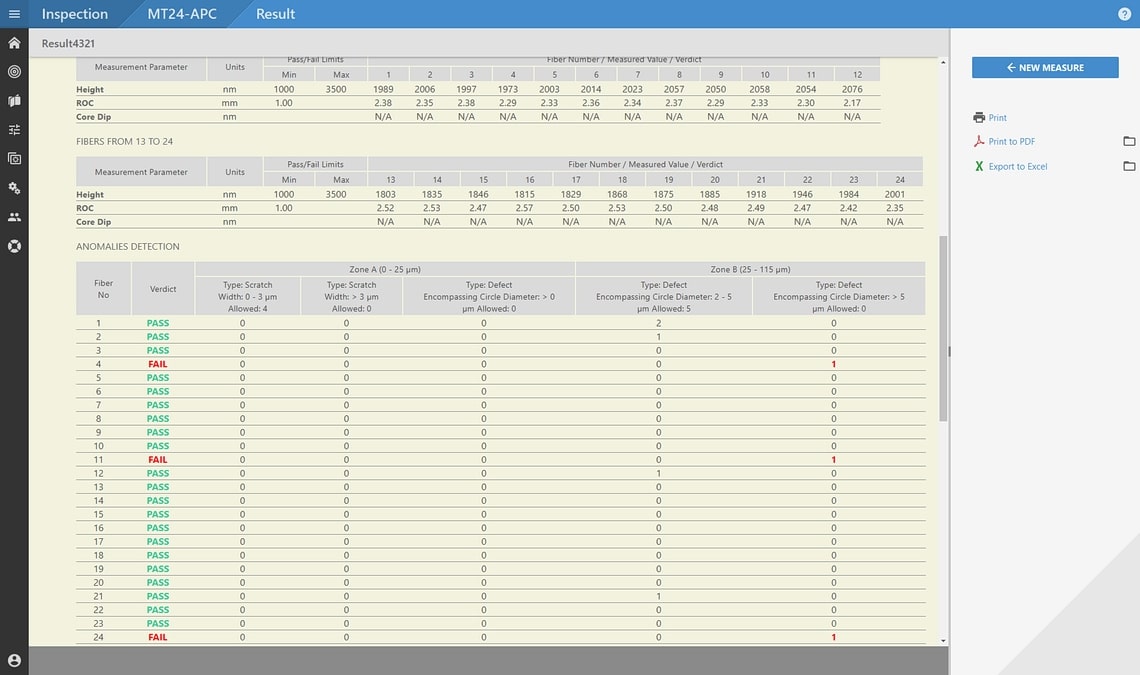

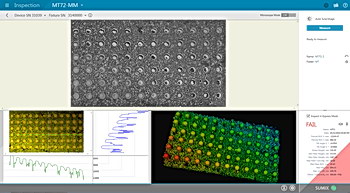

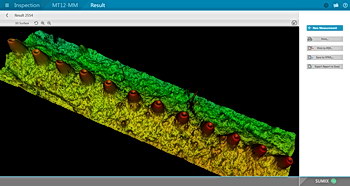

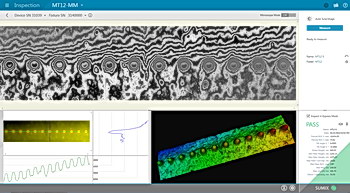

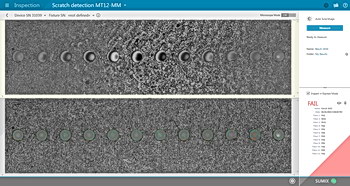

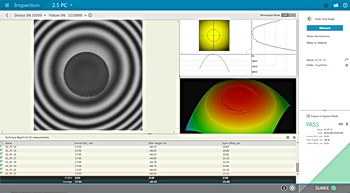

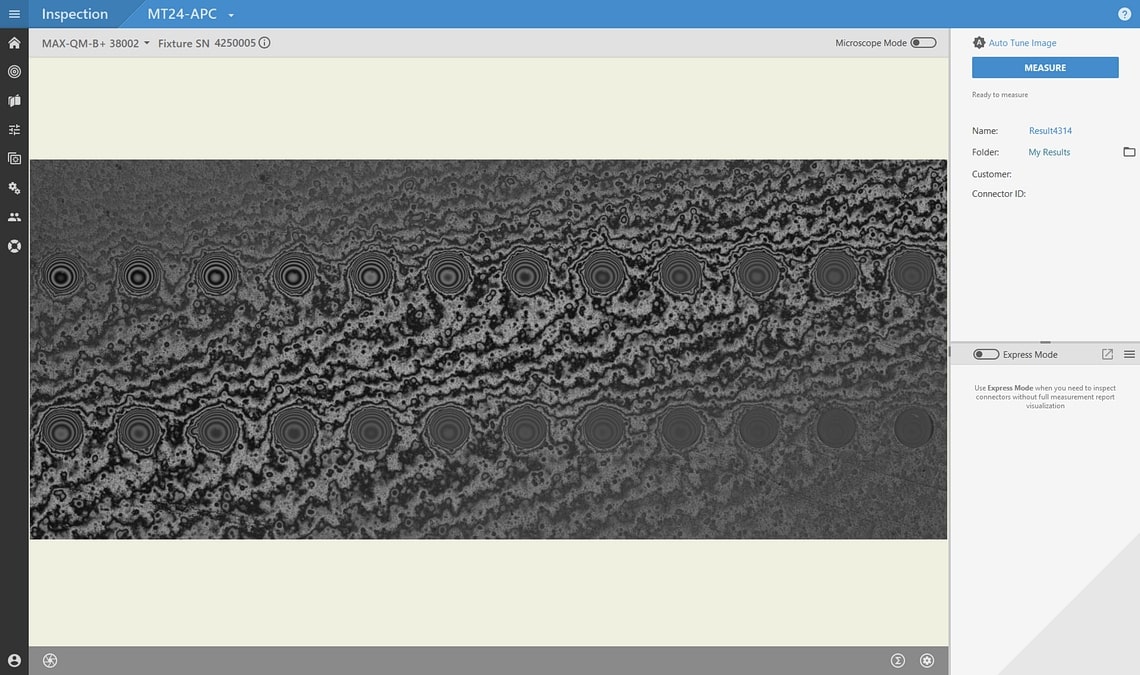

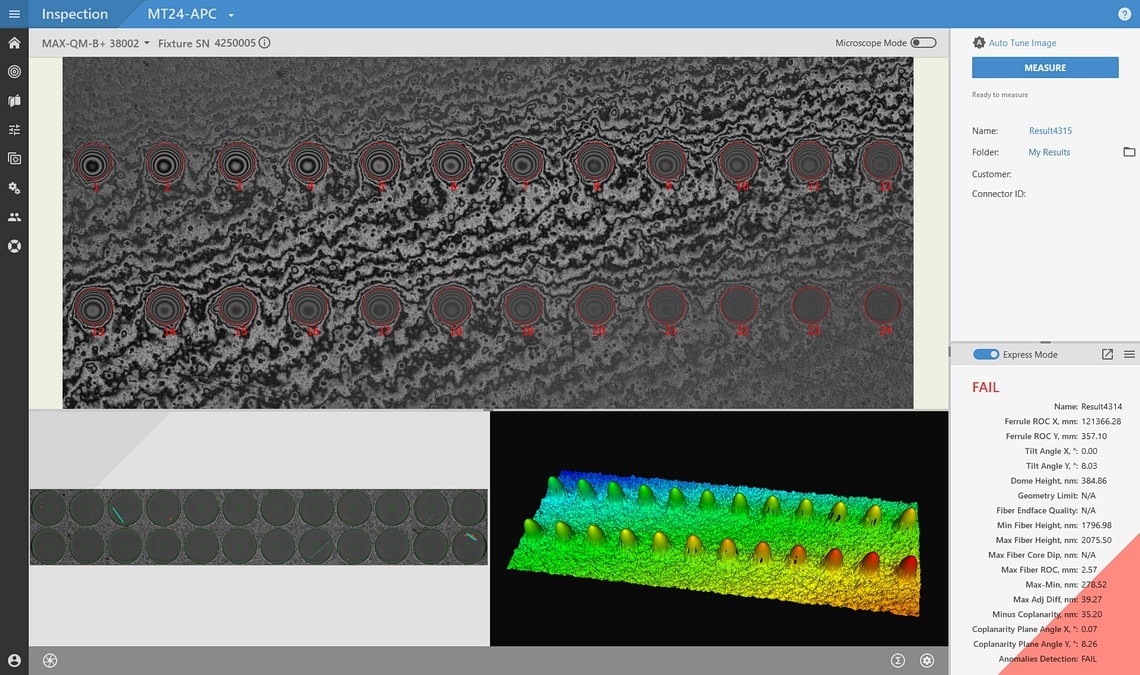

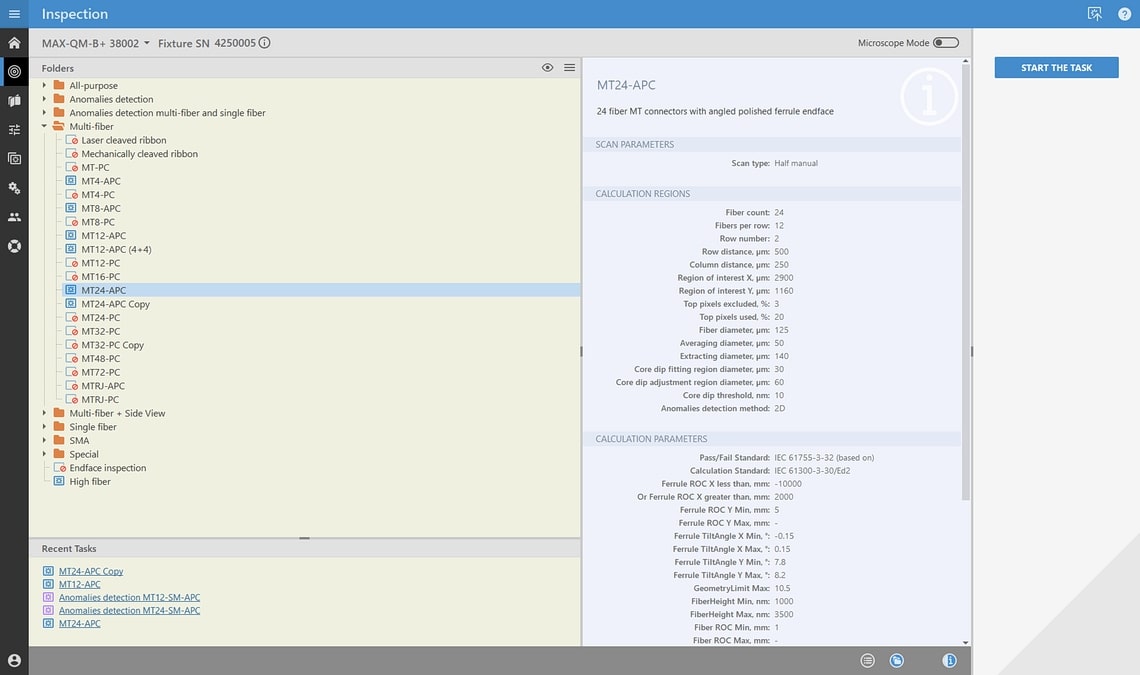

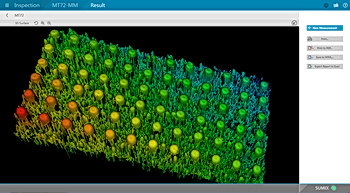

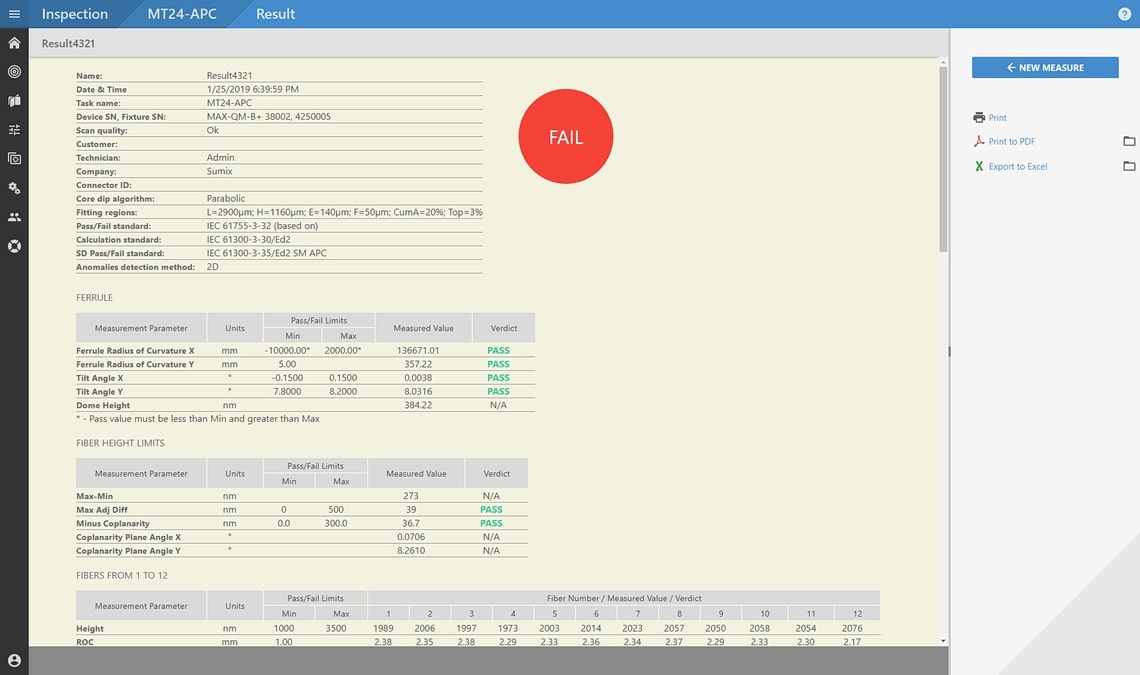

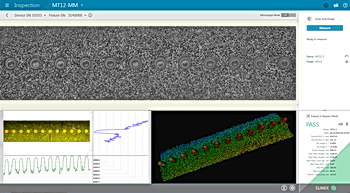

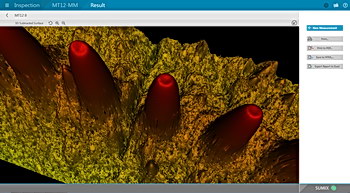

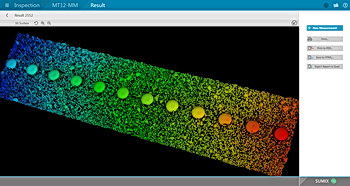

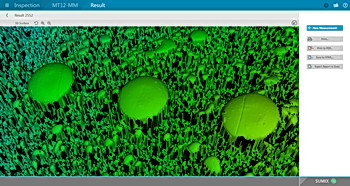

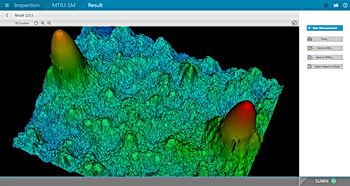

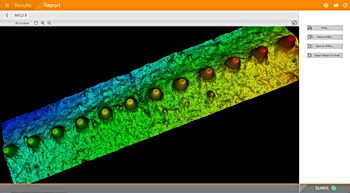

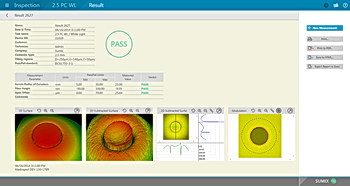

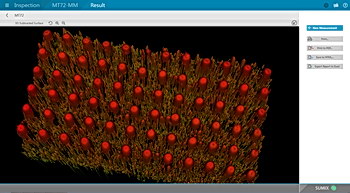

Sample Images
