Custom Tip
for inspection of your special connectors as per your drawings/ specifications with fast turnover time and at a favorable cost.

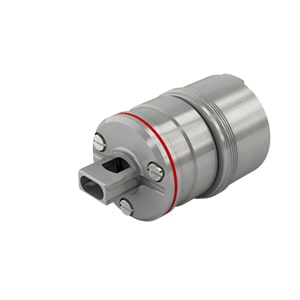

MNT-MPO-PC-F-R
for inspection of fibers in MTP®/MPO connectors, PC endface, bulkhead side (in adapters). Tip for Manta+V2.

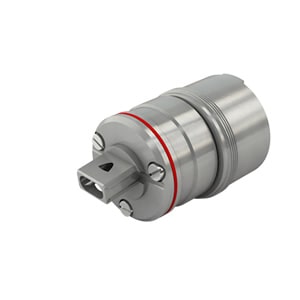

MNT-MPO-APC-F-R
for inspection of fibers in MTP®/MPO connectors, APC endface, bulkhead side (in adapters). Tip for Manta+V2.

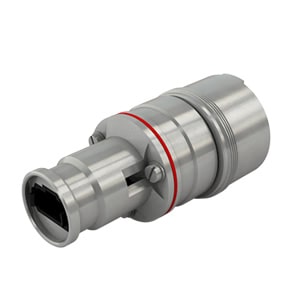

MNT-MPO-PC-M-R
for inspection of fibers in MTP®/MPO connectors, PC endface, patch cord side. Tip for Manta+V2.
MNT-MPO-APC-M-R
for inspection of fibers in MTP®/MPO connectors, APC endface, patch cord side. Tip for Manta+V2.

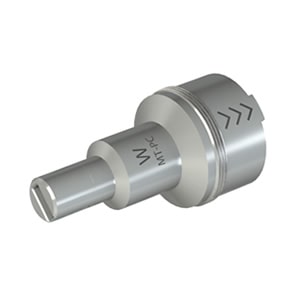

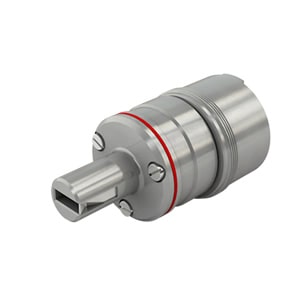

MNT-MT-PC-R
for inspection of fibers in MT ferrules, PC endface. Tip for Manta+V2.

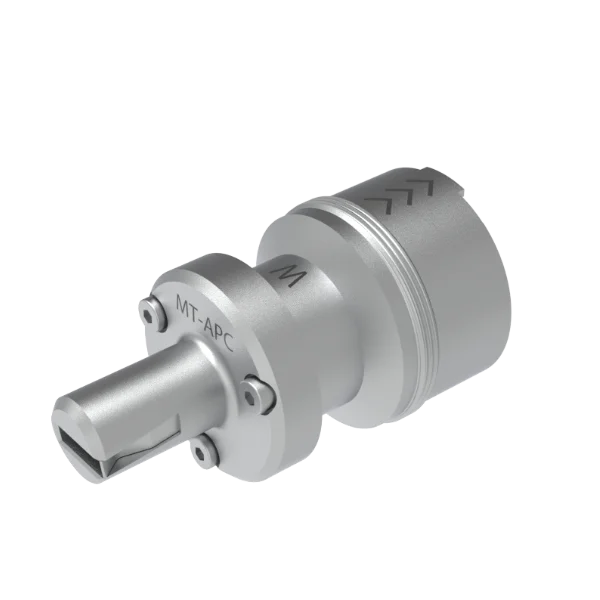

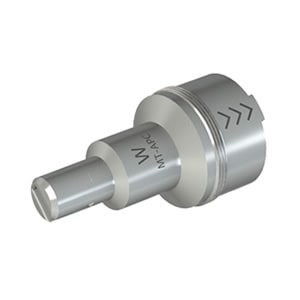

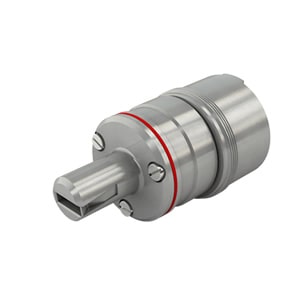

MNT-MT-APC-R
for inspection of fibers in MT ferrules, APC endface. Tip for Manta+V2.

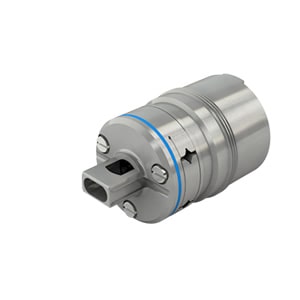

MNT-MPO-PC-F-S
for inspection of the whole ferrule (including fibers and guide holes) in MTP®/MPO connectors, PC endface, bulkhead side (in adapters). Tip for Manta+V2.

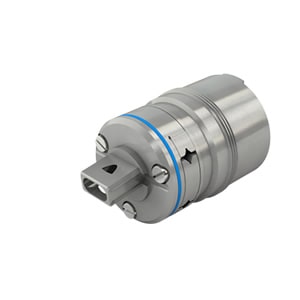

MNT-MPO-APC-F-S
for inspection of the whole ferrule (including fibers and guide holes) in MTP®/MPO connectors, APC endface, bulkhead side (in adapters). Tip for Manta+V2.

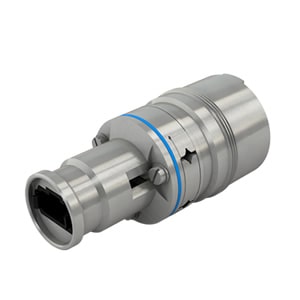

MNT-MPO-PC-M-S
for inspection of the whole ferrule (including fibers and guide holes) in MTP®/MPO connectors, PC endface, patch cord side. Tip for Manta+V2.

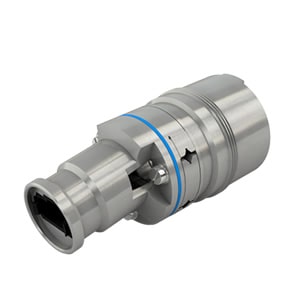

MNT-MPO-APC-M-S
for inspection of the whole ferrule (including fibers and guide holes) in MTP®/MPO connectors, APC endface, patch cord side. Tip for Manta+V2.

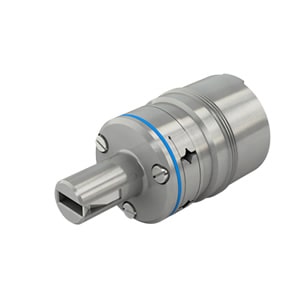

MNT-MT-PC-S
for inspection of the whole ferrule (including fibers and guide holes) in MT ferrules, PC endface. Tip for Manta+V2.

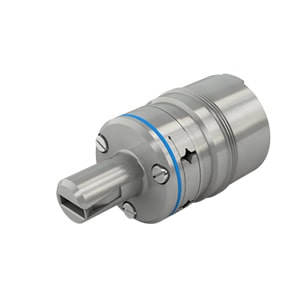

MNT-MT-APC-S
for inspection of the whole ferrule (including fibers and guide holes) in MT ferrules, APC endface. Tip for Manta+V2.

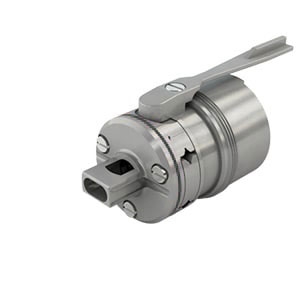

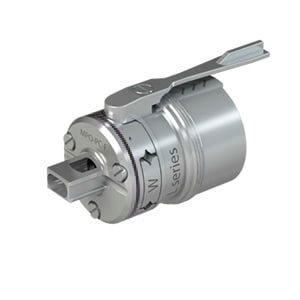

MNT-MPO-PC-F-L
for inspection of fibers and guide holes in MTP®/MPO connectors, PC endface, bulkhead side (in adapters). Tip for Manta+V2.

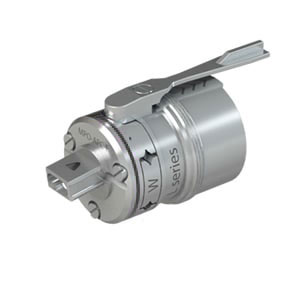

MNT-MPO-APC-F-L
for inspection of fibers and guide holes in MTP®/MPO connectors, APC endface, bulkhead side (in adapters). Tip for Manta+V2.

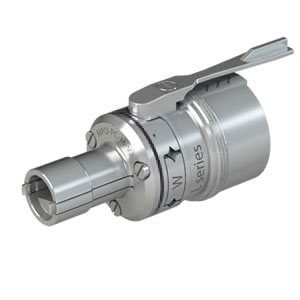

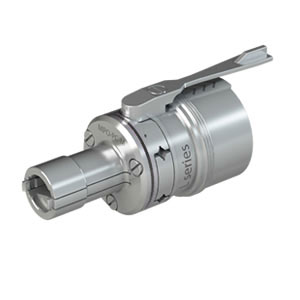

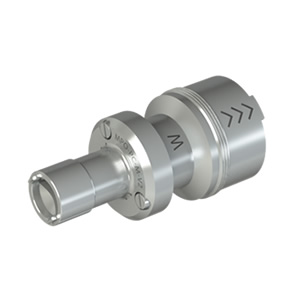

MNT-MPO-PC-M-V2-L
for inspection of fibers and guide holes in MTP®/MPO connectors, PC endface, patch cord side. Tip for Manta+V2.

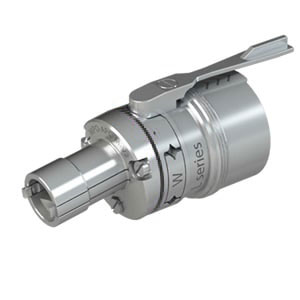

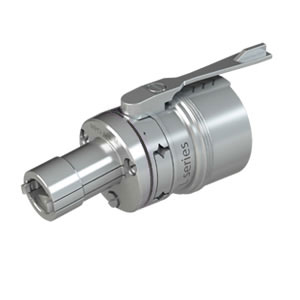

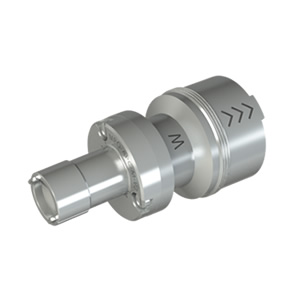

MNT-MPO-APC-M-V2-L
for inspection of fibers and guide holes in MTP®/MPO connectors, APC endface, patch cord side. Tip for Manta+V2.

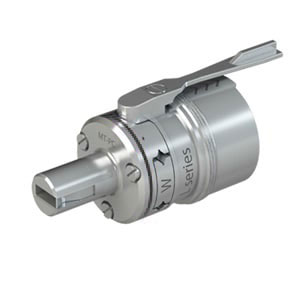

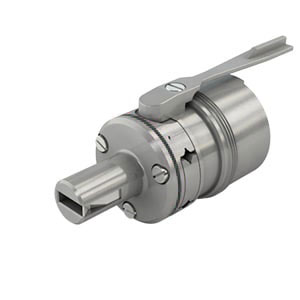

MNT-MT-PC-L
for inspection of fibers and guide holes in MT ferrules, PC endface. Tip for Manta+V2.

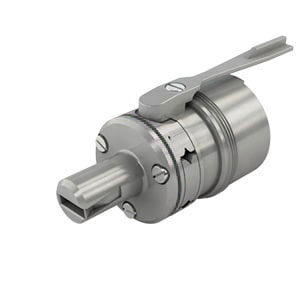

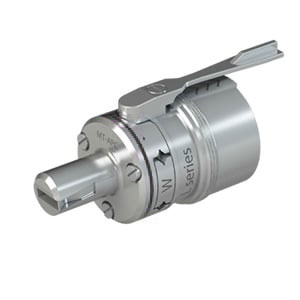

MNT-MT-APC-L
for inspection of fibers and guide holes in MT ferrules, APC endface. Tip for Manta+V2.
MNT-MINI-AVIM/APC-M
for inspection of Mini-Avim APC connectors

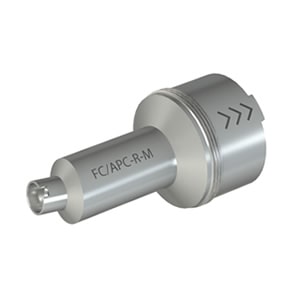

MNT-FC/APC-R-M
for inspection of FC APC connectors with narrow key

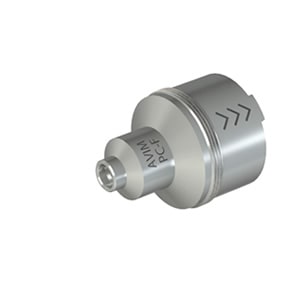

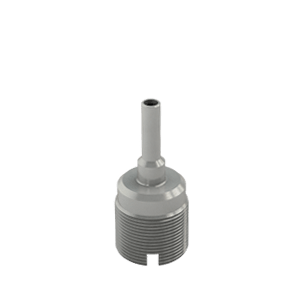

MNT-AVIM/PC-F
for inspection of Avim PC connectors in adapters

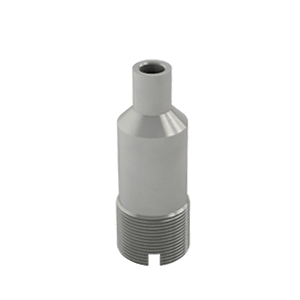

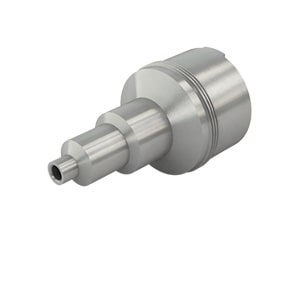

MNT-3.2/SMA-M
for SMA connectors with 3.2 mm ferrule and FP end face

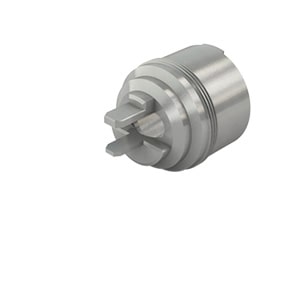

MNT-E2000/PC-F
for inspection of E2000™/PC connectors in adapters*
* The current software supports visual inspection only, without Pass/Fail analysis

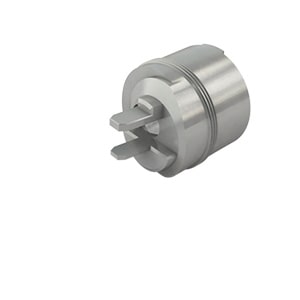

MNT-E2000/APC-F
for inspection of the E2000™/APC connectors in adapters*
* The current software supports visual inspection only, without Pass/Fail analysis

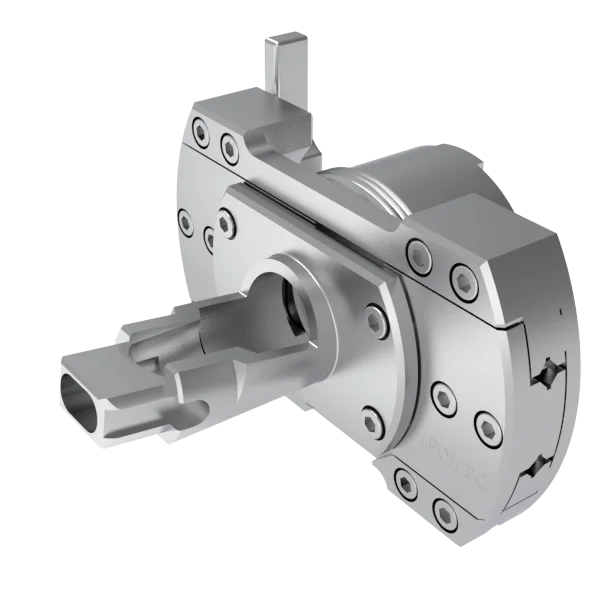

MNT-MPO-APC-F-H
for inspection of fibers and guide holes in Senko IP MPO/APC single-mode and multi-mode connectors in adapters; can be also used for some other MPO patchcords in patch panels. Tip for Manta+V2.

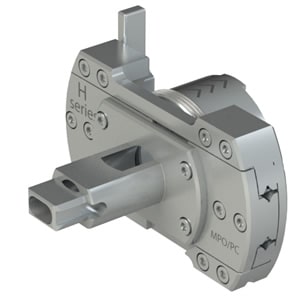

MNT-MPO-PC-F-H
for inspection of fibers and guide holes in MPO/PC connectors in patch panels, incl. Senko IP MPO/PC single-mode and multi-mode connectors in adapters. Tip with longer and thinner nose. Tip for Manta+V2.
MNT-W-MPO-PC-F-H
for inspection of fibers and guide holes in MPO/PC connectors in patch panels, incl. Senko IP MPO/PC single-mode and multi-mode connectors in adapters. Tip with longer and thinner nose. Tip for Manta HM and Manta W+.

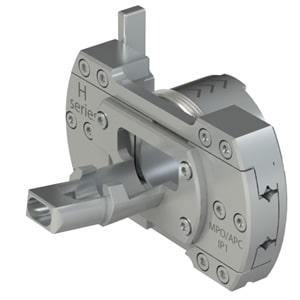

MNT-MPO-APC-F-IP1-H
for inspection of fibers and guide holes in Senko IP1 MPO/APC single-mode and multi-mode connectors in adapters (bulkhead)

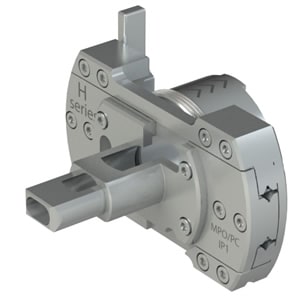

MNT-MPO-PC-F-IP1-H
for inspection of fibers and guide holes in Senko IP1 MPO/PC single-mode and multi-mode connectors in adapters (bulkhead)

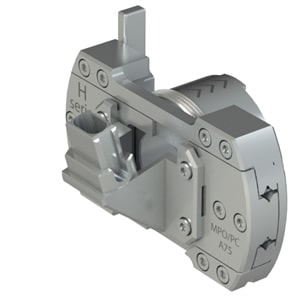

MNT-MPO-PC-A75-H
for inspection of fibers and guide holes in QSFP transceivers with MPO/PC interface. Tip for Manta+V2.
MNT-W-MPO-PC-A75-H
for inspection of fibers and guide holes in QSFP transceivers with MPO/PC interface. Tip for Manta HM and Manta W+.

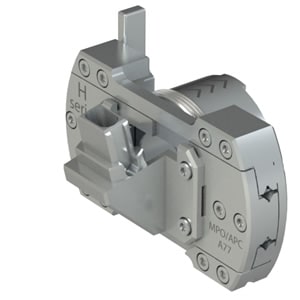

MNT-MPO-APC-A77-H
for inspection of fibers and guide holes in QSFP transceivers with MPO/APC interface. Tip for Manta+V2.
MNT-W-MPO-APC-A77-H
for inspection of fibers and guide holes in QSFP transceivers with MPO/APC interface. Tip for Manta HM and Manta W+.

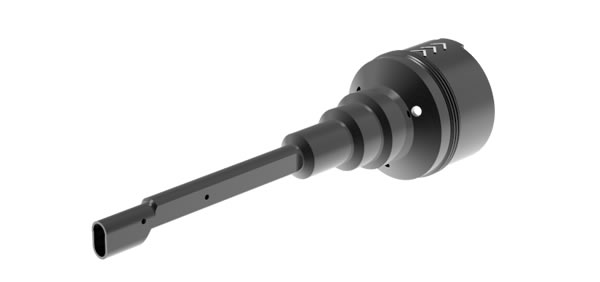

MNT-VSFF-PC-F-A
active (optical) tip for inspection of MDC and SN® connectors in adapters. Tip for Manta W+, Manta HM and Manta+V2.
Note: Switch the tip type to “Active”at the top of Inspection page in the software when using this tip.

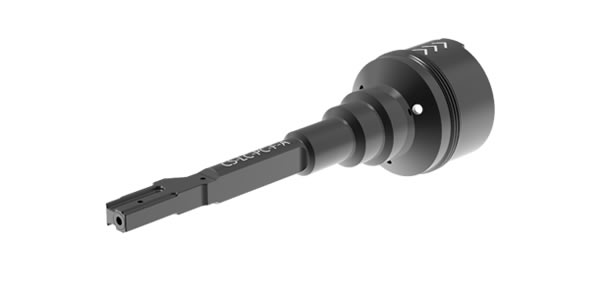

MNT-CS-LC-PC-F-A
active (optical) tip for inspection of CS connectors in HD patch panels and QSFP transceivers with LC and CS interface. Tip for Manta W+, Manta HM and Manta+V2.
Note: Switch the tip type to “Active”at the top of Inspection page in the software when using this tip.

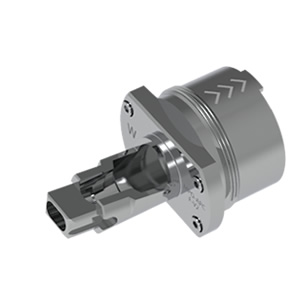

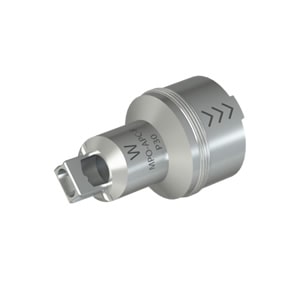

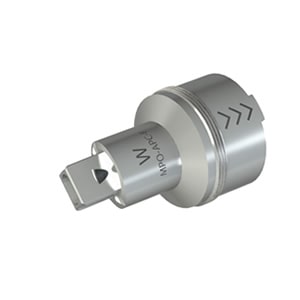

MNT-W-MPO-APC-F-P30
for inspection of fibers in MTP®/MPO connectors, APC endface, bulkhead side (in adapters), modified for 30 degrees patch panels.

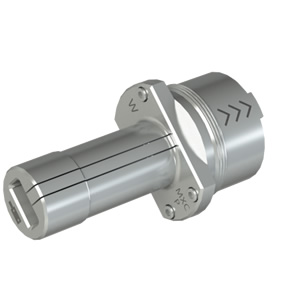

MNT-W-MXC-P
a tip for inspection of MXC plug with MT/PC ferrules

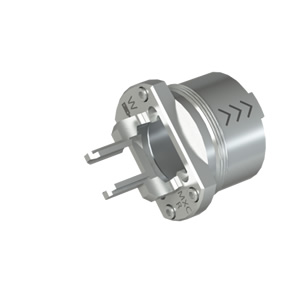

MNT-W-MXC-R
a tip for inspection of MXC receptacle with MT/PC ferrules
MNT-W-ODC-XL
for inspection of fibers and guide holes in ODC and Q-ODC connectors for SMX-Manta-W+ probe (to be coupled with a determined adapter).

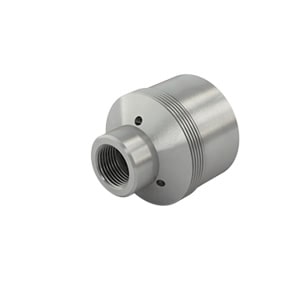

MNT-ADP-ODC2
adapter for testing ODC2 connectors plug and socket type (to be coupled with MNT-W-ODC-XL tip)

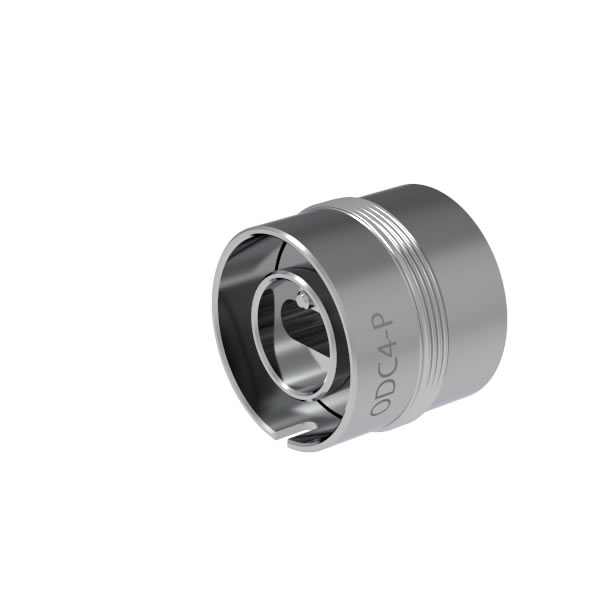

MNT-ADP-ODC4
adapter for testing ODC4 connectors plug and socket type (to be coupled with MNT-W-ODC-XL tip)

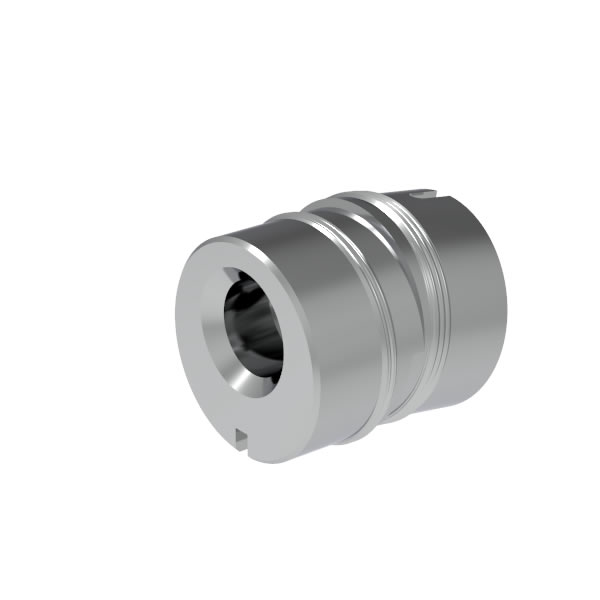

MNT-ADP-QMT-APC
adapter for testing Q-ODC12 APC connectors plug and socket type (to be coupled with MNT-W-ODC-XL tip)
MNT-ADP-QMT-PC
adapter for testing Q-ODC12 PC connectors plug and socket type (to be coupled with MNT-W-ODC-XL tip)
MNT-ADP-QODC-MINI
adapter for testing Q-ODC2 mini connectors plug and socket type (to be coupled with MNT-W-ODC-XL tip)

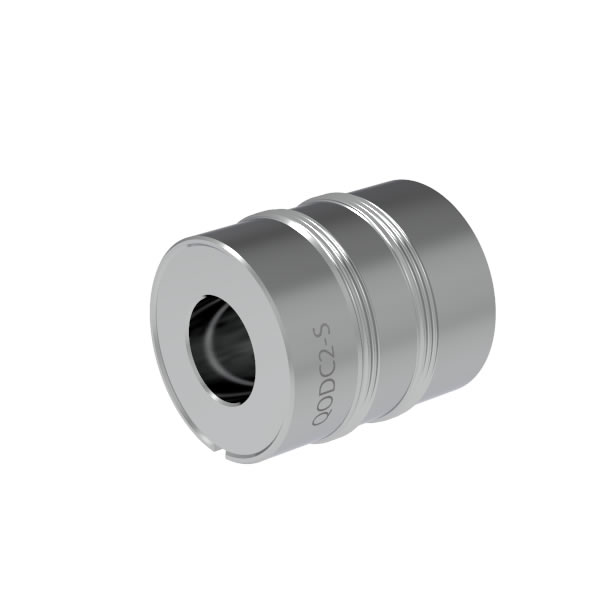

MNT-ADP-QODC2-PC
adapter for for testing QODC2 connectors plug and socket type, PC polishing (to be coupled with MNT-W-ODC-XL tip)

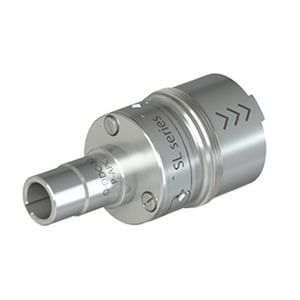

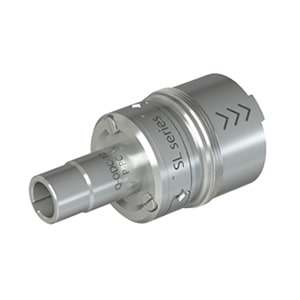

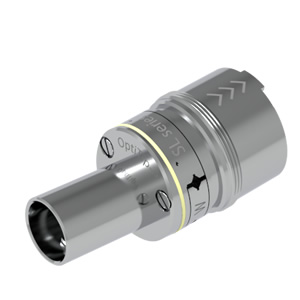

MNT-Q-ODC12-APC-P-SL
for inspection of fibers and guide holes in Q-ODC12/APC plug connectors
MNT-Q-ODC12-PC-P-SL
for inspection of fibers and guide holes in Q-ODC12/PC plug connectors

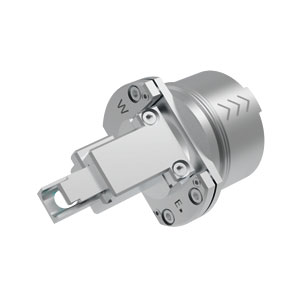

MNT-W-EB
for inspection of ferrule in 3M™ Expanded Beam Optical Connector (patch cord and bulkhead side)

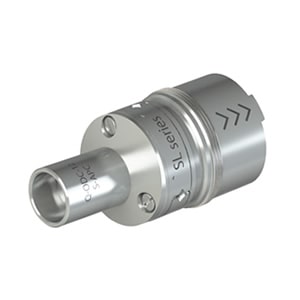

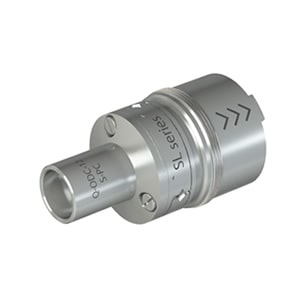

MNT-Q-ODC12-APC-S-SL
for inspection of fibers and guide holes in Q-ODC12/APC socket connectors
MNT-Q-ODC12-PC-S-SL
for inspection of fibers and guide holes in Q-ODC12/PC socket connectors

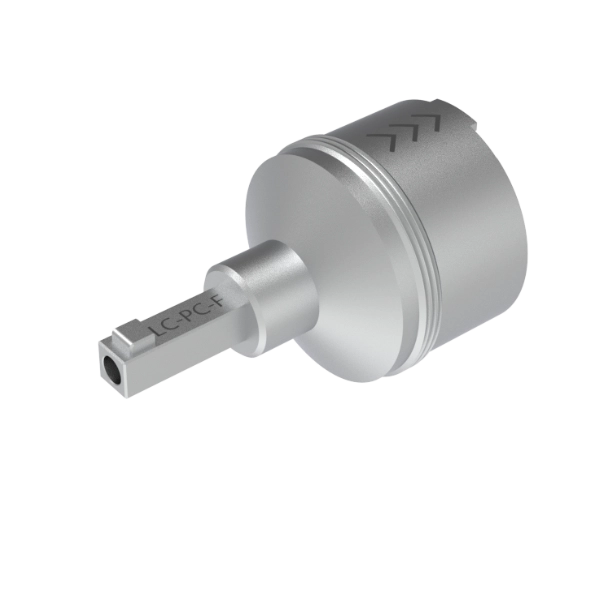

MNT-LC-PC-F
for inspection of LC/PC connectors in adapters and SFP transceivers. Tip for Manta W+, Manta HM, Manta+V2

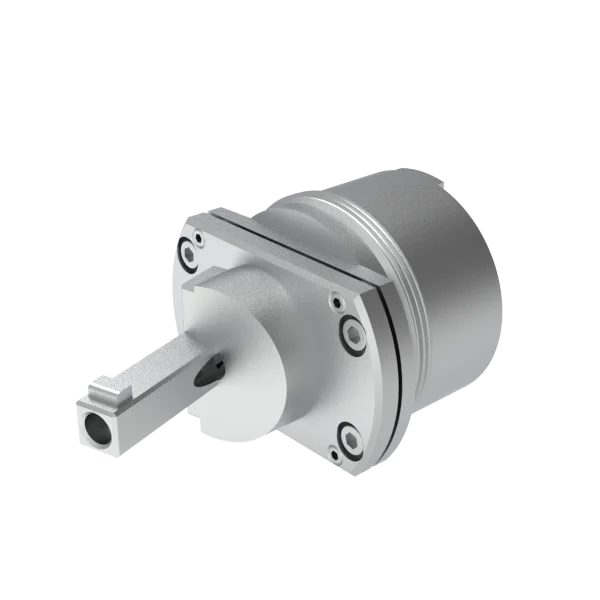

MNT-LC-APC-F
for inspection of LC/APC connectors in adapters (auto inspection is available). Tip for Manta W+, Manta HM, Manta+V2.

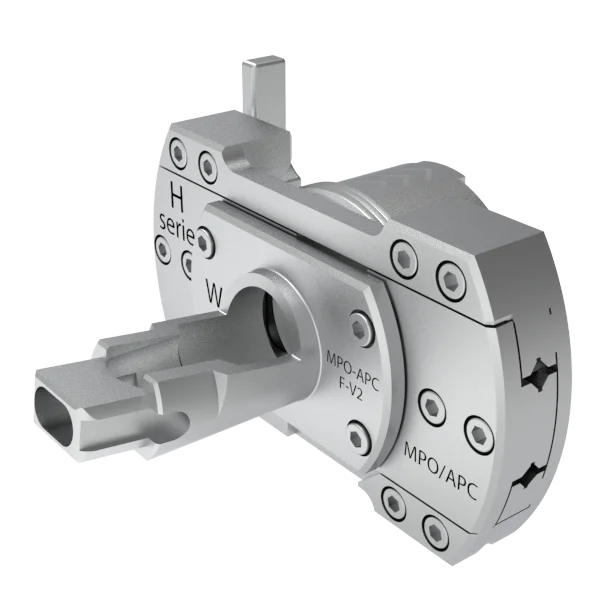

MNT-W-MPO-APC-F-H
for inspection of fibers and guide holes in Senko IP MPO APC single-mode and multi-mode connectors in adapters; can be also used for some other MPO patchcords in patch panels. Tip for Manta HM and Manta-W+ (2 fixed positions)

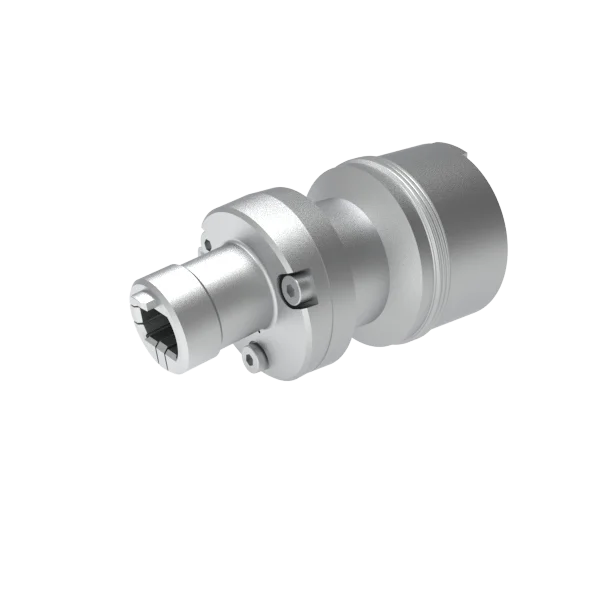

MNT-W-ECM-APC-M
for inspection of Pushlok MT APC connector

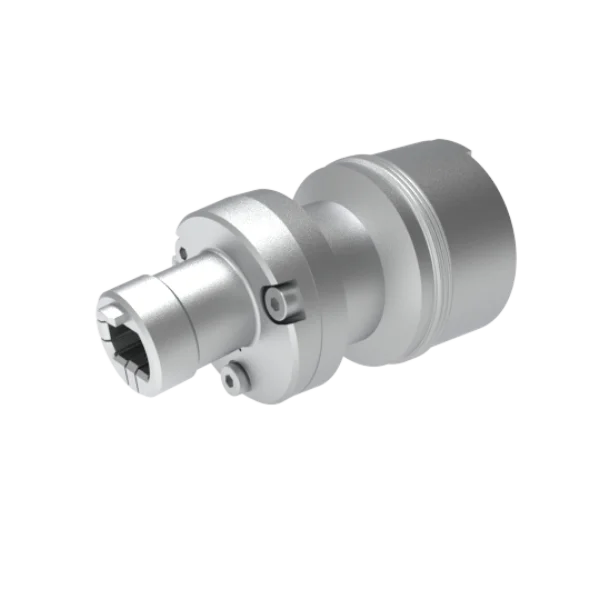

MNT-W-PUSHLOK-MT-APC-A
Universal tip for inspection of MT APC ferrule inside the PUSHLOK cassette and Pushlok-MT receptacle
MNT-PUSHLOK-SC-APC-A
Universal tip for inspection of SC APC ferrule inside the PUSHLOK cassette

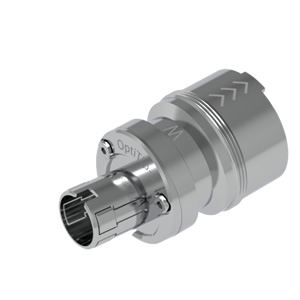

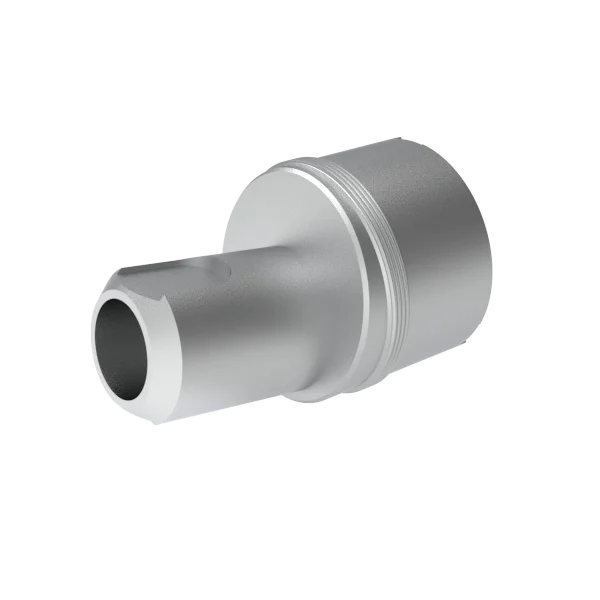

MNT-OptiTap-APC-F
for inspection of Corning Optitap connectors inside enclosures. Tip for Manta+V2, Manta W+, Manta HM.
MNT-W-VSFF/PC-M
for inspection of MDC and SN connectors (for viewing two fiber end faces simultaneously)

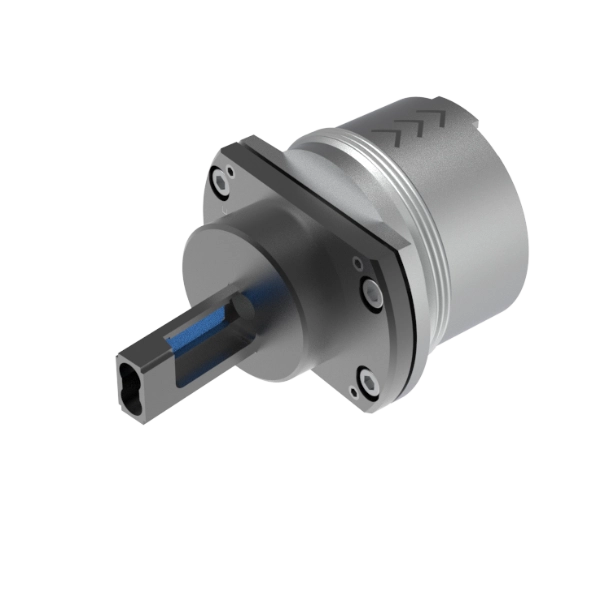

MNT-MDC-APC-F
Tip for testing MDC APC connectors in adapters

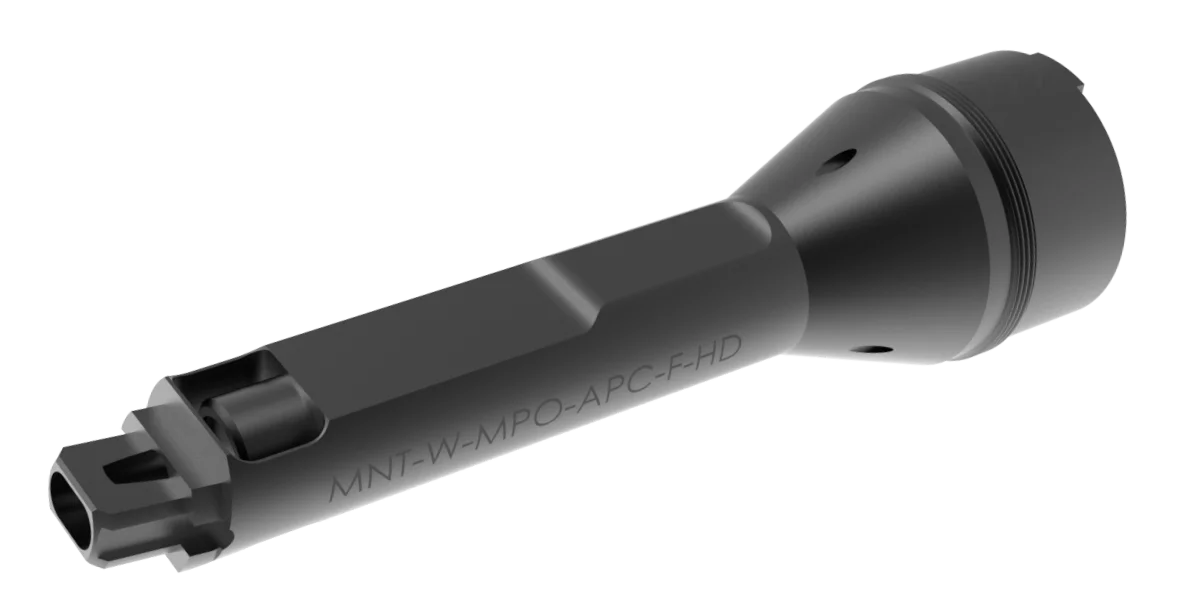

MNT-W-MPO-APC-F-HD
Long active tip for inspection of fiber end faces of MPO/APC connectors in high-density patch panels. Tip for Manta W+ and Manta HM.
MNT-W-MPO-PC-F-HD
Long active tip for inspection of fiber end faces of MPO/PC connectors in high-density patch panels. Tip for Manta W+ and Manta HM.

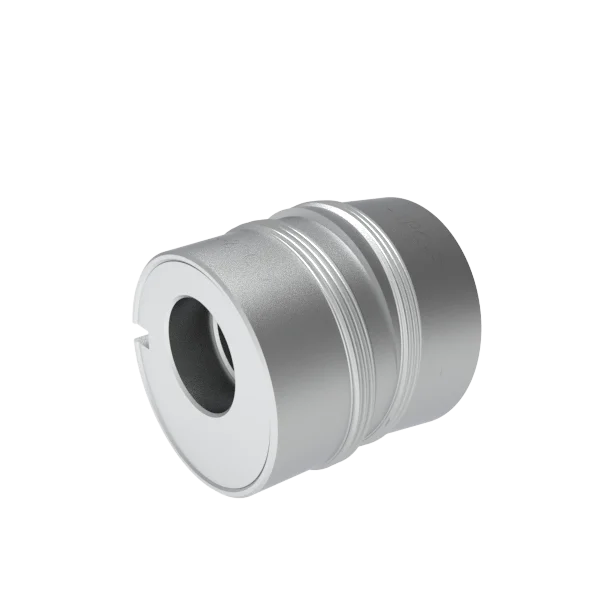

MNT-ADP-QODC2-APC
Adapter for for testing QODC2 connectors plug and socket type APC polishing (to be coupled with MNT-W-ODC-XL tip)

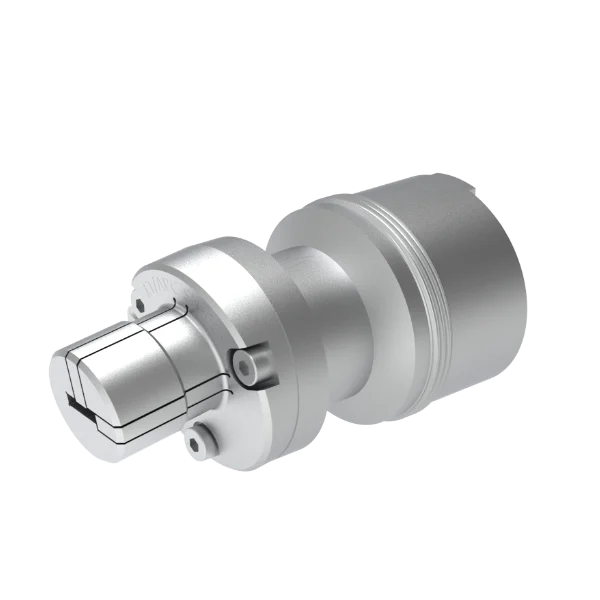

MNT-W-MT/APC-SN-FER
for inspection of SN-MT ferrules, 8F and 16F

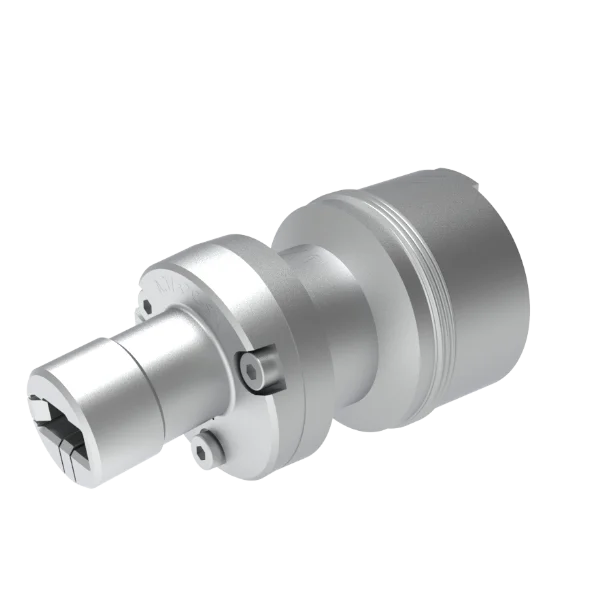

MNT-W-MT/APC-SN
for inspection of SN-MT connectors, 8F and 16F

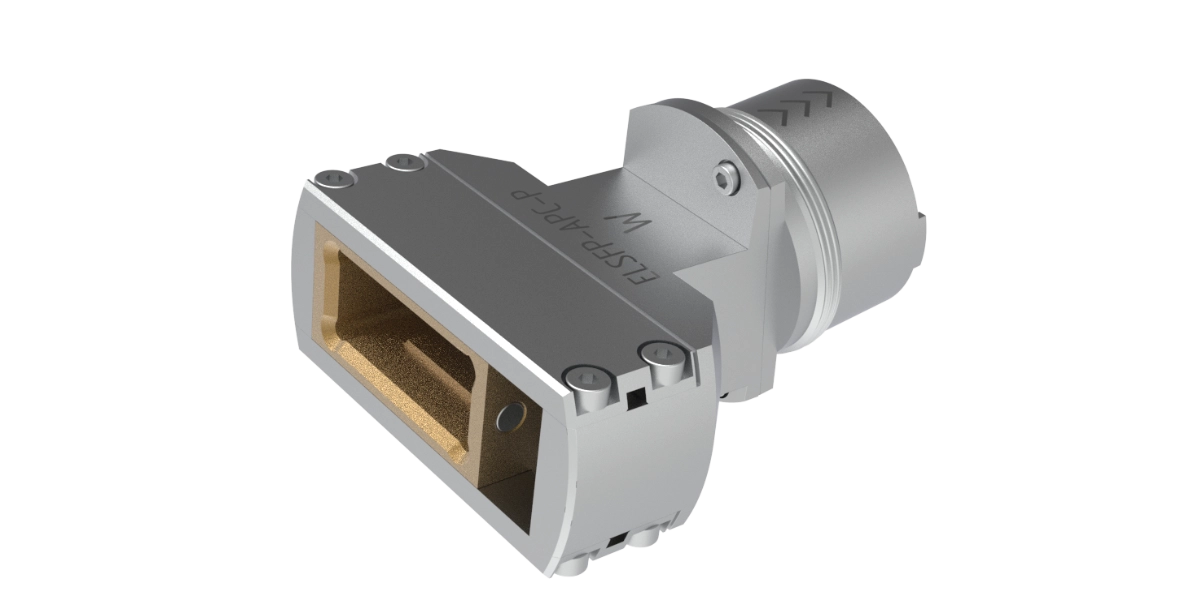

MNT-W-ELSFP-APC-H-A
for inspection of MT APC ferrules in ELSFP host connector
MNT-W-ELSFP-APC-M
for inspection of MT APC ferrules in ELSFP module connector

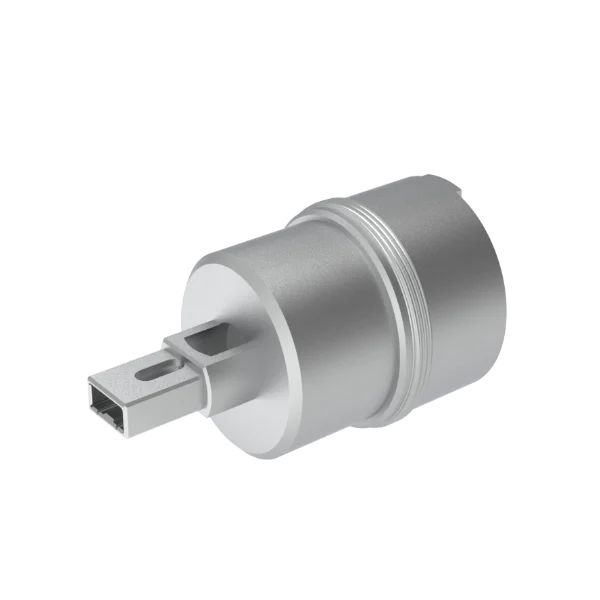

MNT-W-VITA87-PC-P
for inspection of VITA 87, VITA 66.1, and Glenair Super Nine connectors of PC type, plug.
MNT-W-VITA87-PC-S
for inspection of VITA 87, VITA 66.1, and Glenair Super Nine connectors of PC type, socket

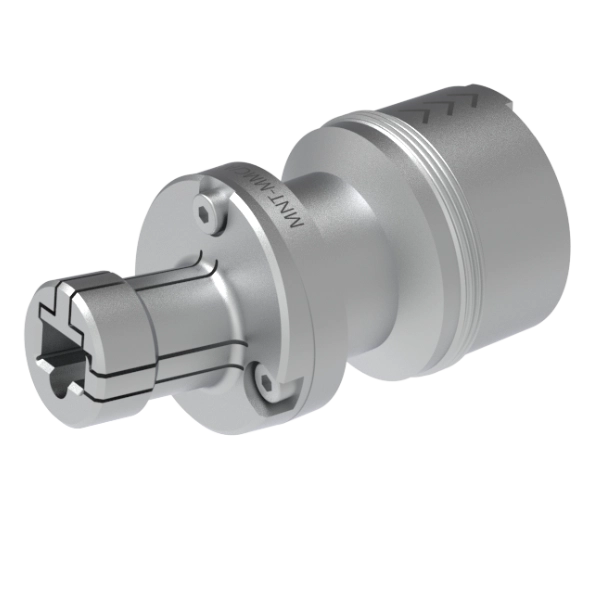

MNT-W-MMC/APC-M
for inspection of MMC/APC patch cords (12/24 and 16/32 fiber types; both male and female). Tip for Manta W+ and Manta HM.

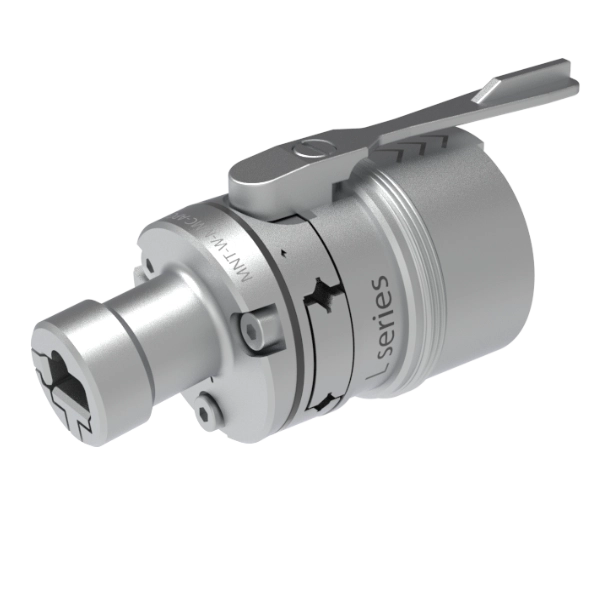

MNT-W-MMC-APC-M-L
for inspection of fibers and guide holes in MMC/APC patch cords (12/24 and 16/32 fiber types; both male and female). Tip with a lever; for Manta W+ and Manta HM.
MNT-W-MMC/APC-F-C1
for inspection of MMC/APC (both male and female) patch cords in a patch panel (no neighboring connectors). Tip for Manta W+ and Manta HM.

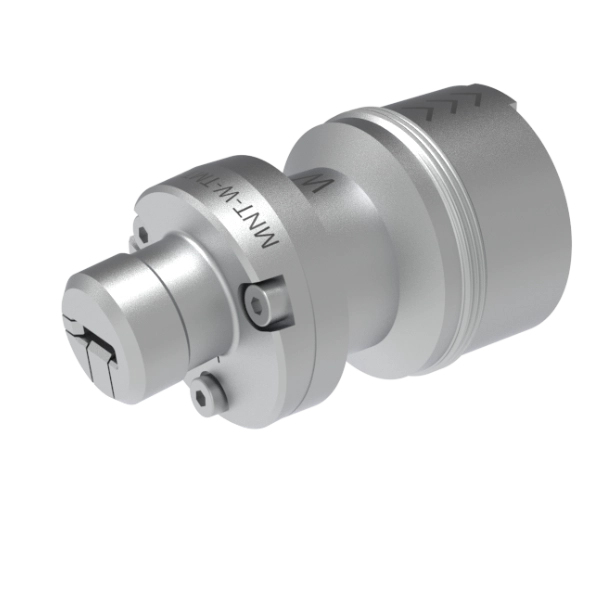

MNT-W-TMT/APC
for inspection of TMT/APC ferrules (12/24 and 16- fiber types; both male and female). Tip for Manta W+ and Manta HM.

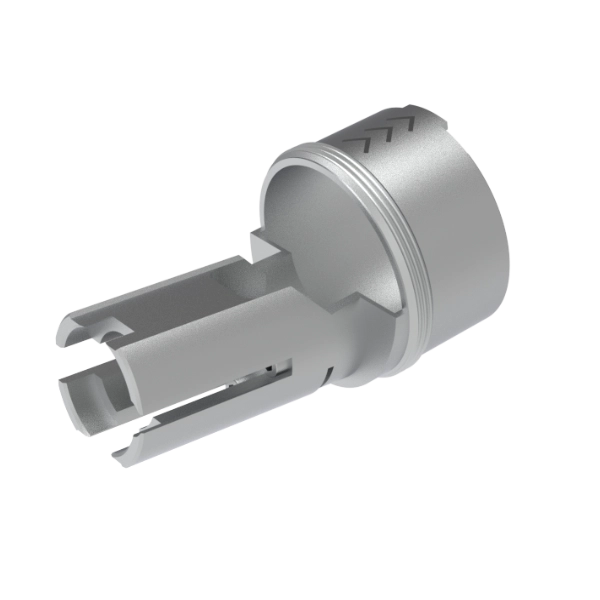

MNT-IP-SOLID-APC-F
a tip for inspection of IP-Solid SC connectors inside enclosures, APC type.

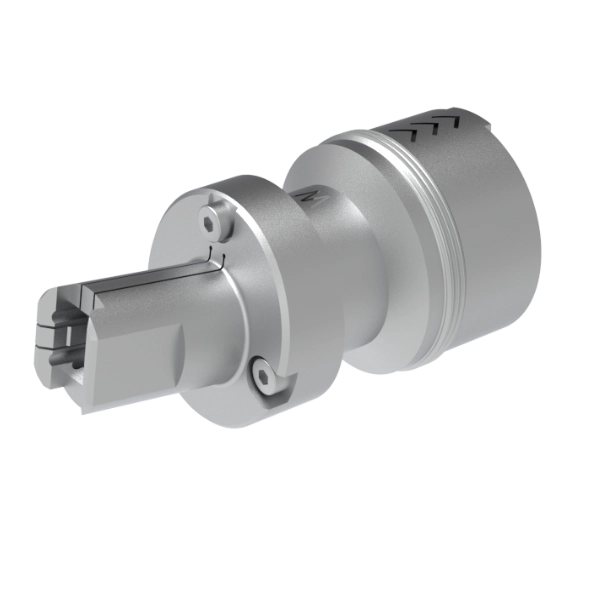

MNT-IP-SOLID-APC-M
a tip for inspection of IP-Solid SC connectors, APC type.

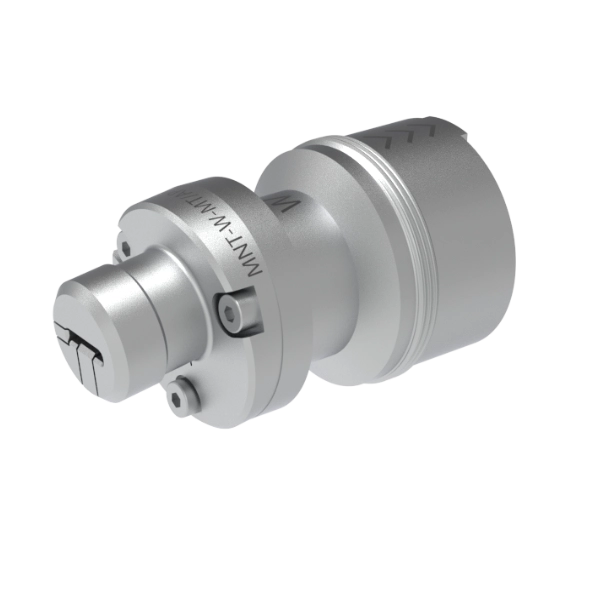

MNT-W-MT/APC-MINI
a tip for inspection of MTCOMPACT Slim & Short ferrule (1.25 x 6.4mm).

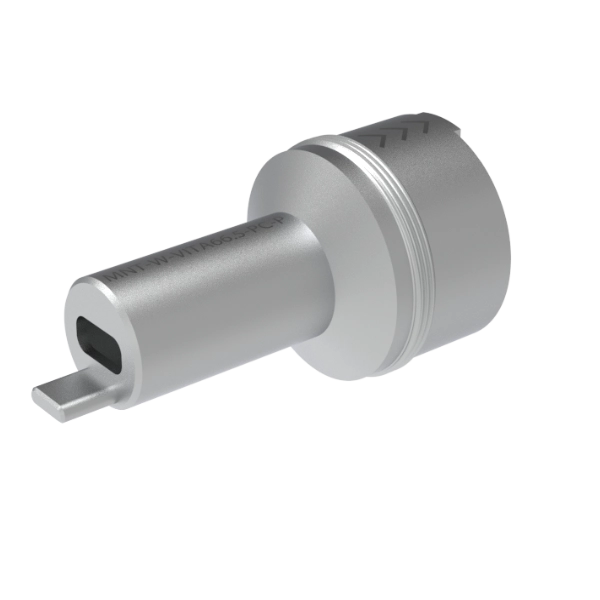

MNT-W-VITA66.5-PC-P
a tip for Smiths' Light-Conex connectors, style A and C, plug-in type.

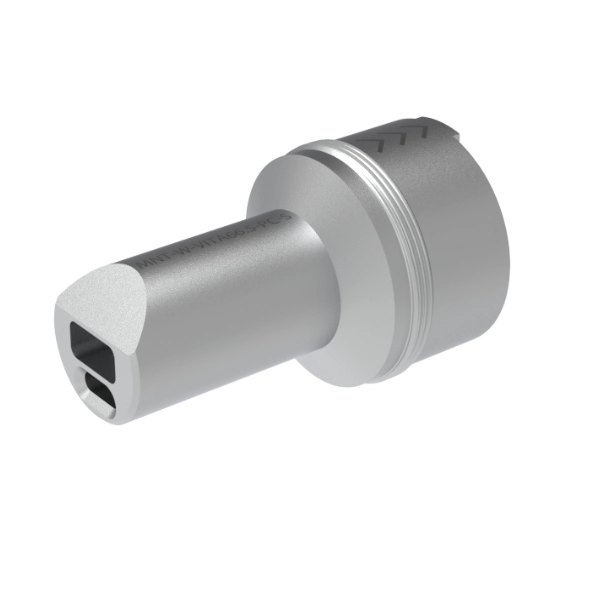

MNT-W-VITA66.5-PC-S
a tip for Smiths' Light-Conex connectors, style A and C, backplane type.

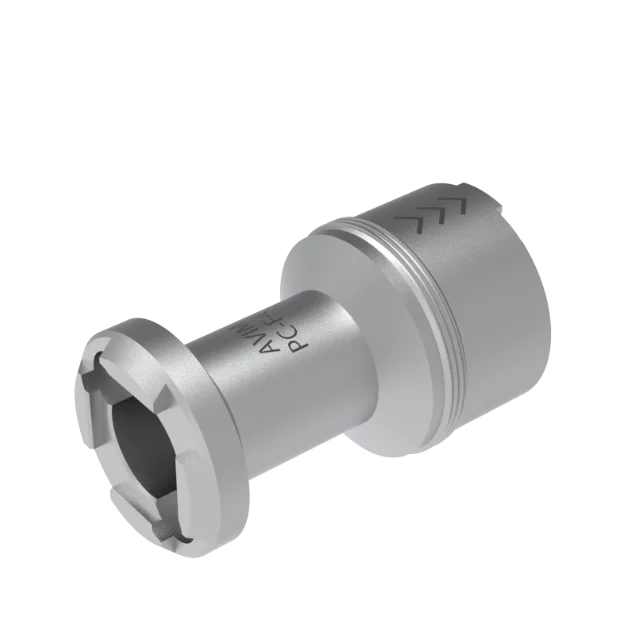

MNT-AVIM/PC-F-C
a tip for inspection of Avim PC connectors in adapters (custom request)

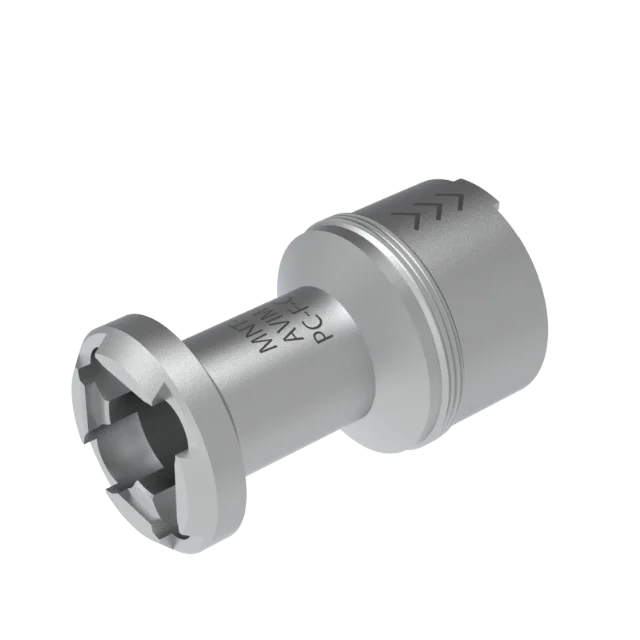

MNT-AVIM-PC-F-C1
a tip for inspection of AVIM PC connectors in adapters (custom tip with four holes for screws)

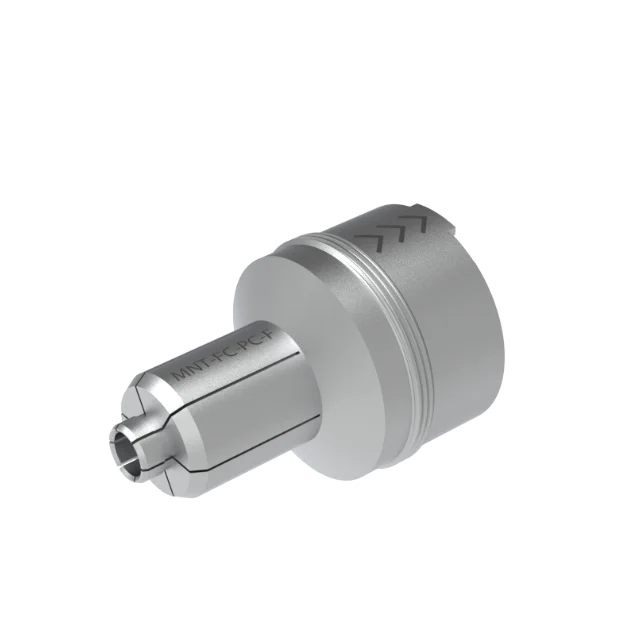

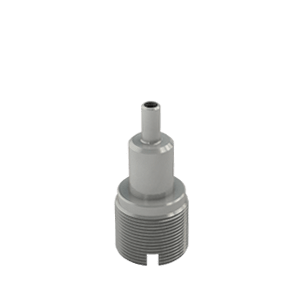

MNT-FC-PC-F
a tip for inspection of FC/PC connectors in adapters (bulkhead)
MNT-W-MMC/APC-F-A
a long active tip for inspection of MMC/APC connectors in a high-density patch panel. Tip for Manta W+ and Manta HM.

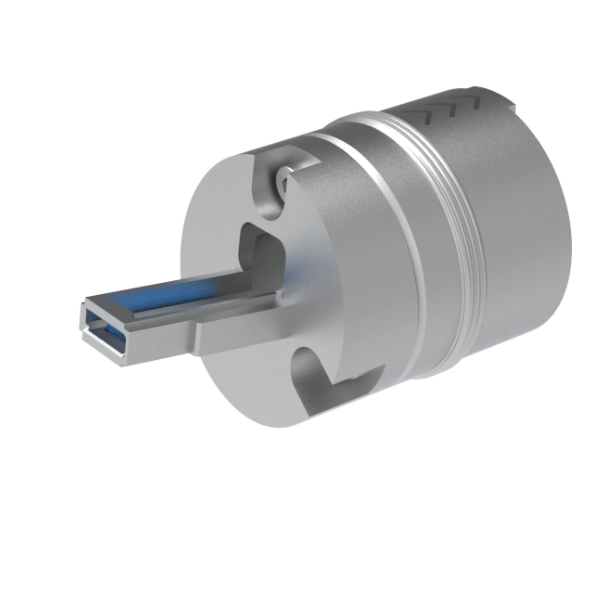

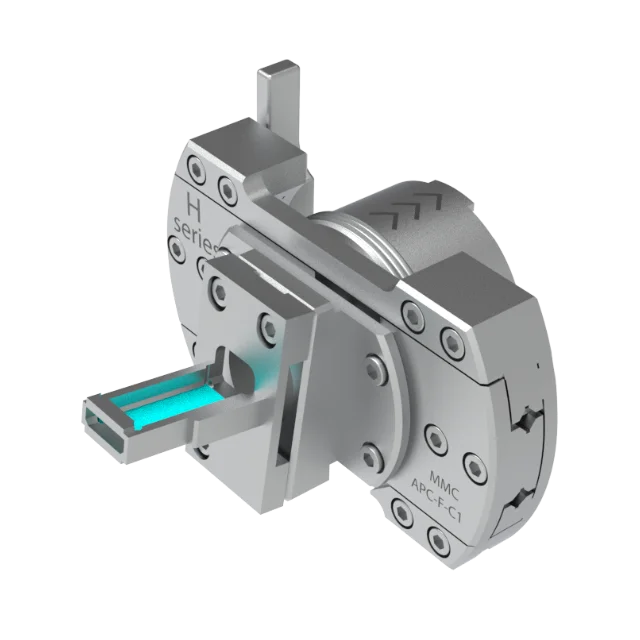

MNT-W-MMC-APC-F-C1-H
a tip for inspection of fibers and guide holes of MMC/APC connectors (12/24 and 16- 32 fiber types; both male and female) in adapters (bulkhead) with no neighbouring connectors. Tip with a lever; for Manta W+ and Manta HM.

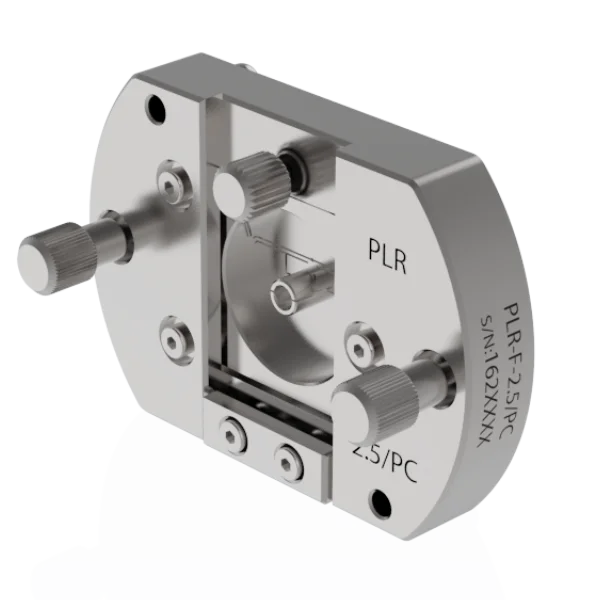

PLR-F-2.5/PC
2.5mm PC base fixture for POLARIS. To be used with PLR-KA-SC and PLR-KA-FC key adapters.

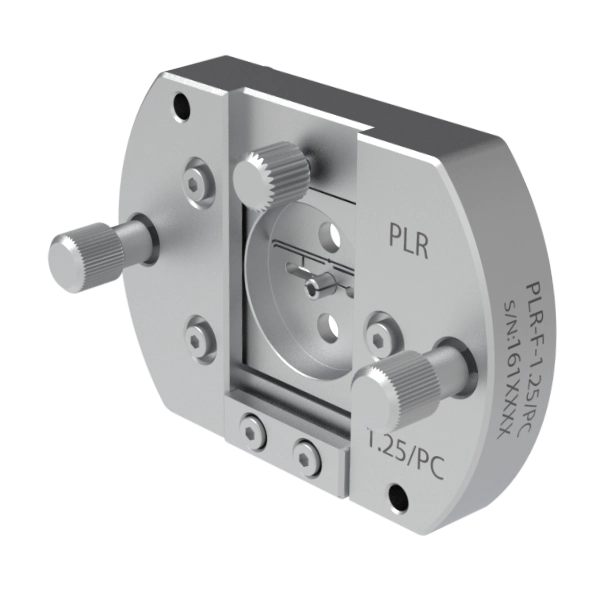

PLR-F-1.25/PC
1.25mm PC base fixture for POLARIS. Can be used with PLR-KA-LC key adapter (optional)

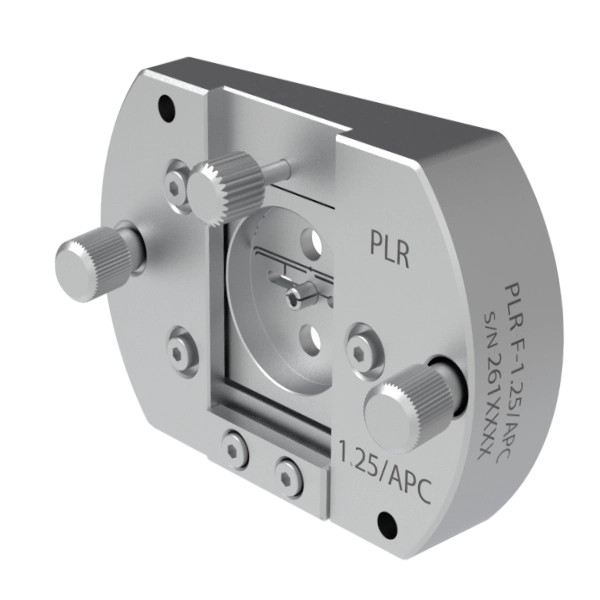

PLR-F-1.25/APC
1.25mm APC base fixture for POLARIS. To be used with PLR-KA-LC key adapter.

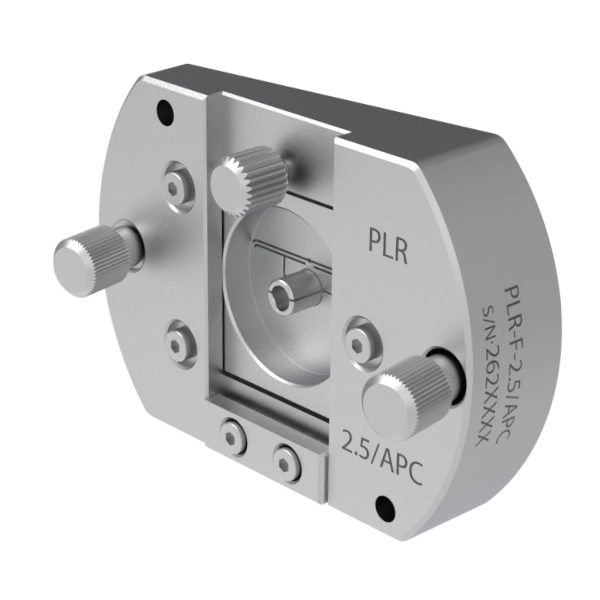

PLR-F-2.5/APC
2.5mm APC base fixture for POLARIS. To be used with PLR-KA-SC and PLR-KA-FC key adapters.

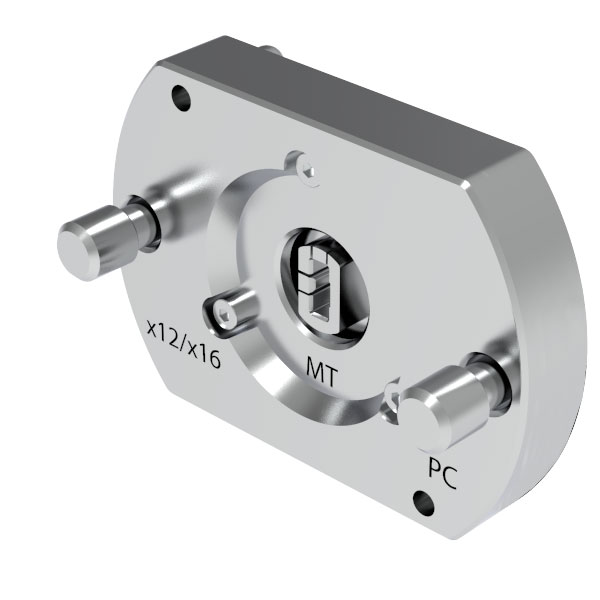

PLR-F-MT/PC
Fixture for 12/72-fiber and 16/32-fiber MT/PC ferrules.

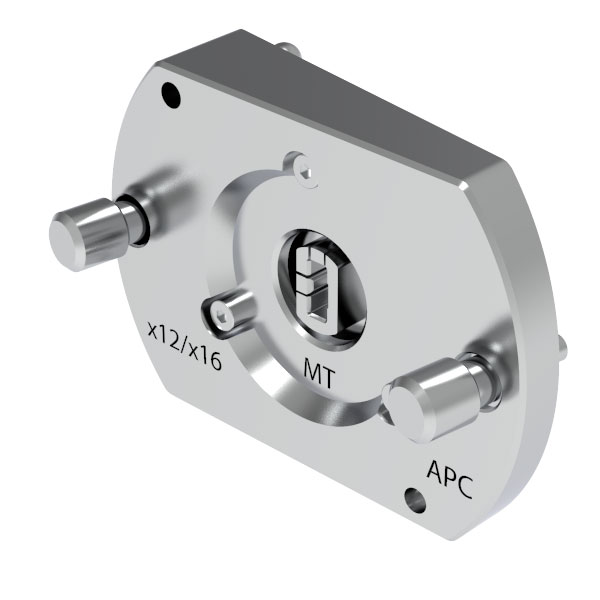

PLR-F-MT/APC
Fixture for 12/72-fiber and 16/32-fiber MT/APC ferrules.

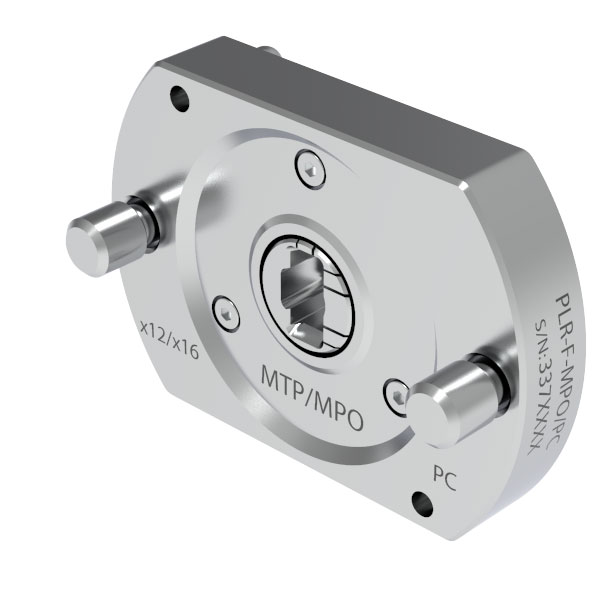

PLR-F-MPO/PC
Fixture for MPO/PC patch cords (both male and female, 12/72-fiber and 16/32-fiber types)

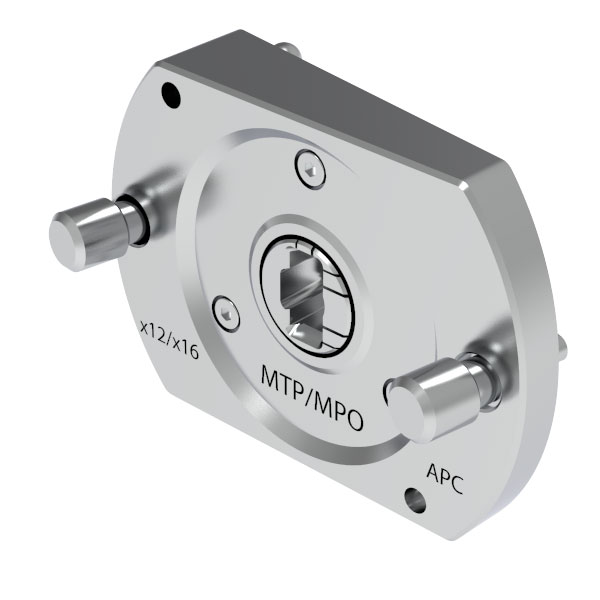

PLR-F-MPO/APC
Fixture for MPO/APC patch cords (both male and female, 12/72-fiber and 16/32-fiber types)
PLR-KA-FC
Key adapter for testing FC connectors with POLARIS and POLARIS X.
PLR-KA-LC
Key adapter for testing LC connectors with POLARIS and POLARIS X.

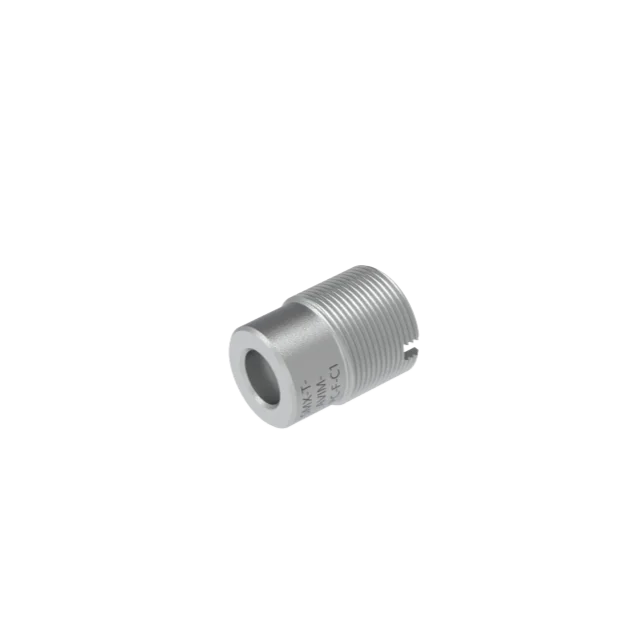

SMX-T-AVIM-PC-F-C1
a tip for inspection of Avim PC connectors in adapters (bulkhead). Requires MNT-ADP adapter if used with Manta probes.

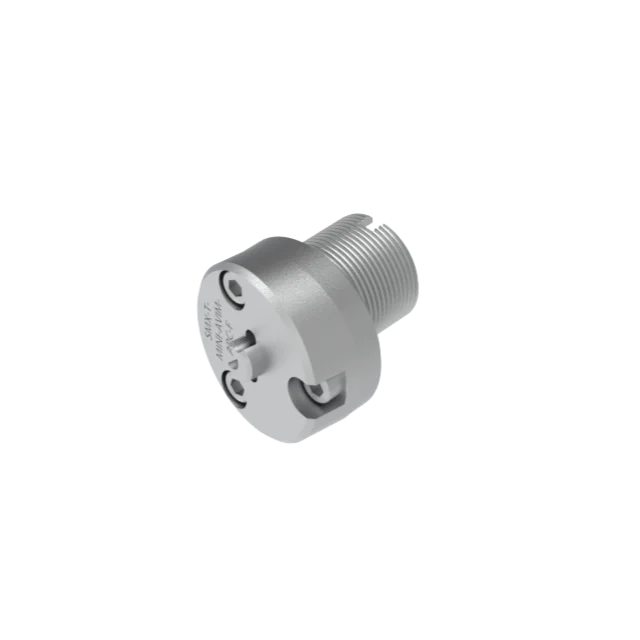

SMX-T-MINI-AVIM-APC-F
a tip for inspection of Mini-Avim APC connectors in adapters (bulkhead). Requires MNT-ADP adapter if used with Manta probes

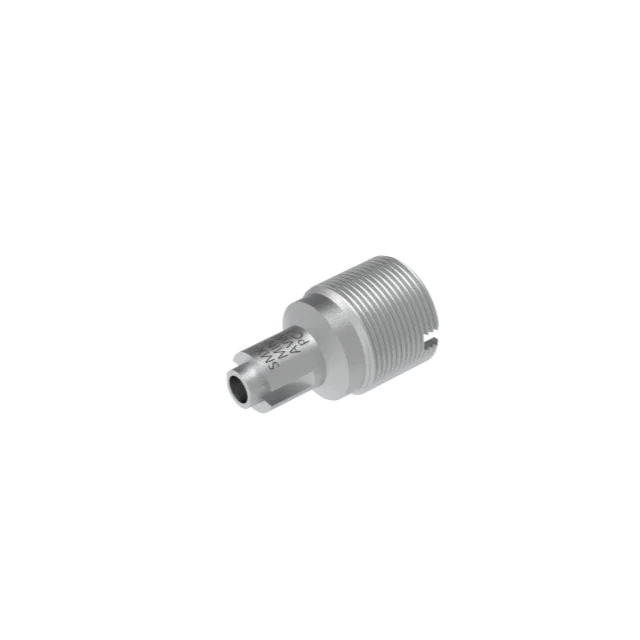

SMX-T-MINI-AVIM-PC-F
a tip for inspection of Mini-Avim PC connectors in adapters (bulkhead). Requires MNT-ADP adapter if used with Manta probes.

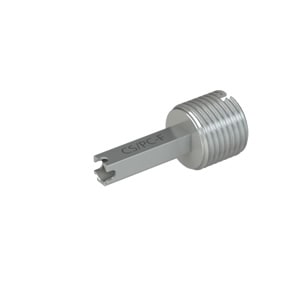

SMX-T-CS-PC-F
for inspection of CS®/PC connectors in adapters (not suitable for HD patch panels). Tip for SMX-Scopio-B, Manta W+, Manta HM, Manta+V2.

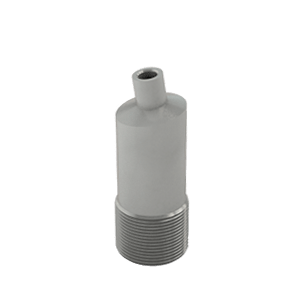

SMX-T-2.5/APC-M
for inspection of 2.5/APC type connectors (SC, FC, ST, E2000™, ELIO etc.) connectors and termini.
Requires MNT-ADP adapter if used with Manta probes.

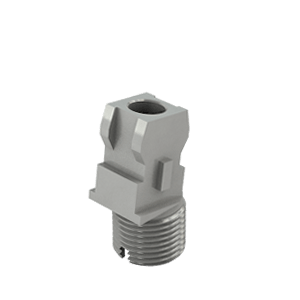

SMX-T-SC/APC-F
for inspection of the SC/APC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.

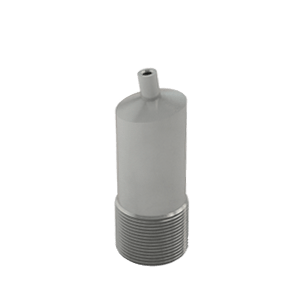

SMX-T-1.25/APC-M
for inspection of 1.25/APC type connectors (LC, MU, CS®, SN®, MDC, etc.) and termini (ARINC).
Requires MNT-ADP adapter if used with Manta probes.

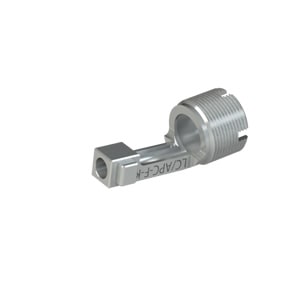

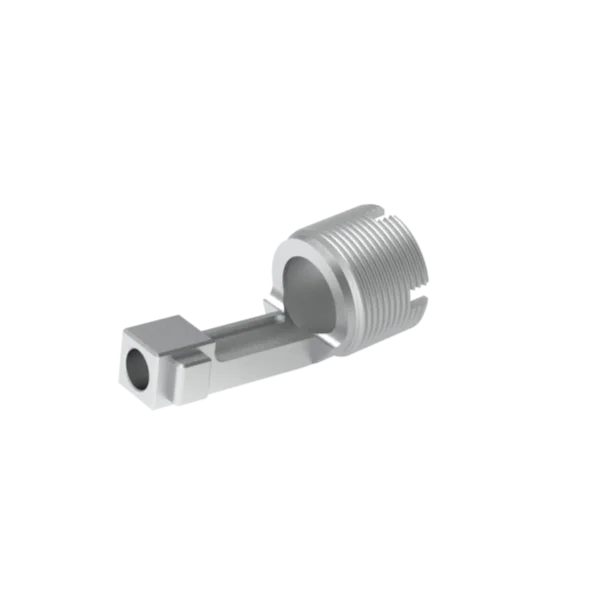

SMX-T-LC/APC-F-K
for inspection of LC/APC connectors in adapters (improved design with a key to open connector shutter). Only visual inspection available
Requires MNT-ADP adapter if used with Manta probes.

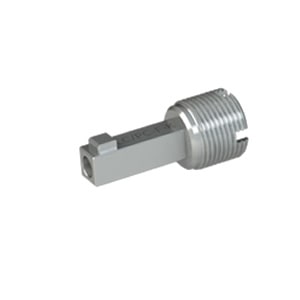

SMX-T-LC/PC-F-K
for inspection of the LC/PC connectors in adapters and SFP transceivers (improved design with a key to open connector shutter).
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-MTP/MPO/APC-U
for inspection of MTP®/MPO APC connectors (both genders).
Tip for SMX-Scopio-B (visual inspection only).

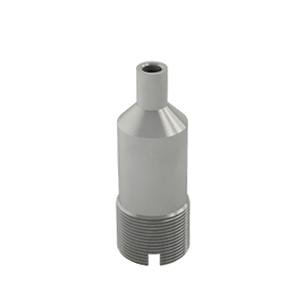

SMX-T-2.5/PC-M
for inspection of 2.5 PC and UPC type (SC, FC, ST, E2000™, ELIO etc.) connectors and termini.
Requires MNT-ADP adapter if used with Manta probes.

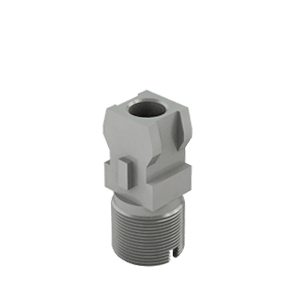

SMX-T-SC/PC-F
for inspection of the SC/PC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-FC/PC-F
for inspection of the FC/PC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.

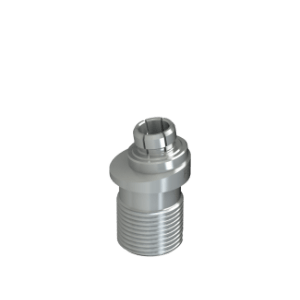

SMX-T-FC/APC-F-V2
engraved as FC/AF-V2
for inspection of the FC/APC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.

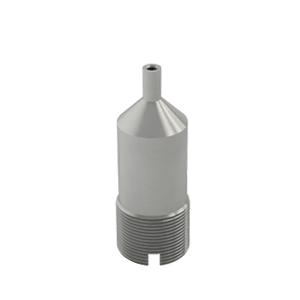

SMX-T-1.25/PC-M
for inspection of 1.25 PC and UPC type connectors (LC, MU, CS®, SN®, MDC, etc.) and termini (ARINC).
Requires MNT-ADP adapter if used with Manta probes.

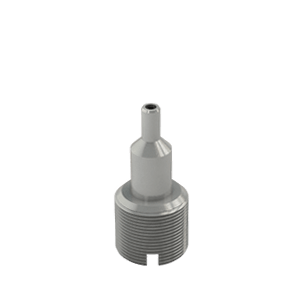

SMX-T-ST/PC-F
for inspection of the ST/PC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.

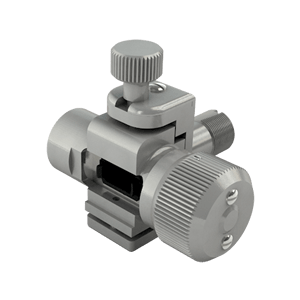

SMX-T-MTP/MPO/PC-U
for inspection of MTP®/MPO PC connectors (both genders).
Tip for SMX-Scopio-B (visual inspection only).

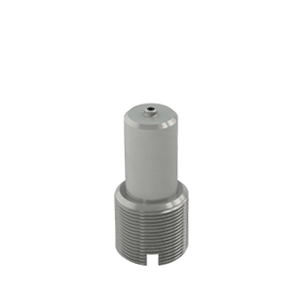

SMX-T-MIL-1.6-S
for inspection of 29504/5 termini (socket). These are most typically used in MIL-DTL-38999 connectors.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-1.6/PC-F
for inspection of MIL-DTL-38999 connectors (with 3.5mm distance from mating face to socket termini).
Requires MNT-ADP adapter if used with Manta probes.

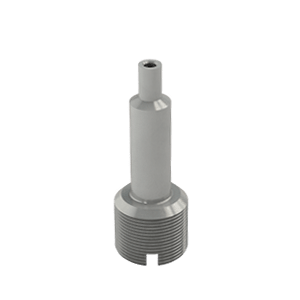

SMX-T-MIL-1.6-P
for inspection of 29504/4 termini (pin), most typically associated with 38999 style connectors.
Requires MNT-ADP adapter if used with Manta probes.

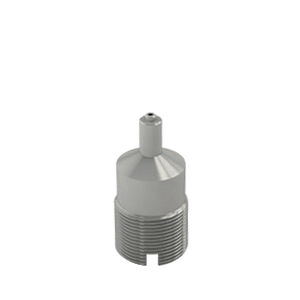

SMX-T-MIL-1.25-S
for inspection of 29504/18 termini in socket connectors, most typically associated with MIL-DTL-38999 style connectors.
Requires MNT-ADP adapter if used with Manta probes.

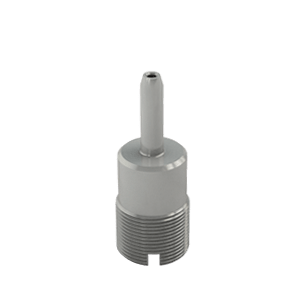

SMX-T-MIL-1.25-P
for inspection of 29504/18 termini in plug connectors, most typically associated with MIL-DTL-38999 style connectors.
Requires MNT-ADP adapter if used with Manta probes.

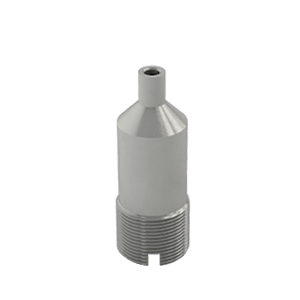

SMX-T-MIL-2.0-P
for inspection of 29504/14 termini (pin), most typically associated with MIL-PRF-28876 style connectors.
Requires MNT-ADP adapter if used with Manta probes.

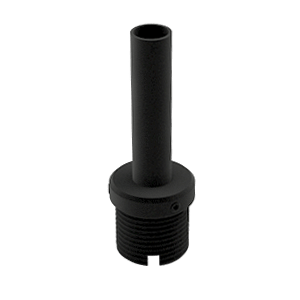

SMX-T-E2000/PC-F
for inspection of the E2000™ PC, UPC and APC connectors in adapters*
*Fits only digital Scopio probes with serial numbers starting with SE and SB. The current software supports visual inspection only, without Pass/Fail analysis.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-DIN/PC-F
for inspection of the DIN/PC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-AVIM/PC-F
for inspection of the AVIM/PC connectors in adapters.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-3.2/SMA-M
for inspection of the SMA connectors with 3.2 mm ferrule and FP end face.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-3.2/SMA-E-M
A Tip with shifted center for inspection of multi-fiber SMA connectors with 3.2 mm ferrule and FP end face.
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-MIL-2.5-S-ELIO
ELIO female tip with a special adapter (for inspection of ELIO female recessed adapters).
Requires MNT-ADP adapter if used with Manta probes.
SMX-T-MIL-2.0-S
for inspection of 29504/15 termini (socket). These are most typically associated with MIL-PRF-28876 style connectors.
Requires MNT-ADP adapter if used with Manta probes.
For single-fiber inspection, Polaris is compatible with MAX fixtures used with Sumix interferometers.
Suitable fixtures can be chosen at the Interferometer Accessories page.
Can't find the tip you need? Contact
