Design

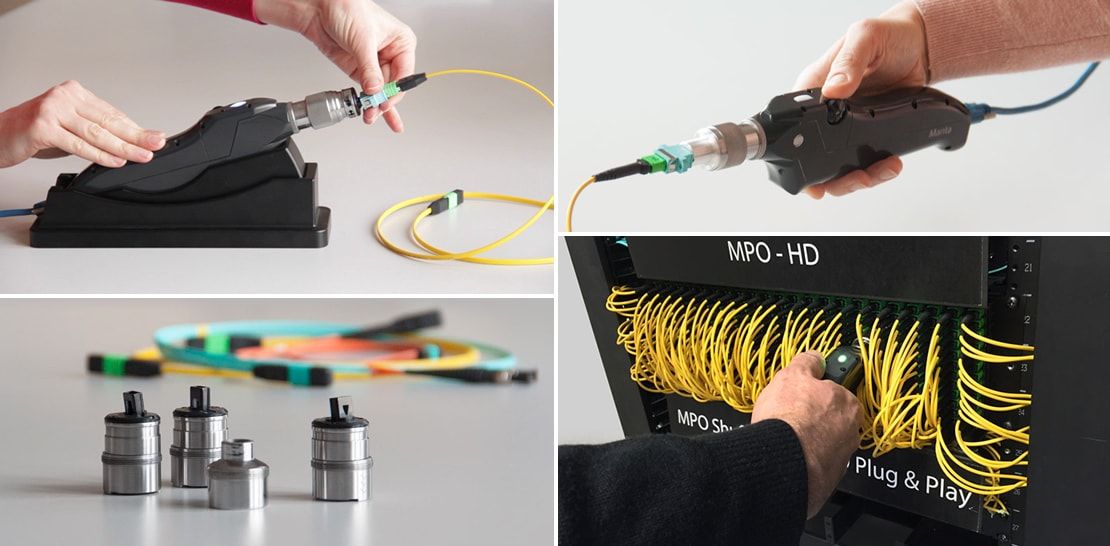

For high performance of your field technicians and production line QA engineers, you need powerful, cutting-edge microscopes that deliver the ultimate in mobility, accuracy and ease of use. Sumix probes are designed with these things in mind.

Purpose built high-quality optics

Make lab quality measurements in the field. See defects as small as 0.5 μm for SMX-Scopio-B and SMX-Scopio, 0.75 μm for SMX-Manta-W+ and SMX-Manta+ and 1 μm for SMX-Scopio-A.

Extended working distance

Easily inspect connectors in dense patch panels and hard-to-reach equipment or vehicles.

Flat housing

Flat housing prevents the probe from slipping off the work surface — it stays where you place it.

Aluminum body, stainless steel barrel

An aluminum body and stainless steel barrel ensures a durable tool.

Test button*

Inspect connectors at the push of a button. Fewer movements – less time.
* Available with SMX-Manta-W+, SMX-Manta+ and SMX-Scopio-B

Autofocus*

Fast and accurate autofocus leaves no room for operator's errors.
* Available with SMX-Manta-W+ and SMX-Manta+

Wide variety of tips

Inspect all types of single-fiber and multi-fiber optical connectors, patchcords and bulkhead, including but not limited to: MT, MPO, LC, FC, SC, E2000™, PRIZM, QSFP, ARINC, MIL-38999, ODC12, High-power SMA, Avim, mini-Avim and more. Can’t find the tip you’re looking for on our website? Just ask us

SMX-Manta-W+ Dimensions

Dimensions (H × W × L): 64 × 28 × 233 mm (2.52 × 1.1 × 9.17 inches)
Housing material: aluminum;
Barrel material: stainless steel
Weight: 435 g (0.96 lbs)

SMX-Manta+ Dimensions

Dimensions (H × W × L): 64 × 28 × 233 mm (2.52 × 1.1 × 9.17 inches)
Housing material: aluminum;
Barrel material: stainless steel
Weight: 425 g (0.94 lbs)

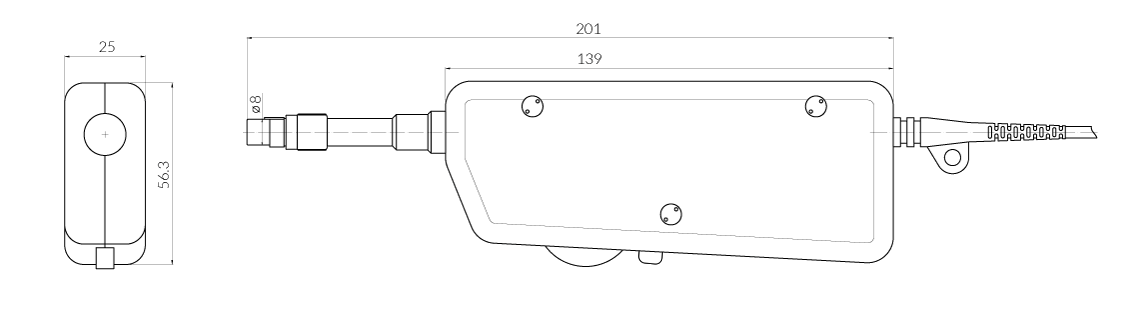

SMX-Scopio Dimensions

Dimensions (H × W × L): 56.3 × 25 × 201 mm (2.22 × 0.98 × 7.91 inches)
Housing material: aluminum;
Barrel material: stainless steel
Weight: 330 g (0.73 lbs)
